These LEDs provide a quick visual check of the state of the system.
1.3.1

Front and Rear Panel LEDs

The seven front panel LEDs
chassis. Three of these LEDs are also provided on the rear panel

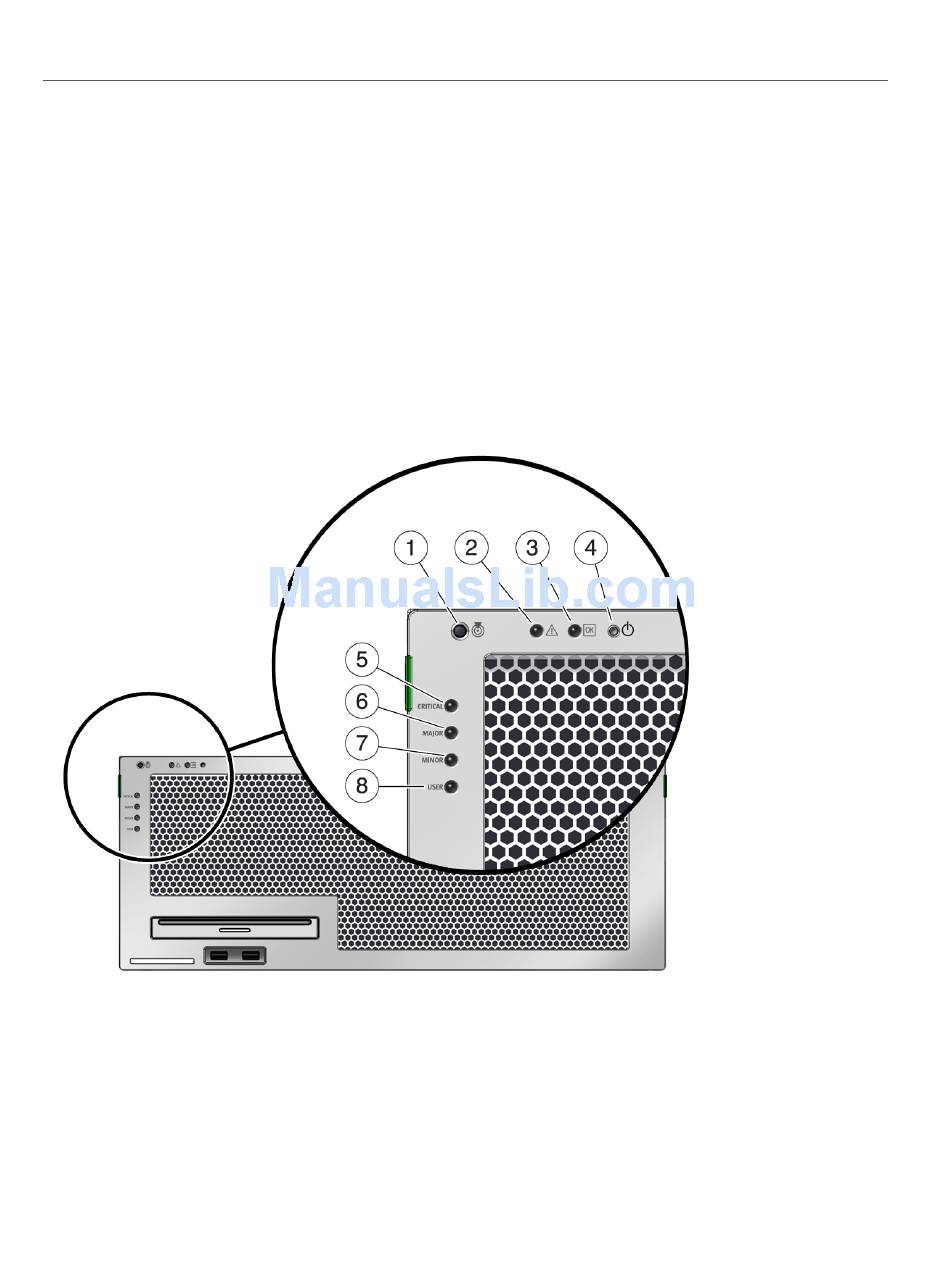

Location of the Bezel Server Status and Alarm Status Indicators
FIGURE 1-2
Figure Legend
1
Locator LED and Button
2
Fault LED
3
Activity LED
4
Power OK LED
5
User (amber) Alarm Status Indicator
6
Minor (amber) Alarm Status Indicator
(Figure 1-2) are located in the upper left corner of the server
1.3 Using LEDs to Identify the State of Devices
(Figure 1-3).
