Install the SAS Drive Signal Cable
Caution -
reseat it.

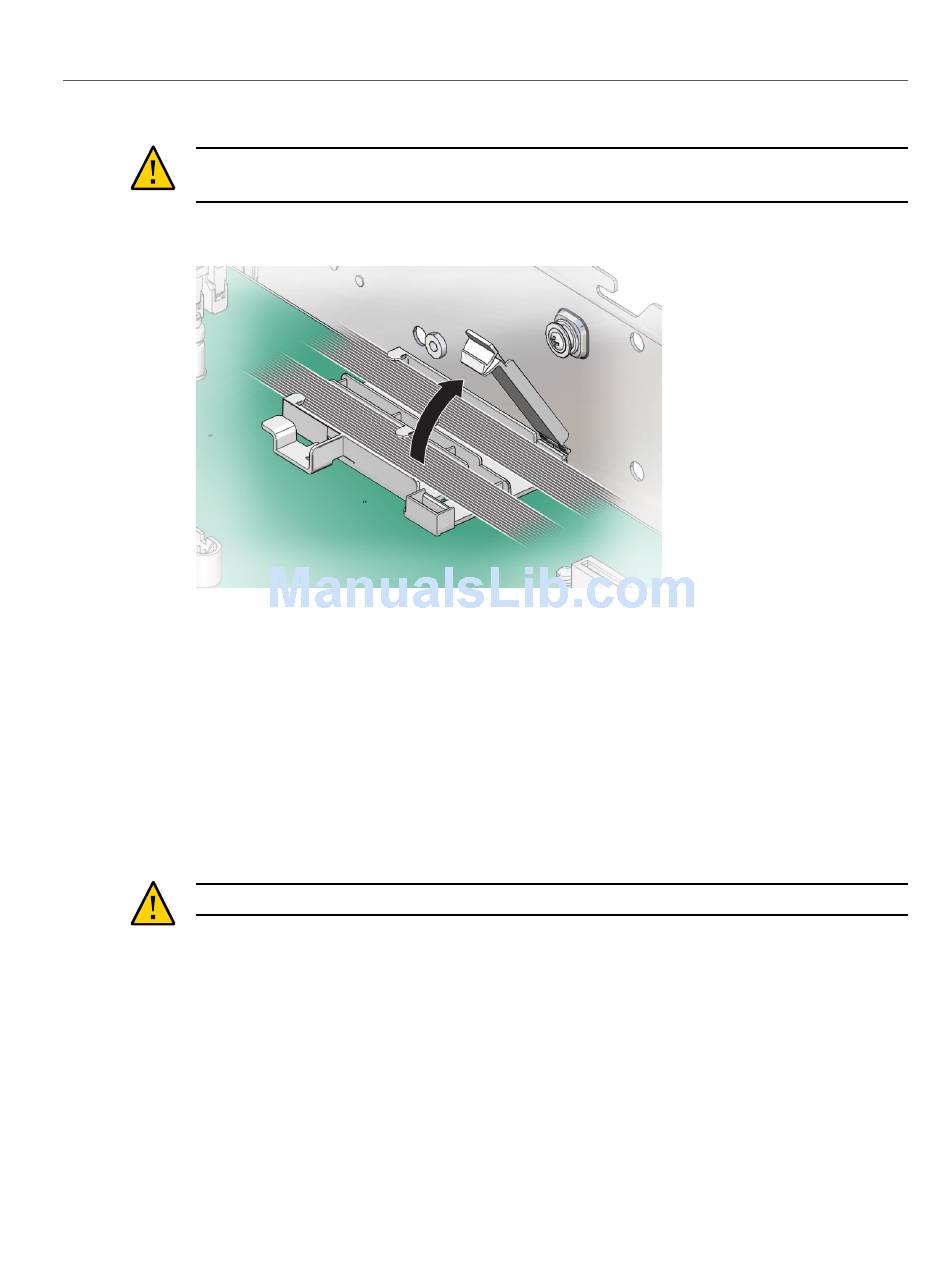

a. Open the clip, and pass the cable through at a 45-degree angle to get under
one tab.
b. Angle the cable the opposite direction, then insert it under the other tab.
Close the clip on the cable pass through.
c.
d. Make sure the cables have enough slack so that they are not pulling on HBA
card.
Caution -
Ensure that the cable pass through is seated all the way towards the HBA
e.
card.
f. Make sure that the cable pass through remains seated on all four corners.
Connect the cable to the HBA card in slot 7.
3.
198 Netra SPARC S7-2 Server Service Manual • February 2017
Avoid hitting and lifting the MAC label nearby. If it is raised while routing the cable,
The HBA card will bend if the cables are too tight.
