Install NVMe Cables

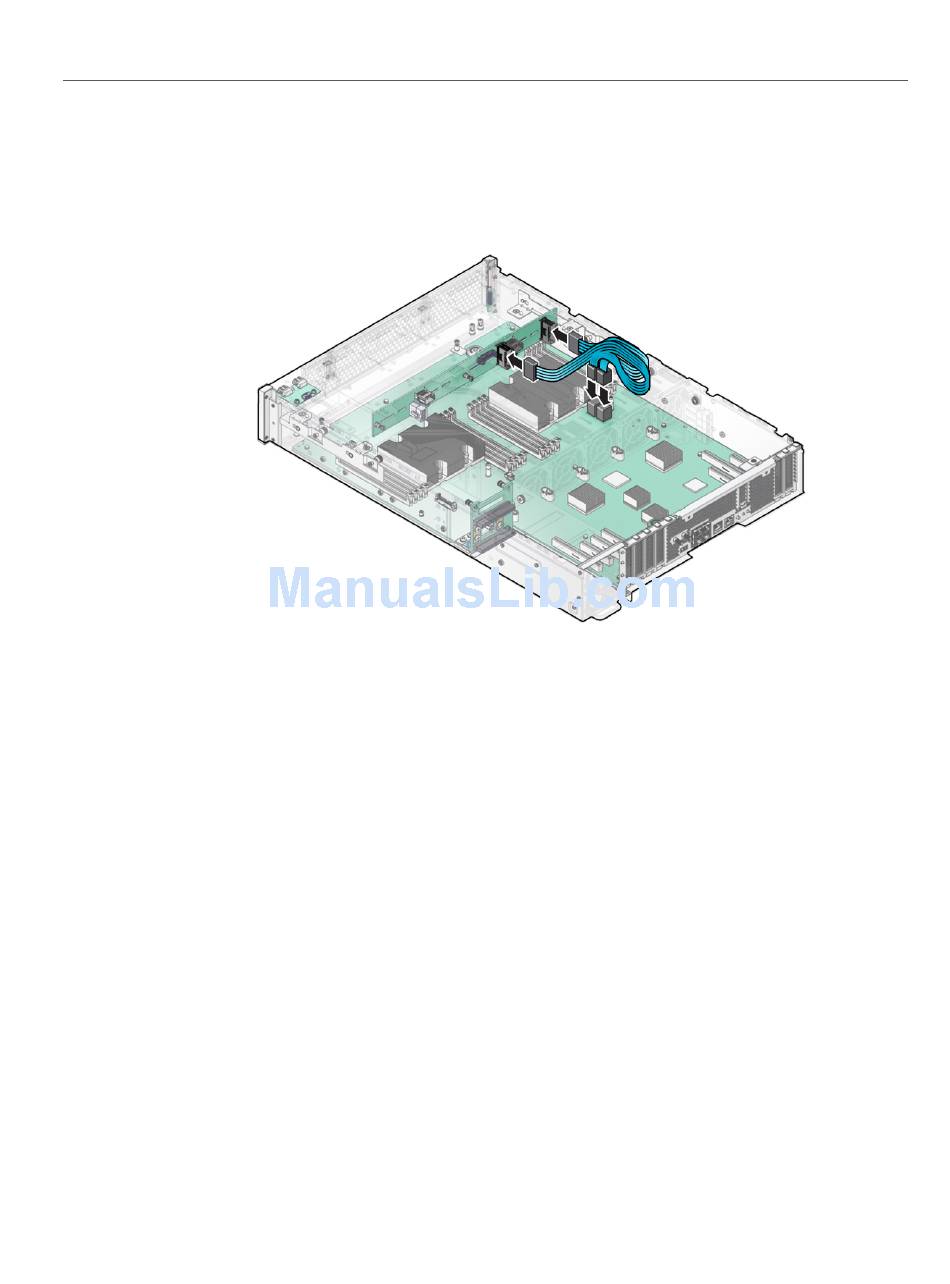

The cable labeled 0-1 must be connected to the port labeled 0-1 on the motherboard, and
the cable labeled 2-3 must to the port 2-3 on the motherboard.
Install the SAS cables.
2.
See "Install the SAS Drive Signal Cable" on page 197
Cables" on page
3. Install the air duct.
See "Install the Air Duct" on page
4. Return the server to operation.
See "Returning a Server to Operation" on page
Related Information
Oracle 1.6TB NVMe SSD Documentation Library
■
"Component Locations (Storage, Power, NVMe, and Fan Modules)" on page 14
■
"Component Locations (Motherboard, Memory, and PCIe Cards)" on page 16
■
"Preparing for Service" on page 43
■
"Returning a Server to Operation" on page 235
■
