Locate a Faulty DIMM
2. Remove the air baffle by lifting it straight up and out of the system.

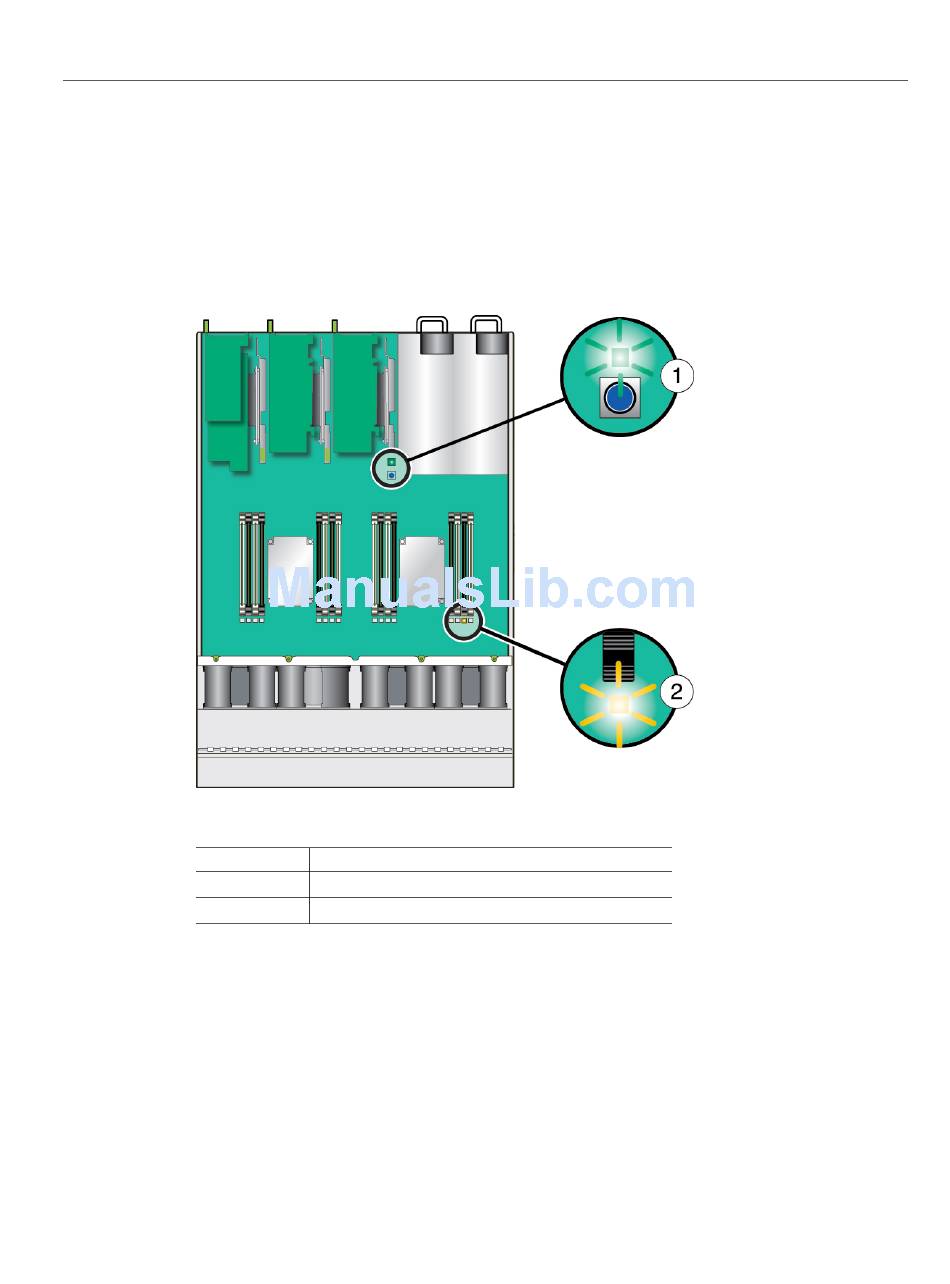

3. Identify and note the location of a failed DDR4 DIMM by pressing the Fault
Remind button on the motherboard.
Failed DDR4 DIMMs display an amber LED on the motherboard.
Number
1
2
4. Remove the faulty DIMM.
See "Remove a DIMM" on page
Related Information
"Understanding DIMM Layout and Population Rules" on page 160
■
"Install a DIMM" on page 163
■
162 Netra SPARC S7-2 Server Service Manual • February 2017
Description
Fault Remind button
DIMM fault LEDs
163.
