Install the Motherboard

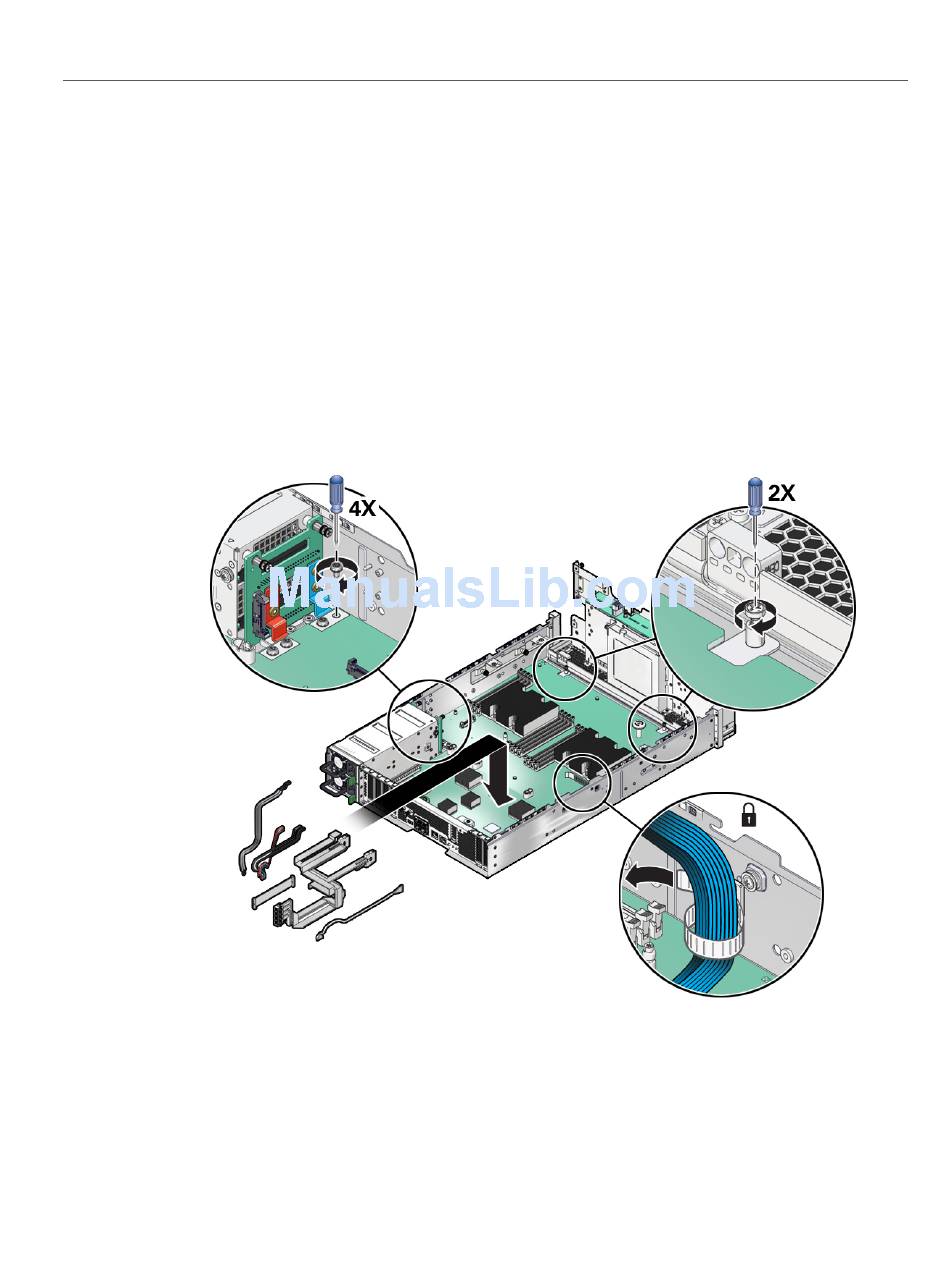

3. Tilt the motherboard to clear the cable tie mounted on the left.
4. Lower the motherboard onto the bottom alignment pins.
5. Slowly slide the motherboard until it drops, engaging the bottom alignment pins.
Carefully insert the LED into the hole at the rear of the chassis.
6.
7. Continue to slide the motherboard forward until it seats.
The rear of the motherboard must be flush with the rear of the server. Additionally, the four
holes in the motherboard must align with the four holes in the bus bars.
8. Tighten the captive screw.
9. Install and tighten the four bus bar screws.
Install the right thumb screw bracket.
10.
