Install the PDB

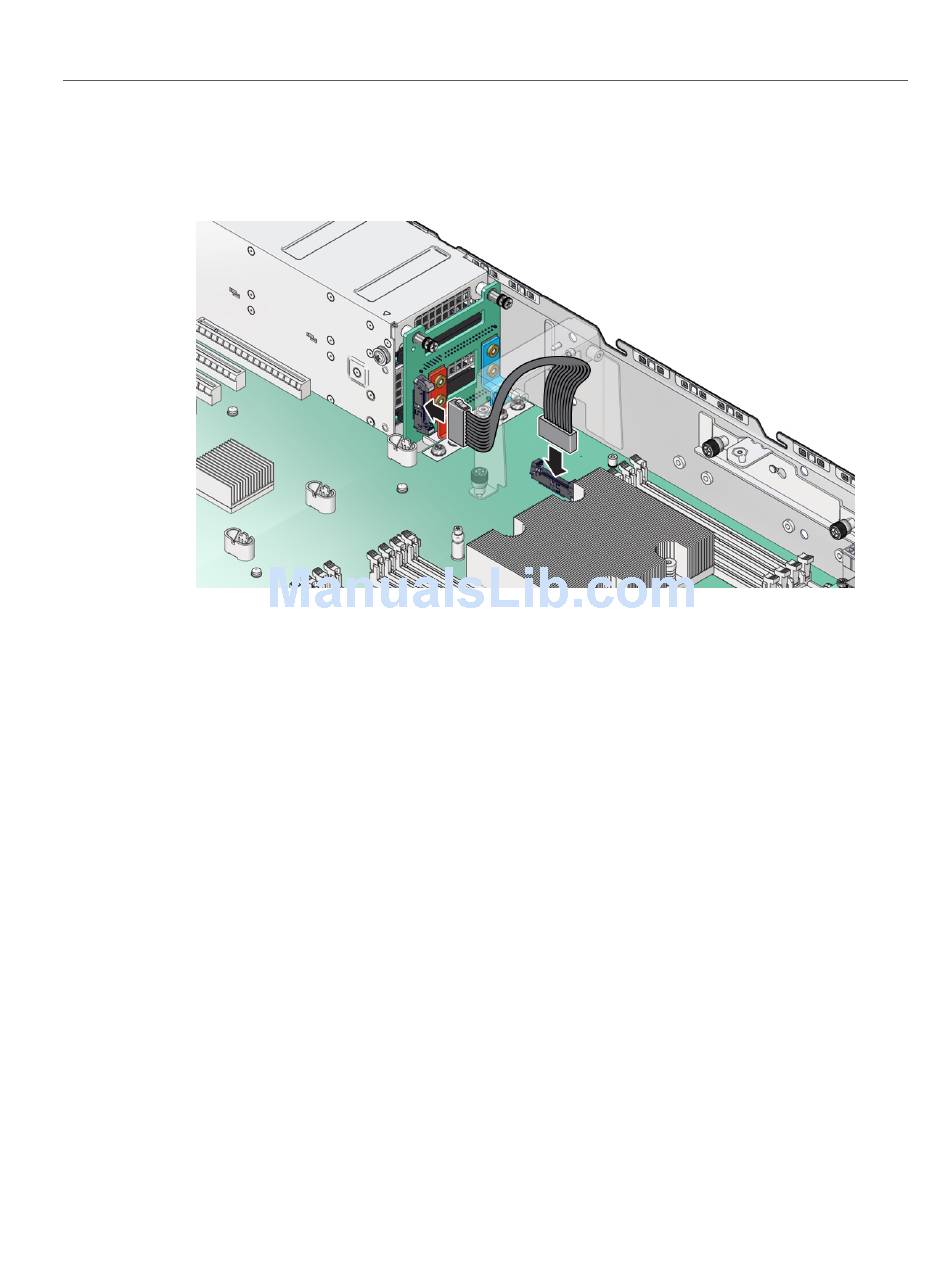

7. Reconnect the cable to the PDB.
Install the fan tray bracket and fan tray.
8.
See "Install the Fan Tray" on page
9. Install the right thumb screw bracket.
Connect the cables from the motherboard.
10.
Connect the LED assembly cable, and close the cable tie on the right side of the
11.
chassis.
If you installed the PDB as part of another component's removal or installation
12.
procedure, return to that procedure.
See "Component Service Task Reference" on page
13. Review this information and complete these prerequisites in this order.
See:
"Install the Internal HBA PCIe Card" on page 183
■
"Install a PCIe Card" on page 176
■
"Install the Air Duct" on page 236
■
"Install the PSU Duct" on page 240
■
