Understanding DIMM Layout and Population Rules

"Returning a Server to Operation" on page 235
■
Understanding DIMM Layout and Population Rules
These topics describe DIMM layout and population rules.
Note -
nonfunctional and must not be populated with DIMMs. In single-processor servers, a maximum
of 8 DIMMs are supported and the DIMMs must be installed in DIMM sockets associated with
the P 0 processor socket.
"DIMM Layout" on page 160
■
"DIMM Population Rules" on page 160
■

DIMM Layout

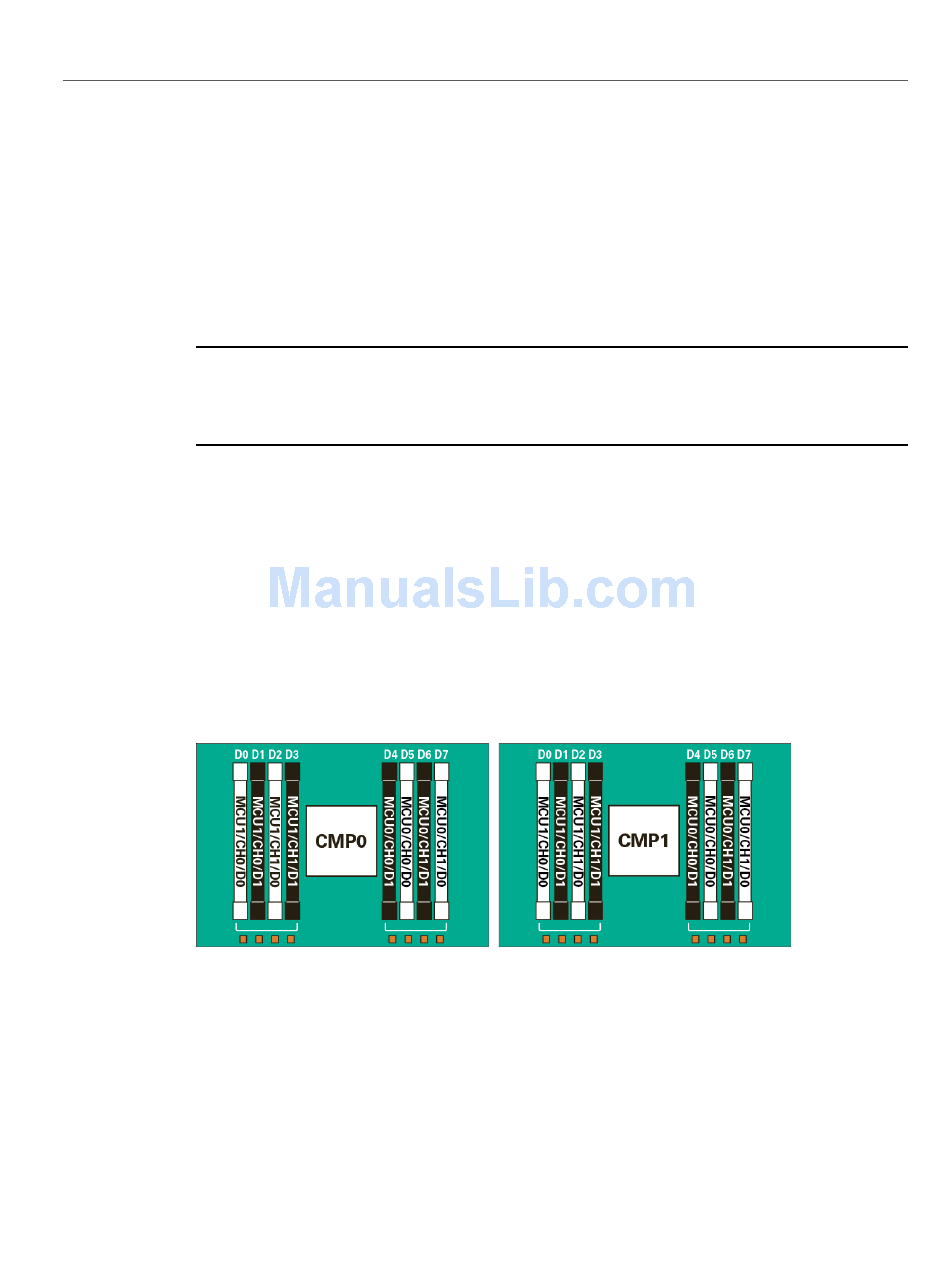

The physical layout of the DIMMs and processors is shown in the following figure. When
viewing the server from the front, processor 0 (P 0) is on the left.

DIMM Population Rules

The DIMM configurations depend upon the CPU configuration. A single CPU can have a
maximum of 8 DIMMS. A dual-CPU configuration can have a maximum of 16 DIMMS.
160 Netra SPARC S7-2 Server Service Manual • February 2017
In single-processor servers, the DIMM sockets associated with the processor 1 (P 1) are
