Remove the LED Board and Cable
5. Lift the LED assembly from the server.

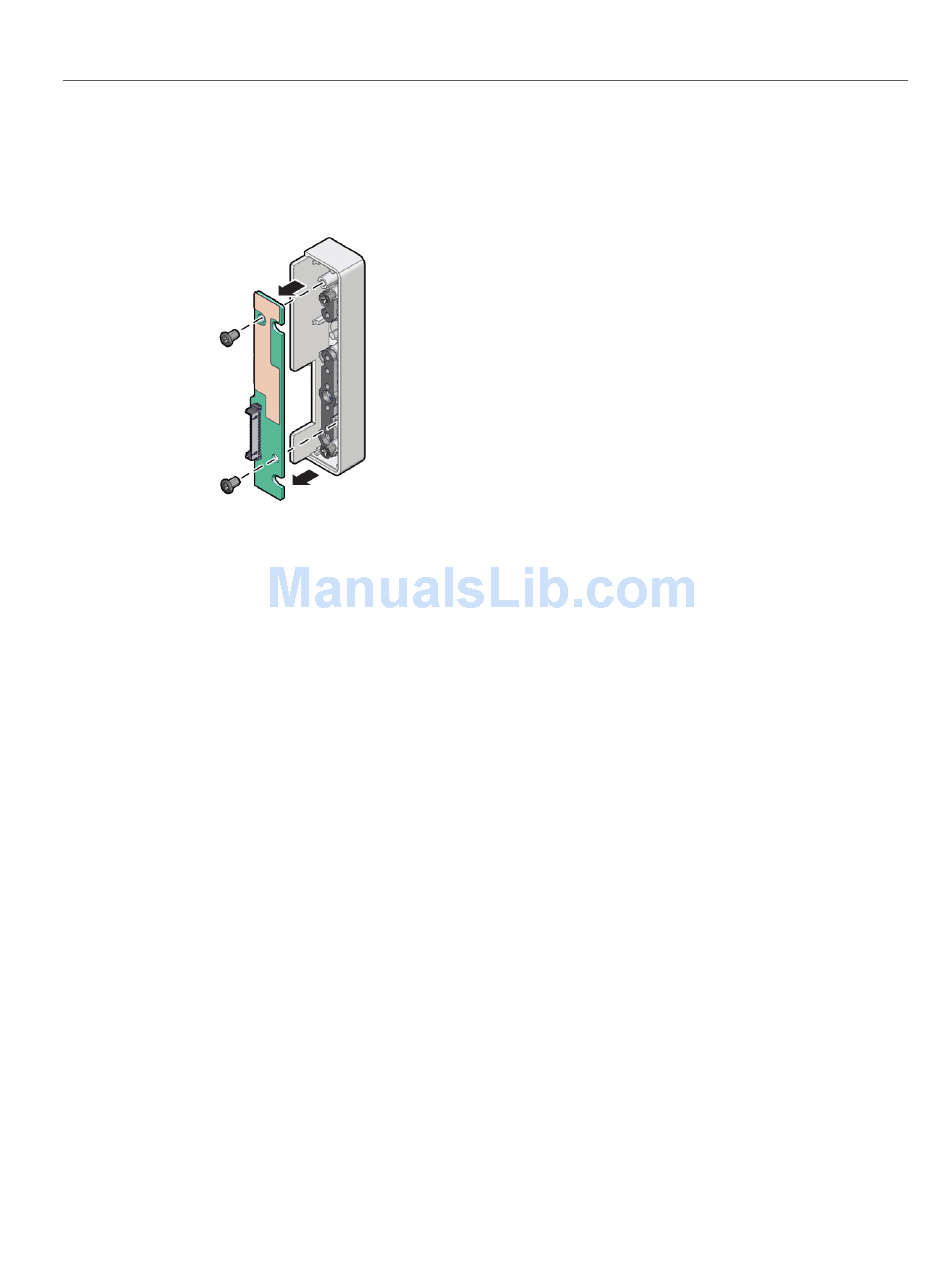

6. Remove the two screws securing the LED board to the LED assembly.
7. Lift the LED board from the LED assembly, and set it aside.
8. Consider your next step.
If replacing a faulty LED board, install a new LED board.
■
See
If you removed the LED board as part of another component's service
■
procedure, return to that procedure.
See
Related Information
"Determine if the LED Board Is Faulty" on page 217
■
"Install the LED Board and Cable" on page 221
■
"Preparing for Service" on page 43
■
"Returning a Server to Operation" on page 235
■
220 Netra SPARC S7-2 Server Service Manual • February 2017
"Install the LED Board and Cable" on page
"Component Service Task Reference" on page
221.
47.
