Remove the PSU Duct
Remove the PSU Duct
1.
Complete these prerequisites in this order.
See:
"Remove the Top Cover" on page 67
■
"Rotate the Drive Cage to the Service Position" on page 71
■
2.
Remove the USB cable from the channel in the PSU duct.

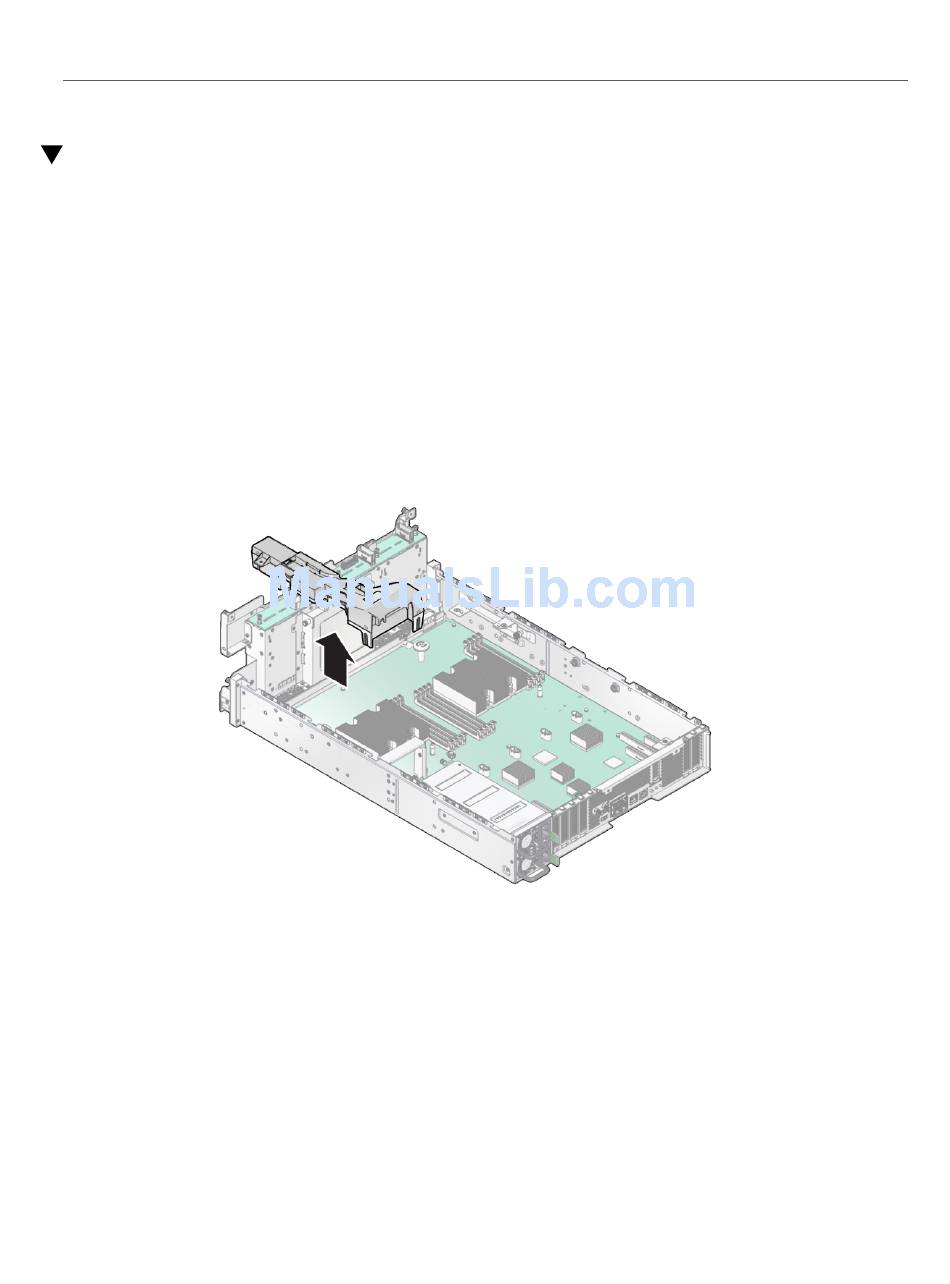

Lift the PSU duct straight up and off of the alignment pins.
3.
4.
Set the PSU duct aside.
Consider your next step.
5.
See:
"Servicing the eUSB Drive" on page 103
■
"Servicing the USB Board" on page 109
■
"Servicing DIMMs" on page 159
■
74
Netra SPARC S7-2 Server Service Manual • February 2017
