Configuring a Managed Switch Point-to-Point System

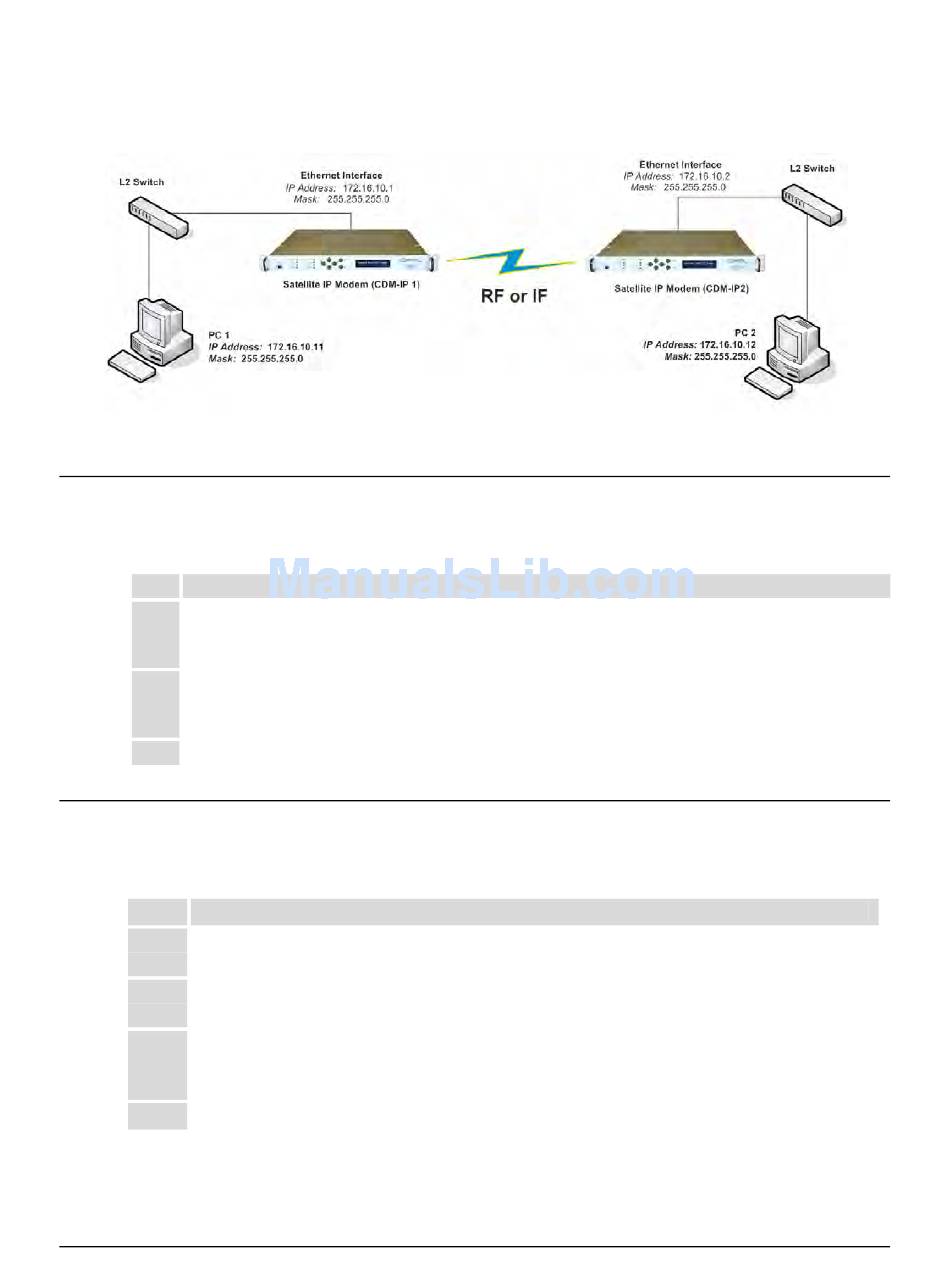

The procedures outlined in this section result in the configuration shown in Table D-4.

Table D-4. Managed Switch Point-to-Point System Configuration

D.2.5.1 Configure User PCs
Do these steps:
Step Task
1 For User PC 1:
Set the IP Address to 172.16.10.11;
•
Set the mask to 255.255.255.0.
•
2 For User PC 2:
Set the IP Address to 172.16.10.12;
•
Set the mask to 255.255.255.0.
•
3
Reboot the PCs (if required).
D.2.5.2 Configure CDM-IP 1, CDM-IP 2 – Set IP Address(es)
Do these steps (the applicable CLI "hot key" is shown in brackets [#]):
Step Task
1 From the CLI Main Menu:
Select the Interface Configuration submenu [ I ].
2 From the Interface Configuration Menu:
Select the Ethernet Interface submenu [ E ].
3 Set Ethernet IP Address [ I ]:
Set CDM-IP 1 to 172.16.10.1
•
Set CDM-IP 2 to 172.16.10.2
•
4 Set the Ethernet Subnet Prefix Length [ M ] to 24.
