ODU (Outdoor Unit) Pages Summary (CDM-570A Only)

After enabling ODU Comms operations, you may use the 'ODU (Outdoor Unit)' pages

to control and monitor the CSAT-5060 or KST-2000A/B Outdoor Unit that is

connected via FSK to the CDM-570A (70/140 MHz) Satellite Modem.

See Chapter 10. CDM-570A/570AL ODU (TRANSCEIVER, BUC, LNB) M&C Operation

for complete details on using the HTTP Interface for ODU operations.

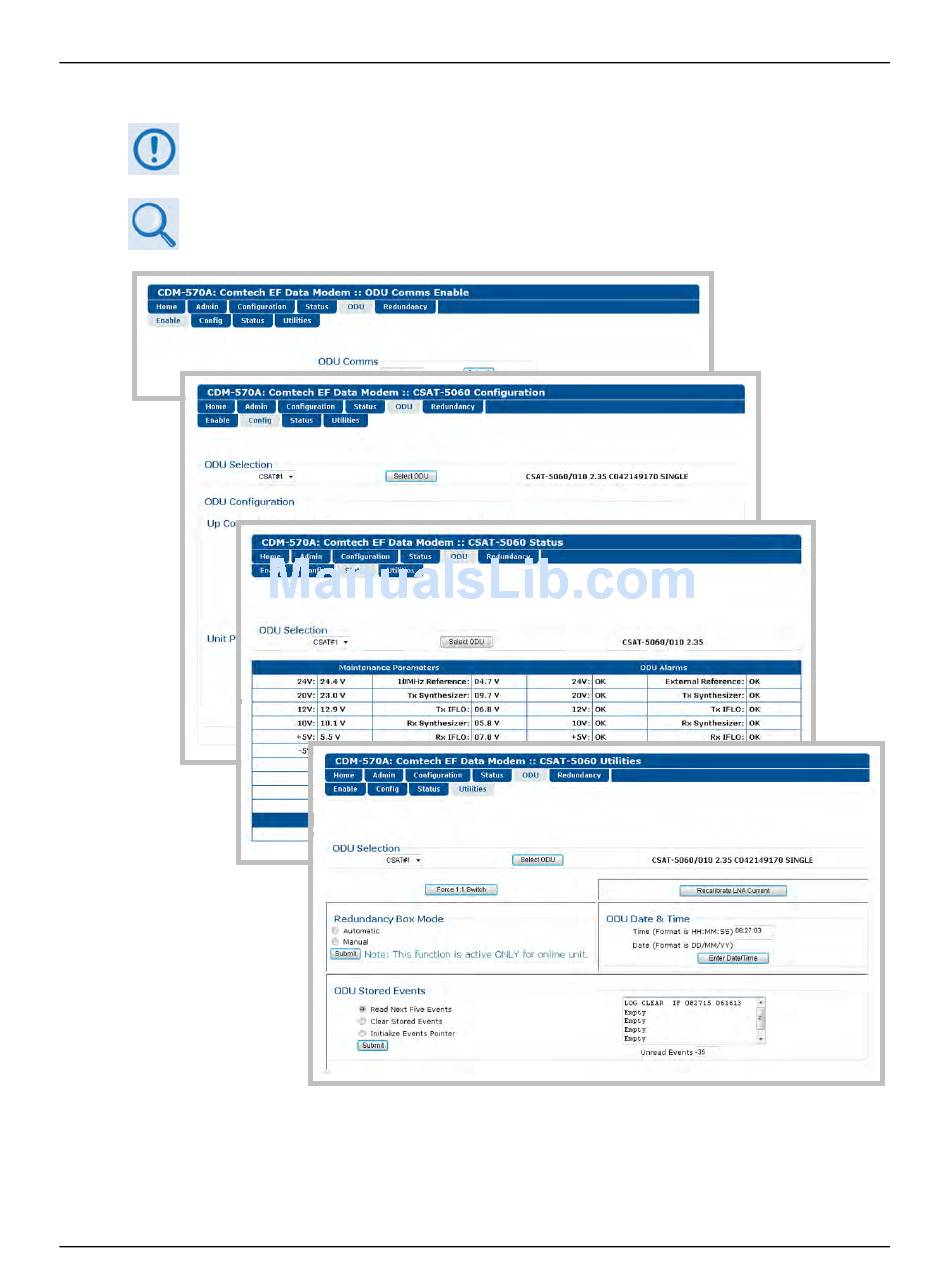

Figure 7-42. ODU Page Examples (Enable, Config, Status, and Utilities)
