9.3.10.2.6 Operations and Maintenance > Statistics Menu> CPU Statistics
Open the nested CPU Statistics page from the Statistics page. This page displays Packet
Processor CPU Utilization as a percentage(%).
9.3.10.2.7 Operations and Maintenance > Statistics Menu> VLAN Statistics
Open the nested VLAN Statistics page from the Statistics page. This page displays VLAN packets
to and from the WAN (satellite) and to and from Ethernet (LAN) by VLAN ID. It also displays
VLAN packets from and to the Management VLAN of the Packet Processor.
Selection
Clear
Base [#]

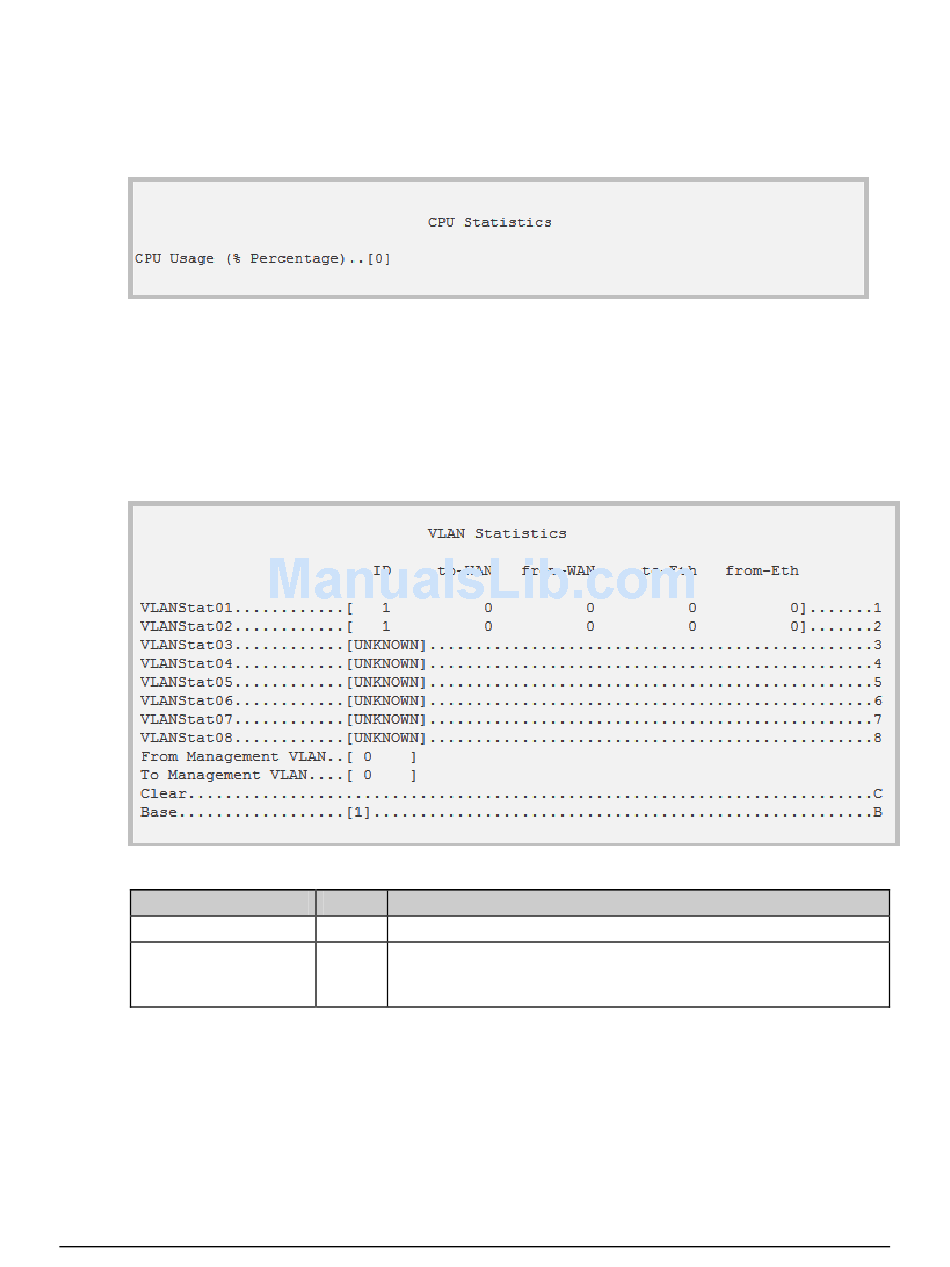

Figure 9-55. CPU Statistics
Figure 9-56. VLAN Statistics
Hot Key Description
C
Allows a reset of the Statistics of a specific Queue.
B Select Base and then type a number to display a different set of eight of up
to 32 available entries.
For example, if you want to view VLANStats 16-24: Type '16'.
