10.1.1 CDM-570A/570AL Front Panel Operation – Overview
See Chapter 6. FRONT PANEL OPERATION for an in-depth explanation of the
function and operation of the CDM-570A/570AL front panel.
1 LED Indicators
The LEDs show a summary status of modem operation. See Sect. 6.1.1.
2 Keypad
The keypad has six individual keys. The keys have a positive 'click' action that gives
tactile feedback. Use the keypad to enter data. See Sect. 6.1.2.
3 Vacuum Fluorescent Display (VFD)
The VFD shows data, menus, prompts and messages. The VFD is an active display with
adjustable brightness. It shows two lines of 40 characters each. Nested menus show all
available options and prompts that guide you in carrying out required actions. See Sect.
6.1.3.
10.1.2 CDM-570A HTTP Interface – Overview
See Chapter 7. ETHERNET-BASED REMOTE PRODUCT MANAGEMENT for in-depth
explanations of the function and operation of the CDM-570A HTTP Interface.
Ethernet-based Remote Product Management of the CDM-570A/570AL is available using one of
two rear panel RJ-45 10/100 BaseT Ethernet ports:
• The 'M&C 100' 10/100 Ethernet port (for units without
the optional IP Packet Processor)
–or–
•
The 'Traffic 100' 10/100 Ethernet port (for units equipped
with the optional IP Packet Processor).

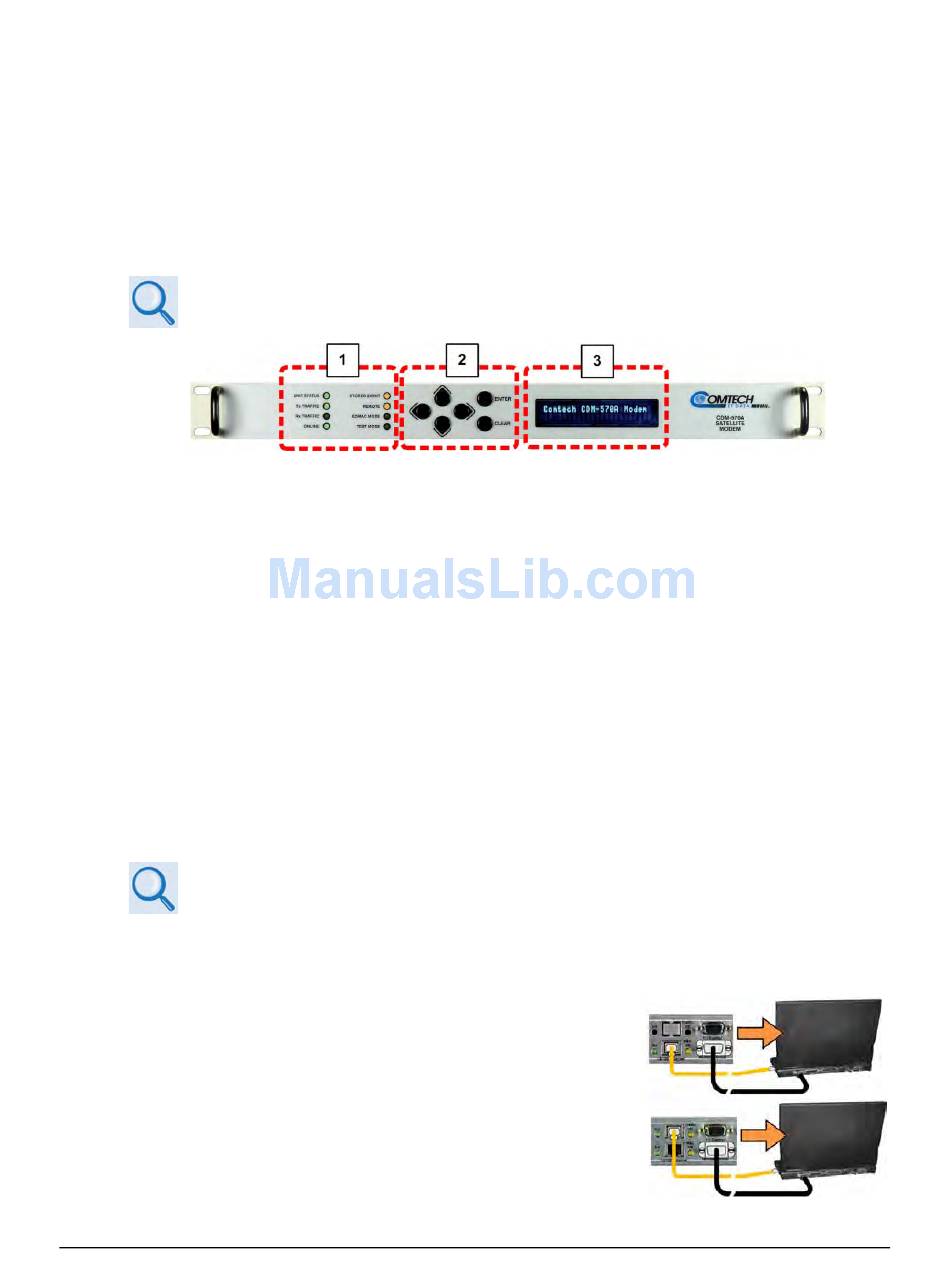

Figure 10-1. CDM-570A/570AL Front Panel Features
