Comtech EF Data CDM-570A Installation And Operation Manual page 216

CDM-570A/570AL Satellite Modem with Optional Packet Processor
Ethernet-based Remote Product Management

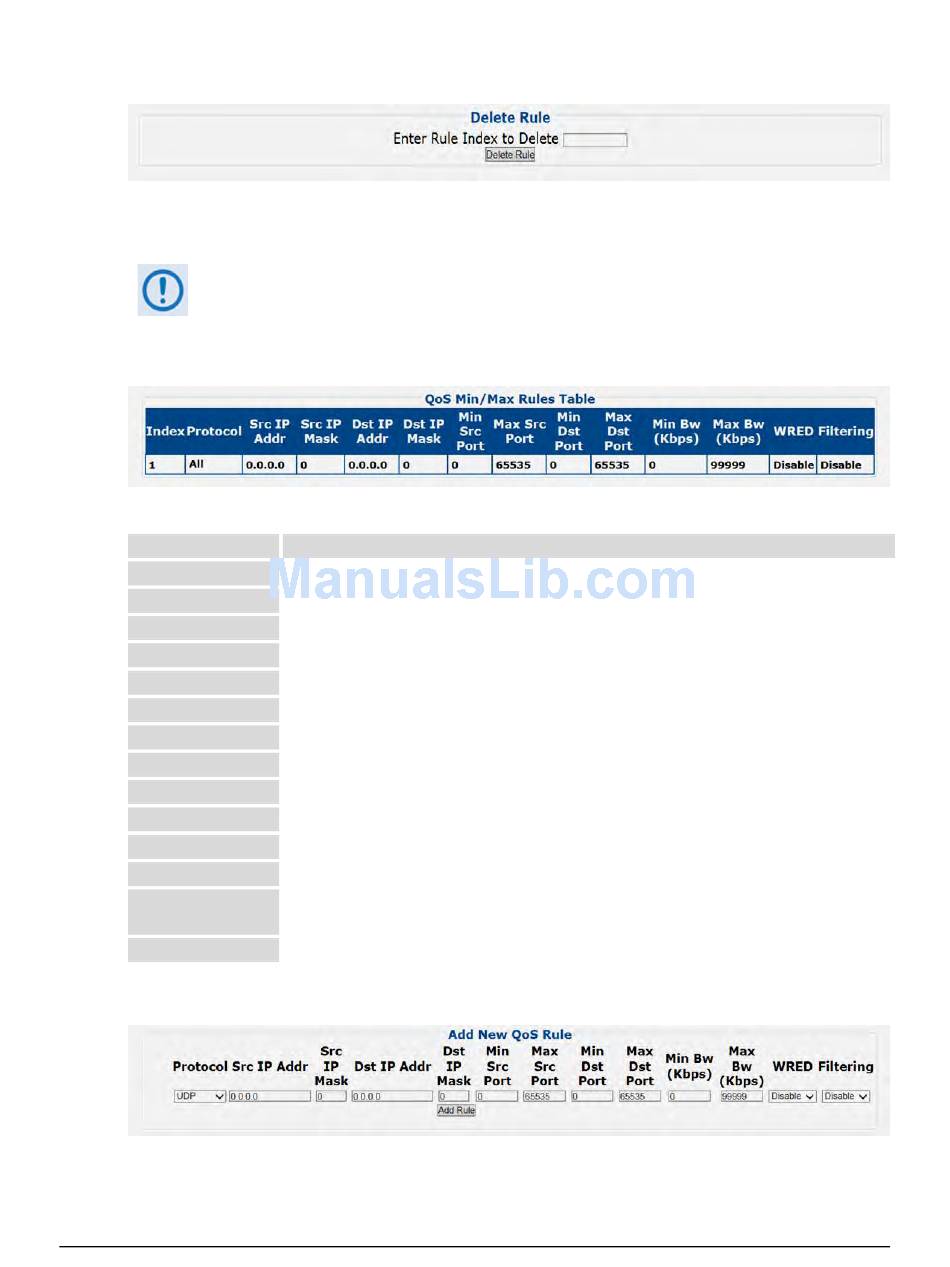

Delete Rule
Enter Rule Index to Delete, and then click [Delete Rule] to execute removal of the specified rule
from the QoS Max/Priority Rules Table.
The information that follows is applicable only when QoS Mode = Rule – Min/Max
Mode
QoS Min/Max Rules Table
This section displays all existing QoS Min/Max Rules Table entries. From left to right:
Column
Index
Protocol
Src IP Addr
Src IP Mask
Src IP Addr
Dest IP Mask
Min Src Port
Max Src Port
Min Dst Port
Max Dst Port
Min BW (Kbps)
Max BW (Kbps)
WRED
Filtering
Add New QoS Rule
This section allows you to directly add a new Min/Max QoS Rule:
Description
This is the internal table index that is automatically assigned and cannot be edited.
Specifies the protocol for the specific rule.
Identifies the Source IP Address in the form XXX.XXX.XXX.XXX.
Identifies the Source IP Mask in the form YY.
Identifies the Destination IP Address in the form XXX.XXX.XXX.XXX.
Identifies the Destination IP Mask in the form YY.
Specifies the Minimum Source Port.
Specifies the Maximum Source Port.
Specifies the Minimum Destination Port.
Specifies the Maximum Destination Port.
Specifies the Minimum Bandwidth value in kilobits per second.
Specifies the Maximum Bandwidth value in kilobits per second.
Specifies the WRED (Weighted Random Early Detection) setting for the specific rule as
Disable or Enable.
Specifies the flow filter setting for the specific rule as Disable or Enable.
7–44
MN-CDM570A
Revision 3
