9.3.5.1 Route Table > Per Route Configuration
Open the nested "Configuring Per Route Capabilities" page from the Route Table Configuration
page.
Select the Route Number to configure Header Compression (HdrComp) and Payload
Compression (PayloadComp)) on a per Route basis.
Selection
Route001 through
Route256
(The current group of eight
of up to 256 definable are
displayed here)
Base [#]
Transmit Encrypt

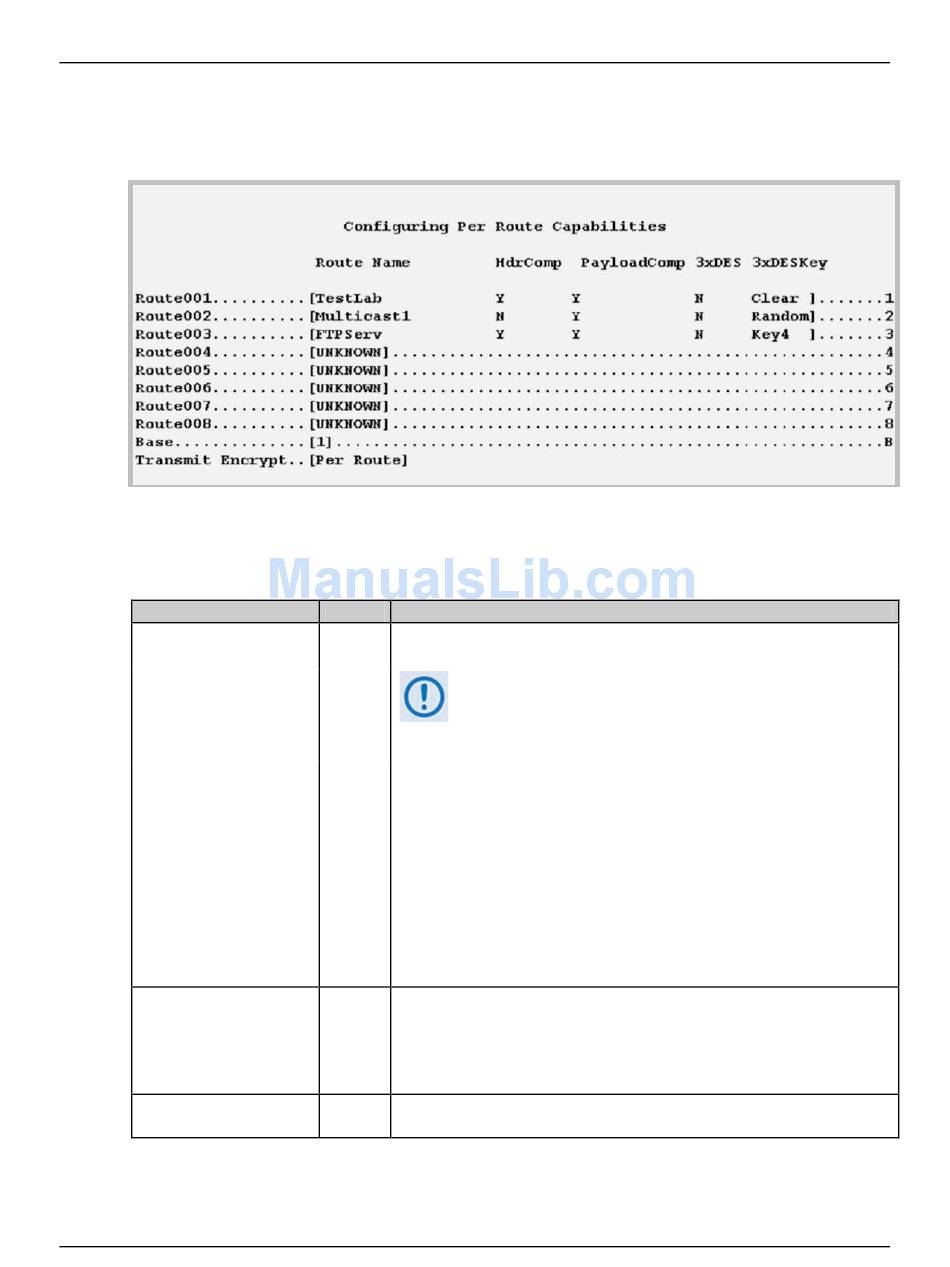

Figure 9-19. Route Table Configuration | Per Route
Hot Key Description
1 – 8 For each route, the CLI prompts you to select the operational states in this
order:
"Specify Header compression for this route (Y or
N)<Enter : N>"
Type 'Y' or 'N' to toggle, or press [Enter] to disable header compression for
this route.
"Specify Payload compression for this route (Y or
N)<Enter : N>"
Type 'Y' or 'N' to toggle, or press [Enter] to disable payload compression for
this route.
B Set a value, from 1 to 249, to display or edit a group of eight of up to 256
definable Routes.
For example, if you want to edit Routes 32-40: Type 'B', and then type '32'
to select the Base value of 32. The table will refresh and display Route032
through Route040.
[RO] Displays the current operational state for TX Encrypt as "Per Route" or
"Disabled".
3xDES Encryption is a future offering and is not
available in this firmware release. The 3xDES
selections are non-functional at this time. Press
Enter to skip these selections.
