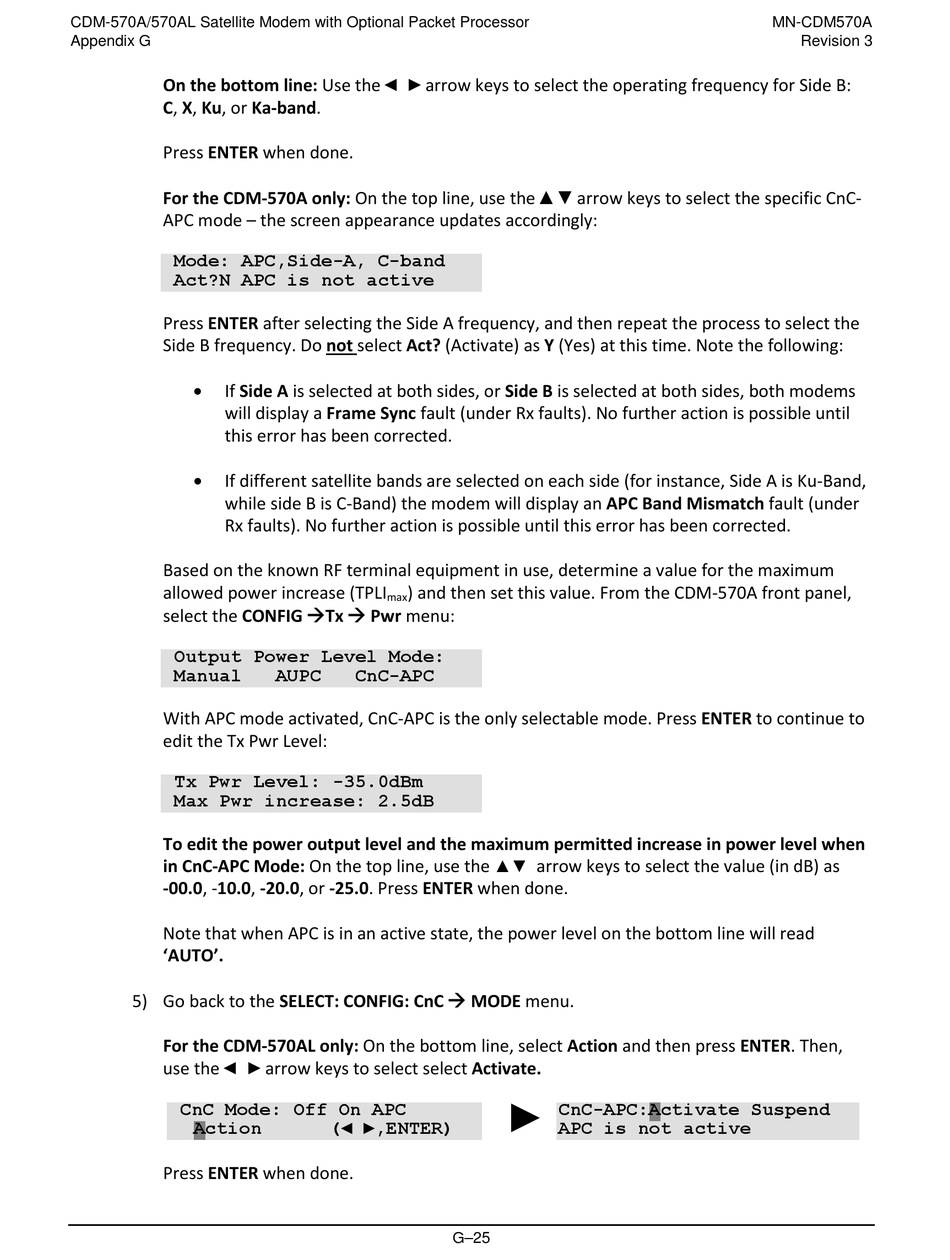

Comtech EF Data CDM-570A Installation And Operation Manual page 549

CDM-570A/570AL Satellite Modem with Optional Packet Processor
Appendix G
On the bottom line: Use the
C, X, Ku, or Ka-band.
Press ENTER when done.
For the CDM-570A only: On the top line, use the ▲▼arrow keys to select the specific CnC-
APC mode – the screen appearance updates accordingly:
Mode: APC,Side-A, C-band
Act?N APC is not active
Press ENTER after selecting the Side A frequency, and then repeat the process to select the
Side B frequency. Do not select Act? (Activate) as Y (Yes) at this time. Note the following:
•
If Side A is selected at both sides, or Side B is selected at both sides, both modems
will display a Frame Sync fault (under Rx faults). No further action is possible until
this error has been corrected.
•
If different satellite bands are selected on each side (for instance, Side A is Ku-Band,
while side B is C-Band) the modem will display an APC Band Mismatch fault (under
Rx faults). No further action is possible until this error has been corrected.
Based on the known RF terminal equipment in use, determine a value for the maximum
allowed power increase (TPLI
select the CONFIG Tx  Pwr menu:
Output Power Level Mode:
Manual
With APC mode activated, CnC-APC is the only selectable mode. Press ENTER to continue to
edit the Tx Pwr Level:
Tx Pwr Level: -35.0dBm
Max Pwr increase: 2.5dB
To edit the power output level and the maximum permitted increase in power level when
in CnC-APC Mode: On the top line, use the
-00.0, -10.0, -20.0, or -25.0. Press ENTER when done.
Note that when APC is in an active state, the power level on the bottom line will read
'AUTO'.
5) Go back to the SELECT: CONFIG: CnC  MODE menu.
For the CDM-570AL only: On the bottom line, select Action and then press ENTER. Then,
◄ ►
use the
CnC Mode: Off On APC
Action
Press ENTER when done.
◄ ►
arrow keys to select the operating frequency for Side B:
) and then set this value. From the CDM-570A front panel,
max
AUPC CnC-APC
arrow keys to select select Activate.
(◄ ►,ENTER)
arrow keys to select the value (in dB) as
▲▼
►
CnC-APC:Activate Suspend
APC is not active
G–25
