CDM-570A/570AL Satellite Modem with Optional Packet Processor
Appendix G
• QPSK, VersaFEC 0.706 with Carrier-in-Carrier
•
QPSK, VersaFEC 0.631 with Carrier-in-Carrier
•
QPSK, VersaFEC 0.533 with Carrier-in-Carrier

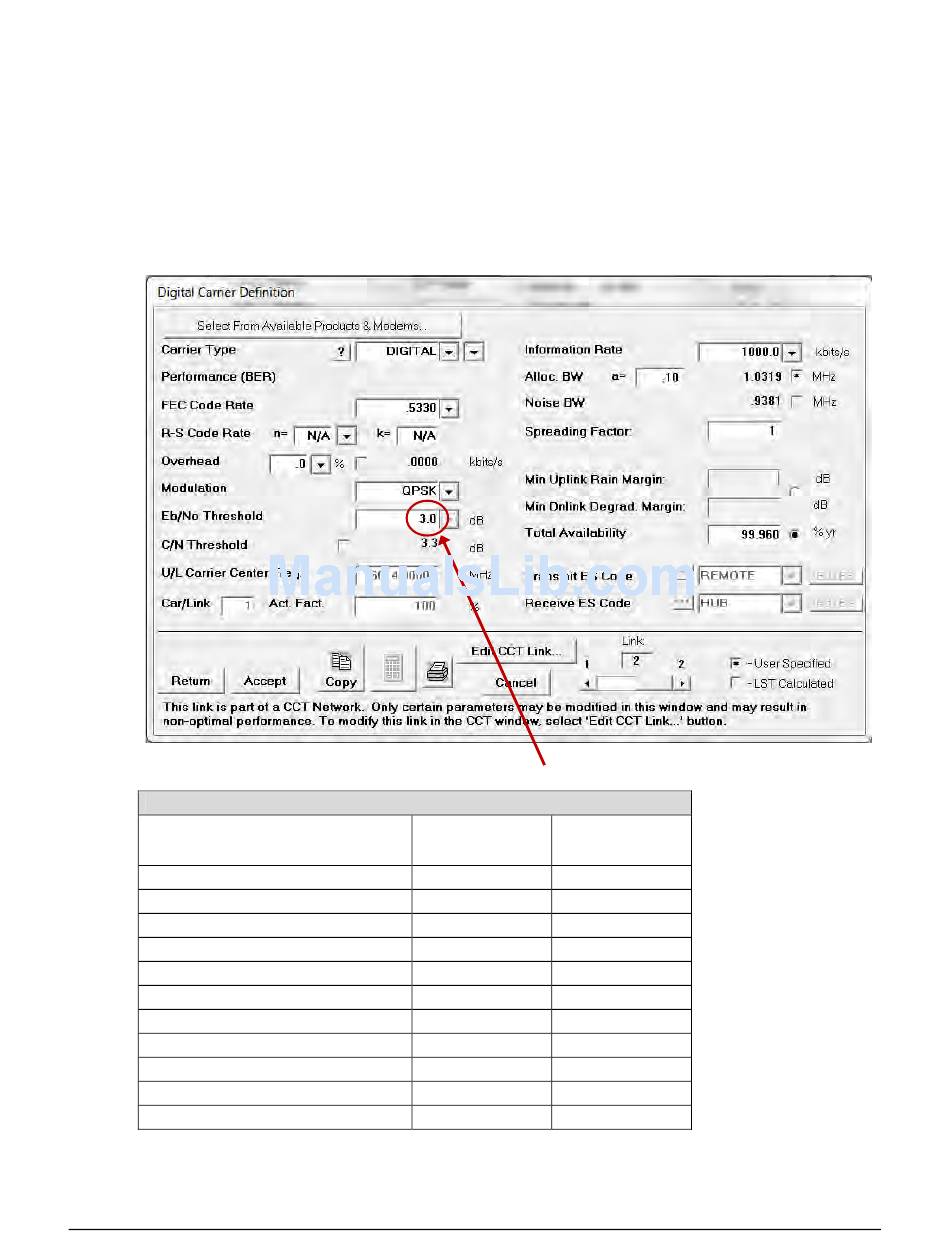

Link parameters and LST summary, for QPSK, VersaFEC 0.533 with Carrier-in-Carrier, is as
follows:
Link Analysis Description
Multicarrier Transponder Lease
Number of Links: 2
Modulation
Information Rate (kbit/s)
FEC Code Rate
R-S Code Rate
Clear Sky Eb/No Available (dB)
Number of Assigned Carriers
Transmit ES Code
Transmit ES Size (m)
Receive ES Code
Receive ES Size (m)
Receive ES G/T (dB/K)
Includes IF-RF Margin and CnC Margin
Link 1 Link 2
QPSK QPSK
1000.0 1000.0
.5330 .5330
N/A N/A
4.3 4.1
1 1
HUB REMOTE
4.5 3.0
REMOTE HUB
3.0 4.5
21.5 25.3
