Figure Q-8. Cdm-570A/570Al Router Mode – Assign Ip Addresses - Comtech EF Data CDM-570A Installation And Operation Manual

CDM-570A/570A Satellite Modem with Optional Packet Processor
Appendix Q
When you first enable Dedicated Management Port, the existing single IP Address is
assigned automatically as the Management IP Address – you are required to configure the
Traffic IP Address(es) (Figure Q-8):
a) From the Serial CLI Main Menu, press
Then, press '
b) On the Ethernet Configuration menu, press '
Managed Switch Gateway IP Addresses, respectively.
c) On the Ethernet Configuration menu, press '
Subnet Prefix, respectively, for the '10/100 Ethernet | Traffic 100' port. Make sure the
Management IP Address and Traffic IP Address are NOT in the same subnet.

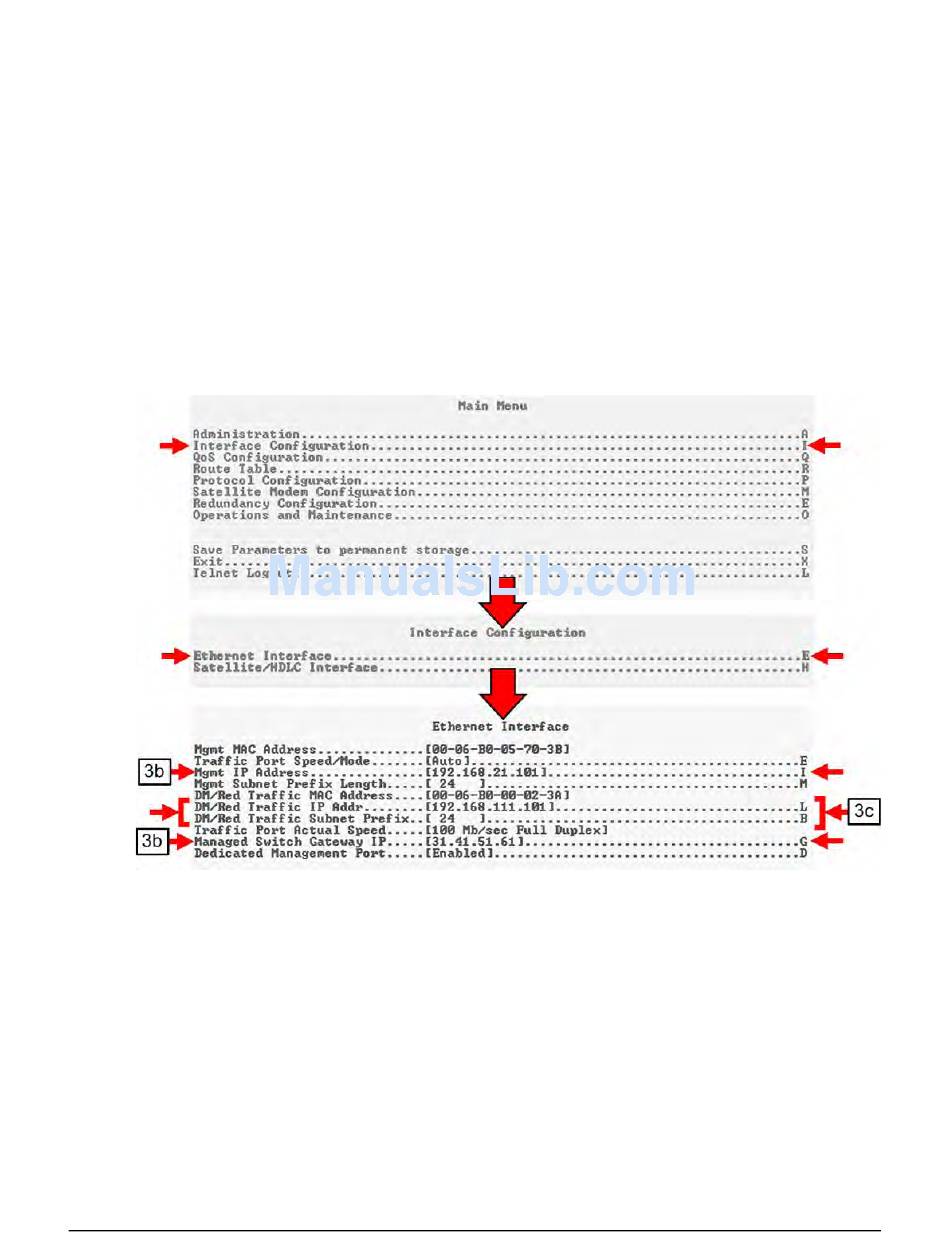

Figure Q-8. CDM-570A/570AL Router Mode – Assign IP Addresses
' to open the Ethernet Configuration menu.
E
Q–8
to open the Interface Configuration menu.
'I'
' or ' ' to assign the Management and
I G
' or ' ' to assign the IP Address and the
L B
MN-CDM570A
Revision 3
