CDM-570A/570AL ODU (Transceiver, BUC, LNB) Operation
10.2.2.1.3

ODU | Status Pages

The appearance of the 'ODU | Status' page changes depending on which type of
ODU has been recognized via FSK link for operation with the CDM-570A. These
pages provide read-only status windows pertaining to the current operating
condition for either the CSAT-5060 or the KST-2000A/B ODUs.
10.2.2.1.3.1

ODU | Status (CSAT-5060)

Figure 10-9 shows the 'ODU | Status' page as it appears with the CSAT-5060 configured as the
ODU. Use this page to review read-only status information pertaining to the CSAT-5060
Maintenance Parameters; ODU Alarms; and the number of Unread Events in the Events Log.
ODU Selection
If redundant ODUs are used, the CSAT-5060 'ODU | Status' page can toggle between the Online
and Offline units. Use the drop-down list to select CSAT #1 or CSAT #2, and then click [Select
ODU].
The page displays the current active unit in the right-hand side of the ODU Selection page
section.

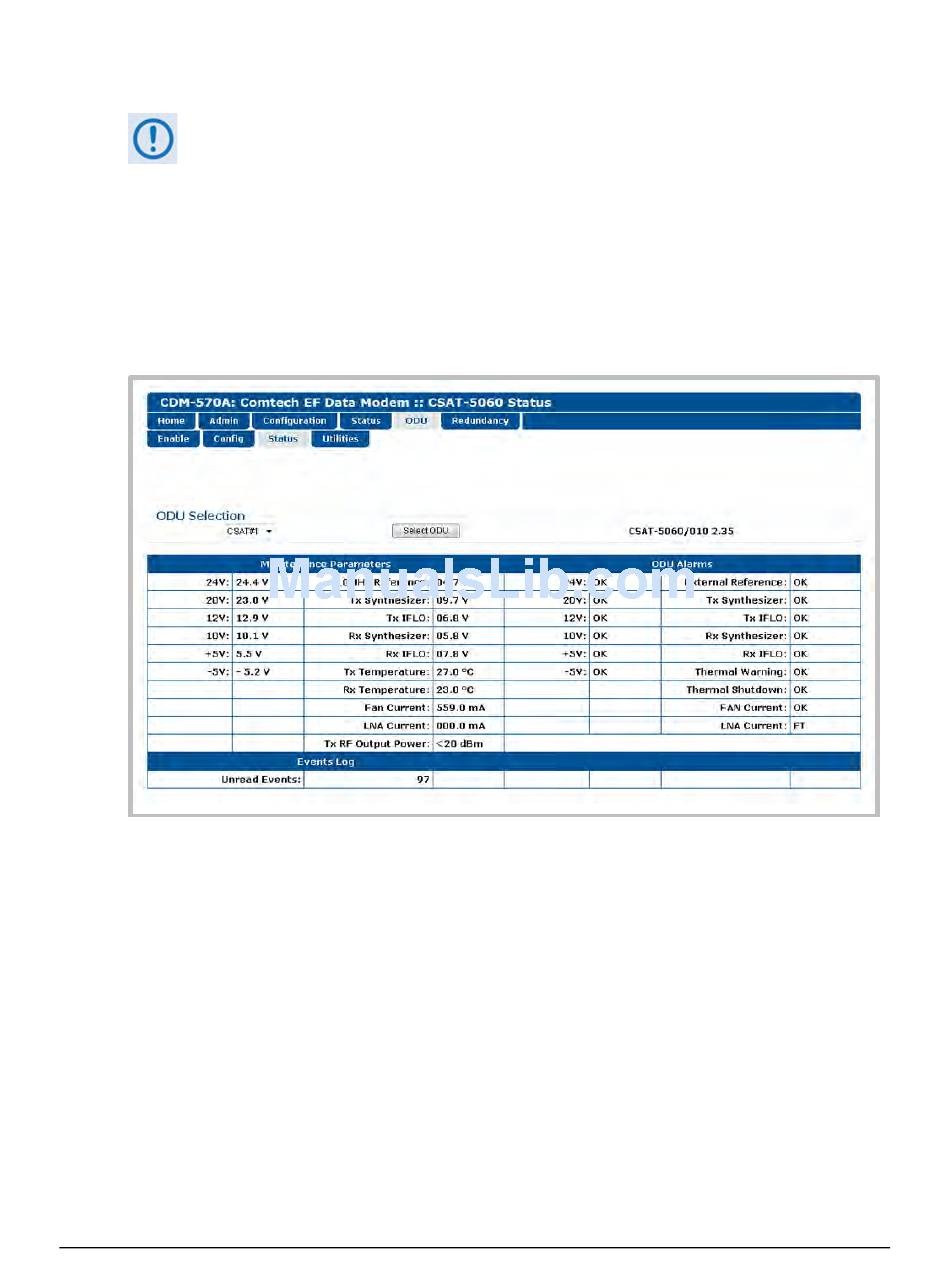

Figure 10-9. ODU | Status page (CSAT-5060)
