CDM-570A/570AL Satellite Modem with Optional Packet Processor

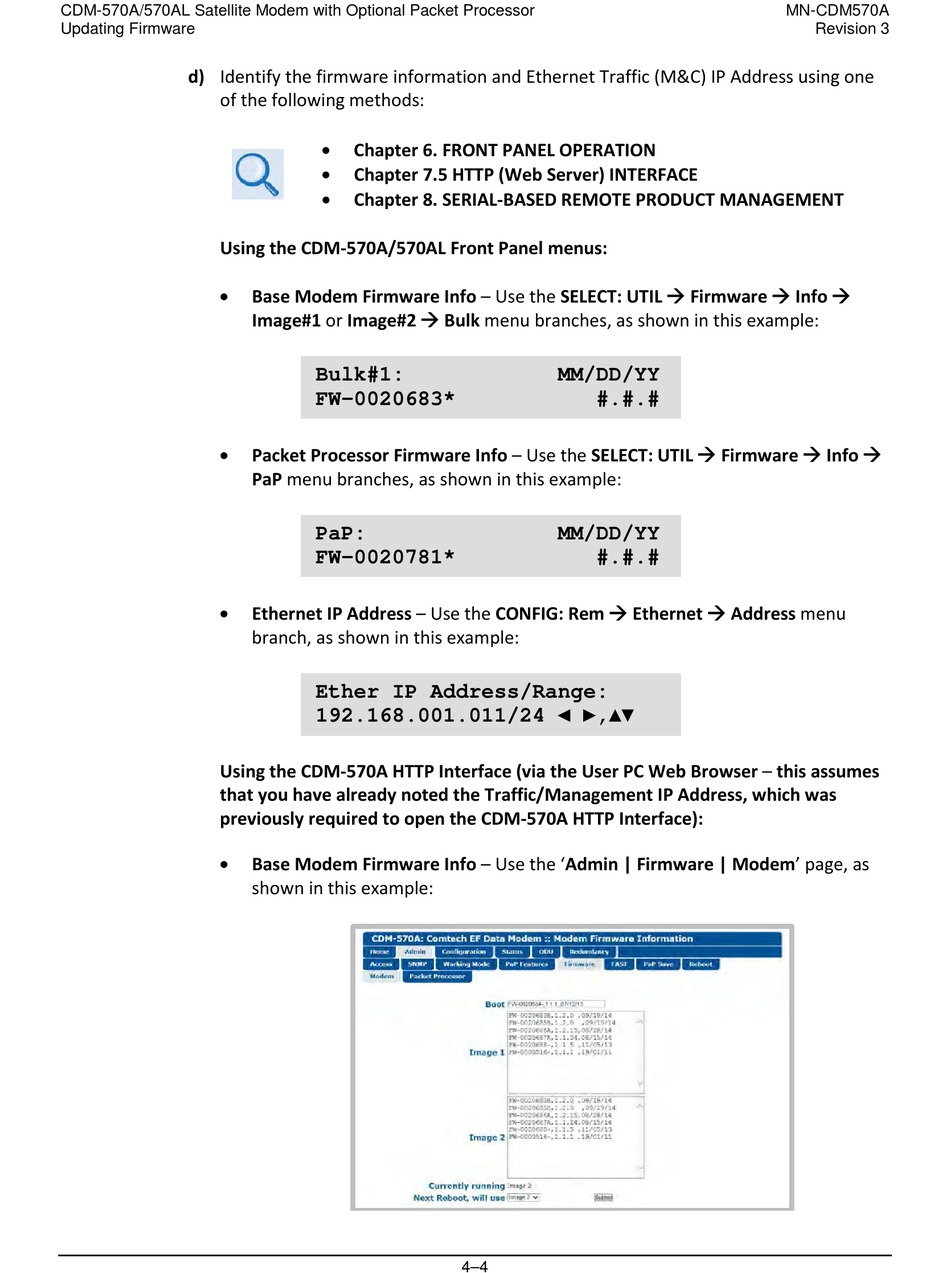

Updating Firmware
d) Identify the firmware information and Ethernet Traffic (M&C) IP Address using one
of the following methods:
Using the CDM-570A/570AL Front Panel menus:
•
•
•
Using the CDM-570A HTTP Interface (via the User PC Web Browser – this assumes
that you have already noted the Traffic/Management IP Address, which was
previously required to open the CDM-570A HTTP Interface):
•
•
Chapter 6. FRONT PANEL OPERATION
•
Chapter 7.5 HTTP (Web Server) INTERFACE
• Chapter 8. SERIAL-BASED REMOTE PRODUCT MANAGEMENT
Base Modem Firmware Info – Use the SELECT: UTIL  Firmware  Info 
Image#1 or Image#2  Bulk menu branches, as shown in this example:
Bulk#1:
FW-0020683*
Packet Processor Firmware Info – Use the SELECT: UTIL  Firmware  Info 
PaP menu branches, as shown in this example:
PaP:
FW-0020781*
Ethernet IP Address – Use the CONFIG: Rem  Ethernet  Address menu
branch, as shown in this example:
Ether IP Address/Range:
192.168.001.011/24 ◄ ►,▲▼
Base Modem Firmware Info – Use the 'Admin | Firmware | Modem' page, as
shown in this example:
MM/DD/YY
#.#.#
MM/DD/YY
#.#.#
4–4
MN-CDM570A
Revision 3
