CDM-570L/570AL Satellite Modem with Optional Packet Processor

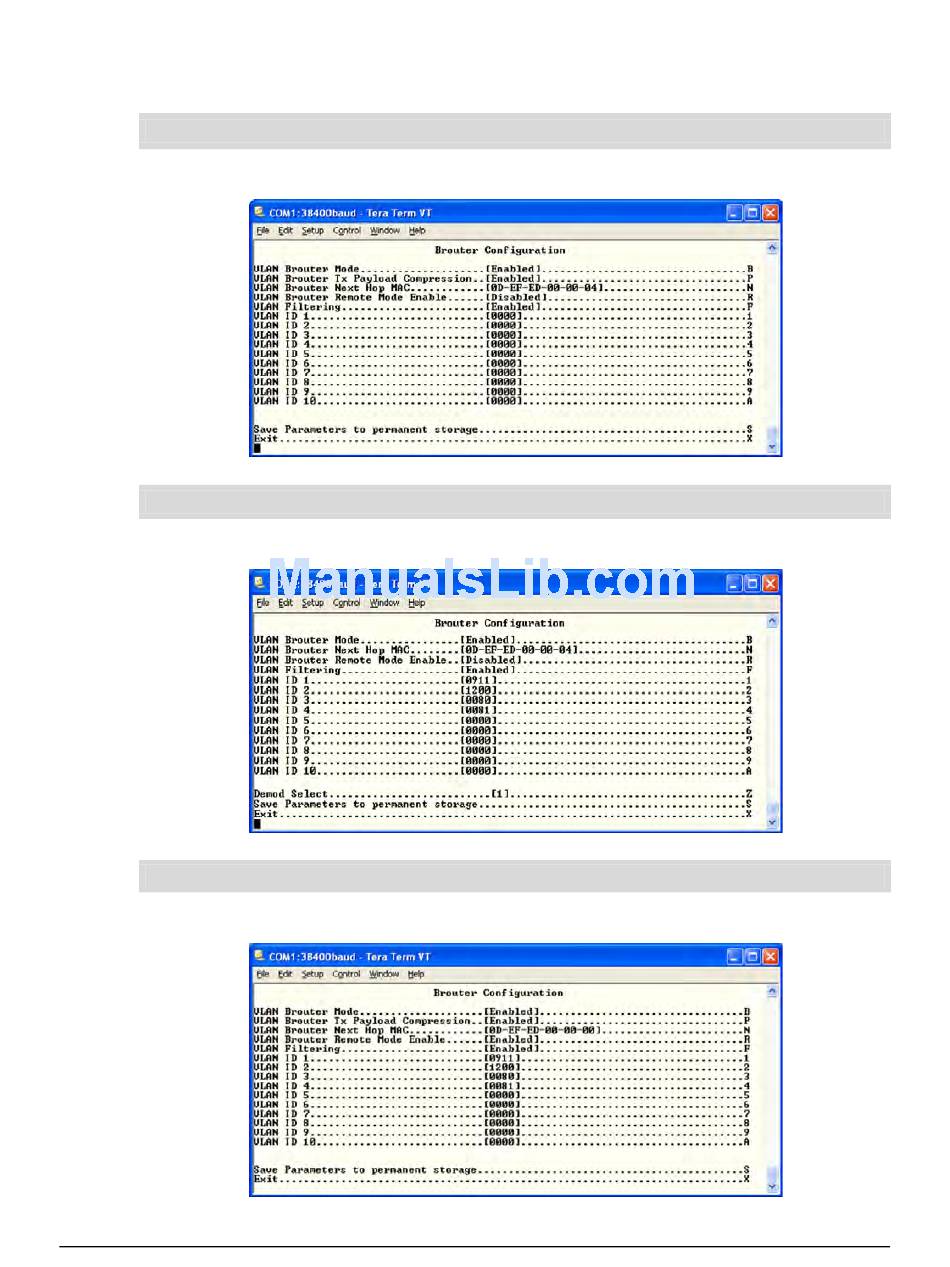

Each Comtech EF Data product, as depicted in this network example, is configured as follows:

Hub Site – CDM-IP Modem

IP Address: 10.10.1.1

VLAN Match Filter – Enabled

Hub Site – CDD-564/L Quad Demodulator

IP Address: 10.10.1.2

VLAN Match Filter – Enabled

Remote Site 'A' – CDM-IP Remote Modem 'A'

IP Address: 10.10.1.3

VLAN Match Filter – Enabled

((Demodulator #1 shown)
