CDM-570L/570AL Satellite Modem with Optional Packet Processor
Appendix D
Step Task

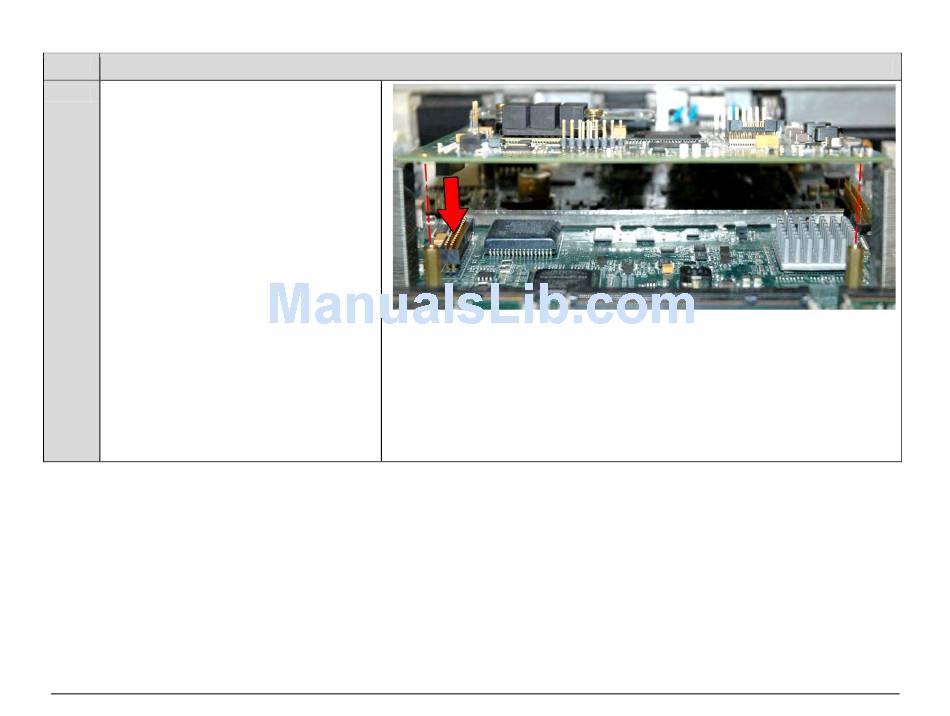

3 Prepare the Packet Processor Card for
installation by aligning its receptacle with the
mating connector on the modem's framing board.
Tilt the board slightly, in a downward angle, to
align the RJ-45 and RJ-11 ports with their mating
chassis rear panel cutouts.
Then, plug the card firmly into the connector –
take care not to damage any top- or bottom-
mounted components.
Similarly, be sure not to damage the bottom of
the card on the chassis' mounting bosses while
plugging the card receptacle into its mating
connector.
Installation is complete once the the card
receptable is fully engaged within its mating
connector, and the mounting holes at the front
and rear of the card are aligned with the
mounting boss threaded holes.
