9.3.4.2 QoS Configuration > QoS Rules Configuration (Min/Max Mode)
Open the nested QoS Rules Configuration page from the QoS Configuration page.
When in Minimum/Maximum Mode, the QoS Rules Configuration page contains the same
options and fields as for Max/Pri Mode (see Sect. 9.3.4.1) with the following exceptions:
•
You cannot assign a Priority.
•
You may assign a Minimum Bandwidth, or you may otherwise press [Enter] to assign no Min
Bandwidth (displays as '0').
9.3.4.3 QoS Configuration > DiffServ Rules Configuration
Open the nested DiffServ Rules Configuration page from the QoS Configuration page.
In DiffServ Mode, the Packet Processor prioritizes all traffic by the DSCP value contained within
the IP header of each packet. All packets that do not have a DSCP value are placed in the Default
Queue and have a Priority of 9.

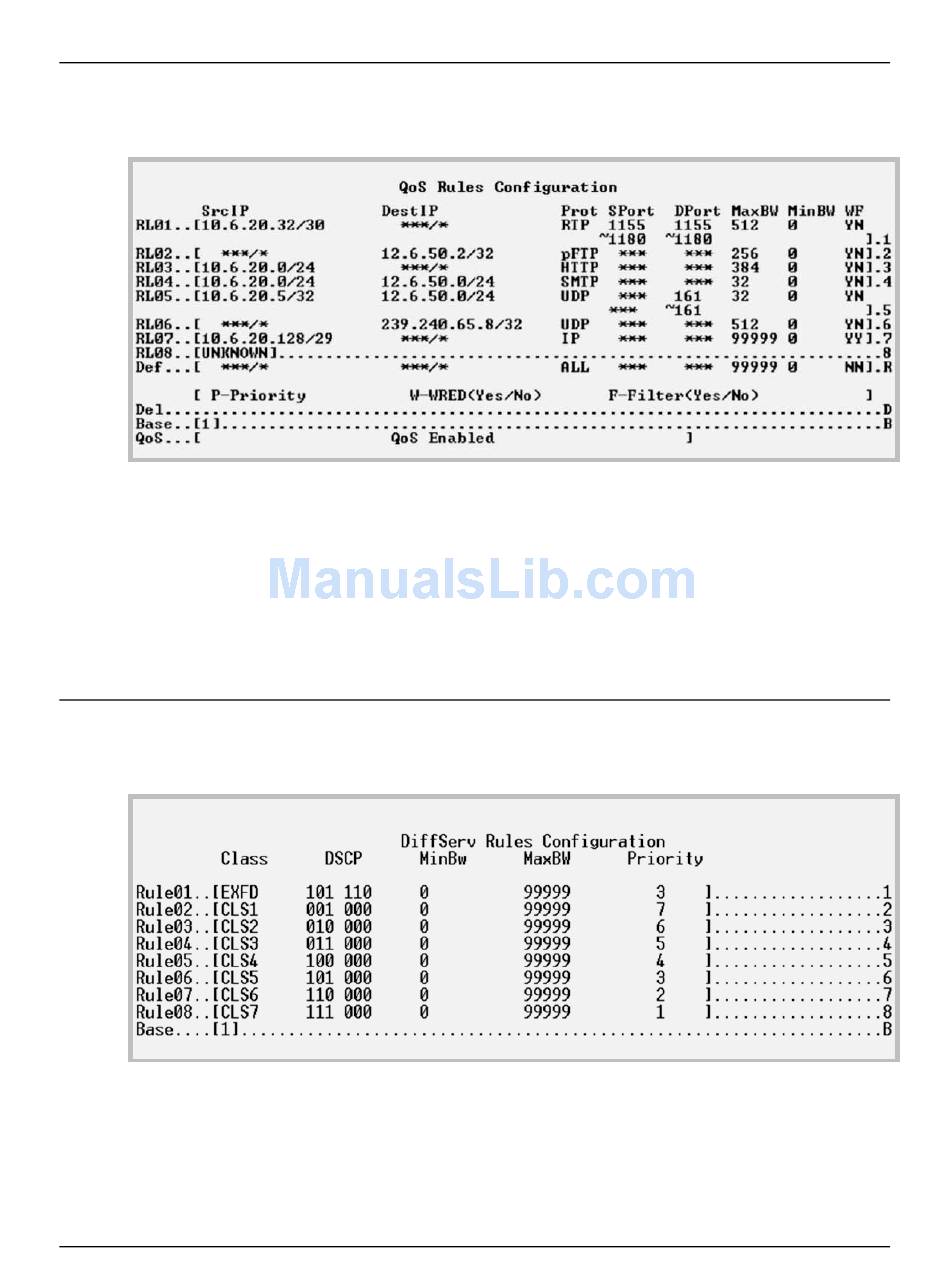

Figure 9-16. QoS Rules Configuration (Min/Max Mode)
Figure 9-17. DiffServ Rules Configuration
