As a comparison, looking at LDPC Rate 2/3 8-QAM and VersaFEC Rate 0.642 8-QAM essentially
identical spectral efficiency and Eb/No performance. However, at 64 kbps, the latency has been
reduced from 350 milliseconds to 89 milliseconds – a factor of 4 reduction.
The performance of the VersaFEC codes compared with the Shannon bound is shown in Figure B-1.
This puts the performance of VersaFEC at or near the DVB-S2 performance with 16 kbit blocks.
Note that SNR is defined as Eb/No + 10
B.6.1

VersaFEC Extensions

B.6.1.1

Extended CCM Codes

Two additional rates are available with the VersaFEC family of codes. Note that these are CCM
(Constant Coding and Modulation) only – they are NOT included in the ACM set of ModCods.
These two codes (see Table B-4) have been added to fill in perceived gaps in the progression of
spectral efficiency versus SNR. They do not, in fact, provide any discernible improvement in
Eb/No performance (compared with their nearest neighbors in the initial VersaFEC family), but
exhibit a modest SNR improvement.
Code
Modulation
Rate
8-QAM 0.576
16-QAM 0.644

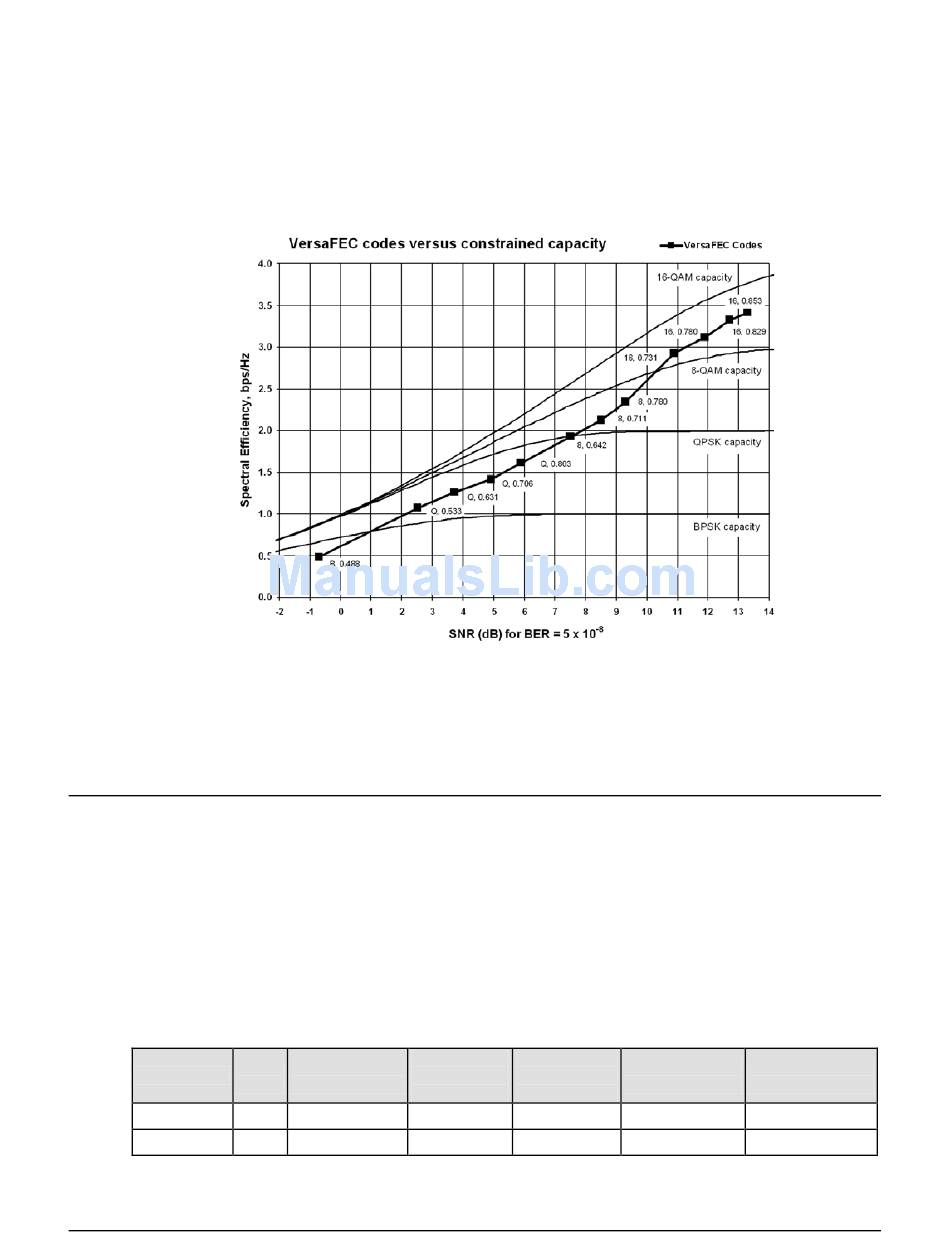

Figure B-1. VersaFEC Codes versus Shannon Capacity
log

Table B-4. Extended CCM Codes

Spectral efficiency,
Eb/No, for
bps/Hz
BER = 5 x 10
1.73
2.58
(Spectral Efficiency).
Typical Latency at
64 kbps, in
milliseconds
-8
4.5 dB 87
6.5 dB 121
B–8
MN-CDM570A
Revision 3
Min. Data Rate, Max. Data Rate, CCM
CCM Mode (kbps) Mode (Mbps)
8.3 5.179
12.4 7.726
