Tadiran Telecom Emerald ICE Installation & Maintenance Manual page 97

5-8
Emerald ICE Installation, Programming & Maintenance Manual
5. When all changes are complete, press the Volume button (
return to the DB Item Select Screen or exit programming.
RMP Programming
1. Access the RMP using the procedures described in Section 3.3.

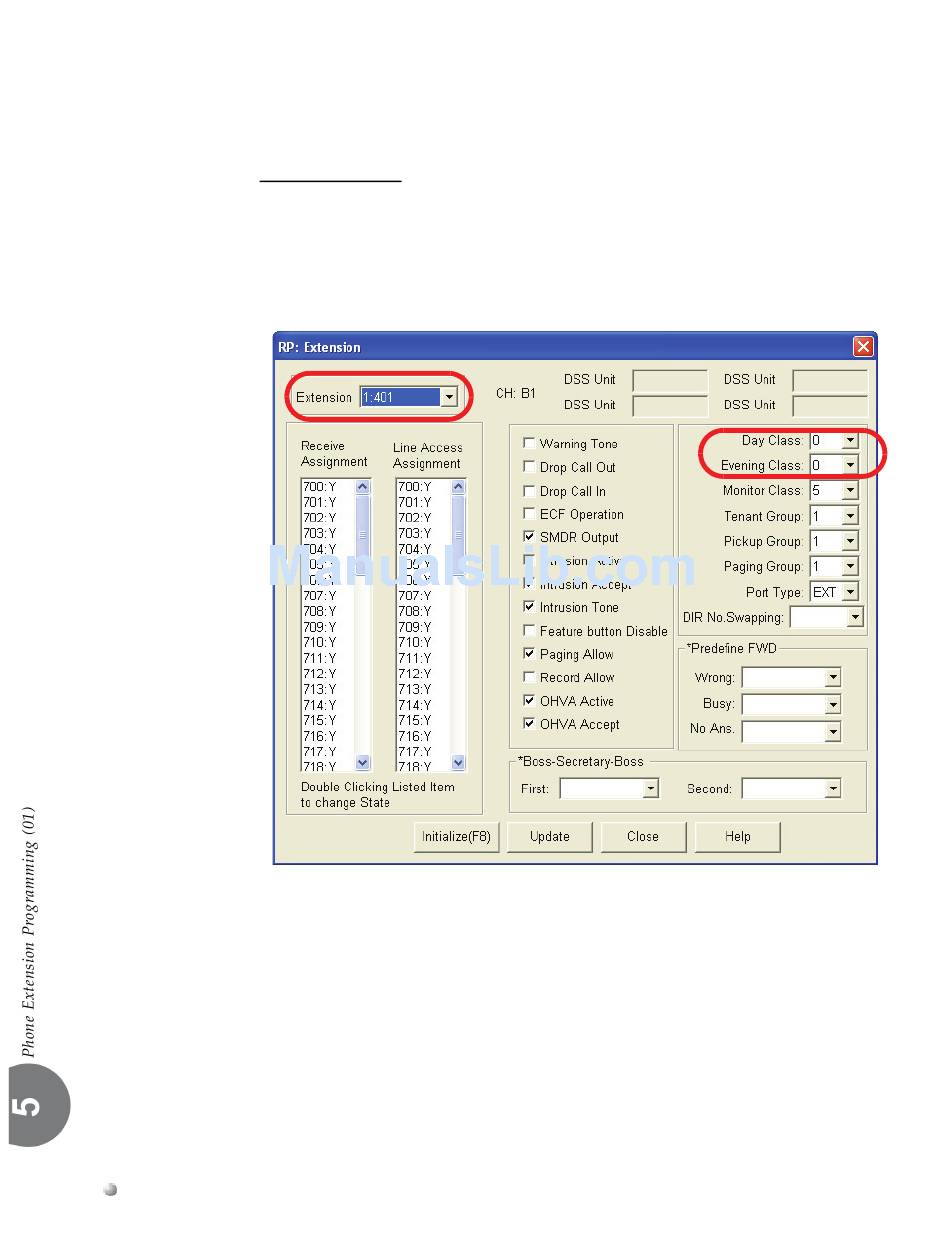

2. Select RP, Extension from the toolbar to display the following window.
3. Using the drop‐down list in the Extension field, select an extension to
program.
4. Using the drop‐down lists in the Day Class and Evening Class fields,
select a Day Class: COS and/or an Evening Class: COS for the Extension
selected using the drop down lists in the respective fields.
5. Click on the Update button, follow the prompts and repeat steps 3 through
5 for other extensions, as necessary.
6. Continue other programming or click on the Close button to close the
window without making changes or click on the Update button and follow
the prompts to save the database changes.
v
) to
