Tadiran Telecom Emerald ICE Installation & Maintenance Manual page 87

4-10
Emerald ICE Installation, Programming & Maintenance Manual

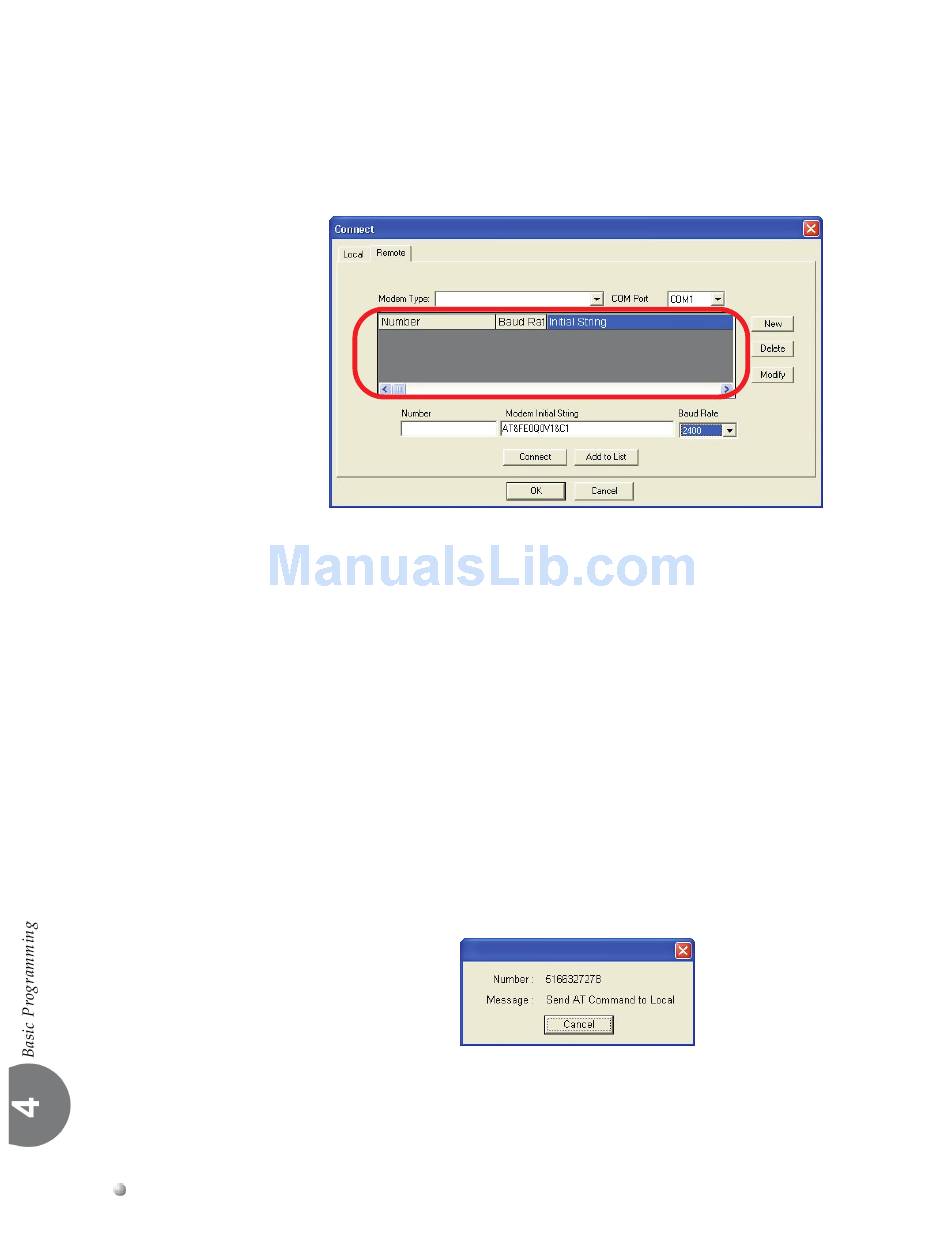

Remote Connection
6. With the Remote tab selected, connection with the Emerald ICE using a
modem connection is possible. Click on the Remote tab to display the
following:
7. In the Modem Type field, select the modem to use. The corresponding
modem COM Port will appear in the Com Port field. Further, the Modem
Initial String will appear in the Modem Initial String field.
8. Select a Baud Rate for communications using the Baud Rate drop‐down
list.
9. Enter a 10‐digit Modem Telephone Number in the Number field.
10. Click on the Add to List button and the modem information will be
displayed in the Display Area of the window.
11. Repeat steps 7 through 9 to add additional modems.
12. To connect with the RMP , click on the Connect button. A connect‐progress
window will be displayed as shown below. The connect process will
time‐out in 10 seconds if a connection is not established. If a connection
cannot be made after a second attempt, repeat these procedures from step
5, verifying Modem Type, Modem Initial String and Baud Rate .
