Tadiran Telecom Emerald ICE Installation & Maintenance Manual page 124

Program call logging conditions (Outgoing/Incoming/Account Code):

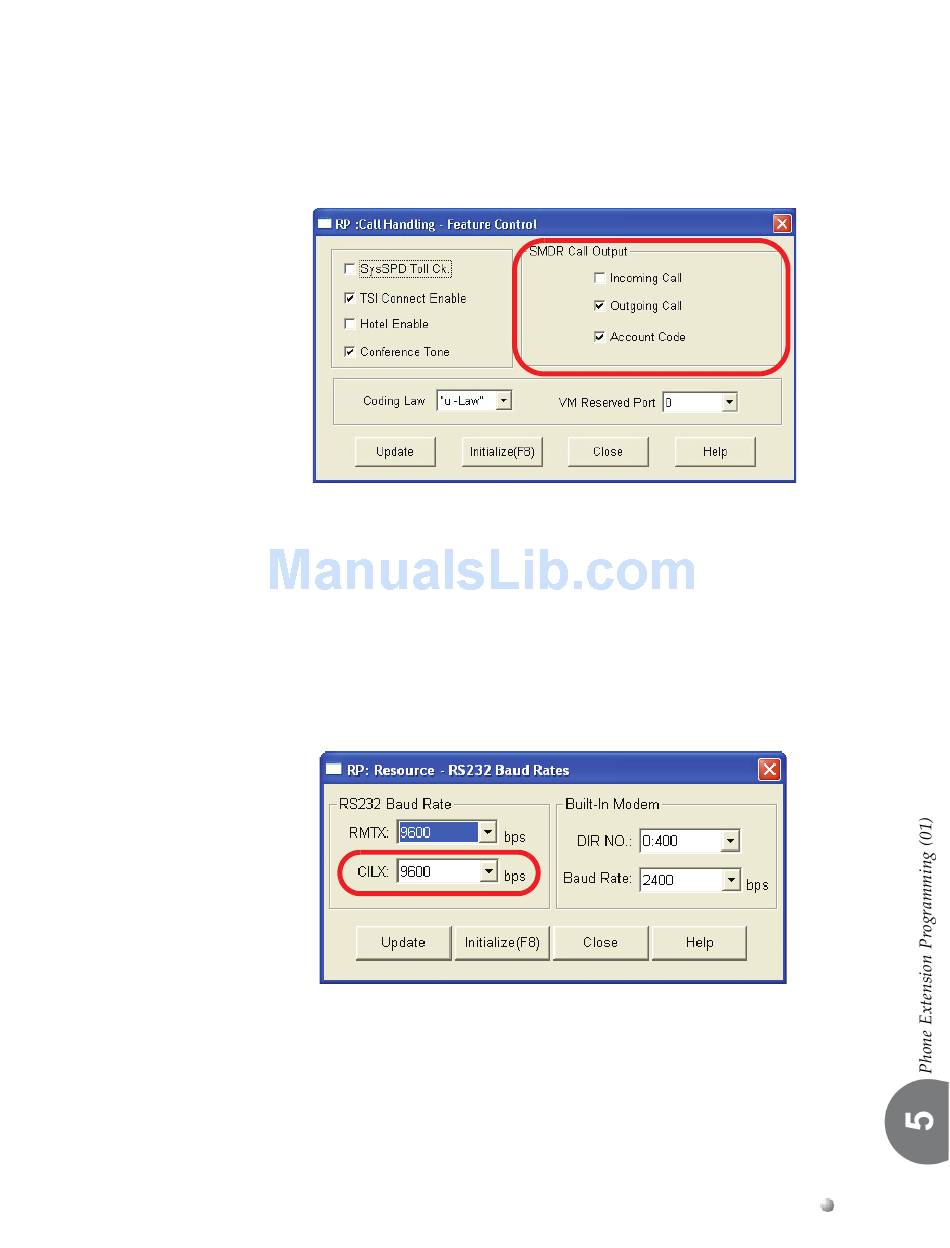

6. Select RP, Call Handling‐Feature Control from the toolbar to display the
following window.
7. To enable call logging for Incoming/Outgoing/Account Codes , click on the
checkboxes next to the appropriate fields.
8. Click on the Update button and follow the prompts to update the database
changes.
Program the (CIL) Call Information Log serial port baud rate (CIL X_RATE):
9. Select RP, Resource, Modem & Serial Port from the toolbar to display the
following window.
8. In the CILX: field, use the drop‐down list to select the CILX baud rate. The
default setting is 9600 . (Range is 1200/2400 ... 19200 .)
9. Click on the Update button and follow the prompts to save the database
changes.
Emerald ICE Installation, Programming & Maintenance Manual
5-35
