Tadiran Telecom Emerald ICE Installation & Maintenance Manual page 176

RMP Programming
1. Access the RMP using the procedures described in Section 3.3 .

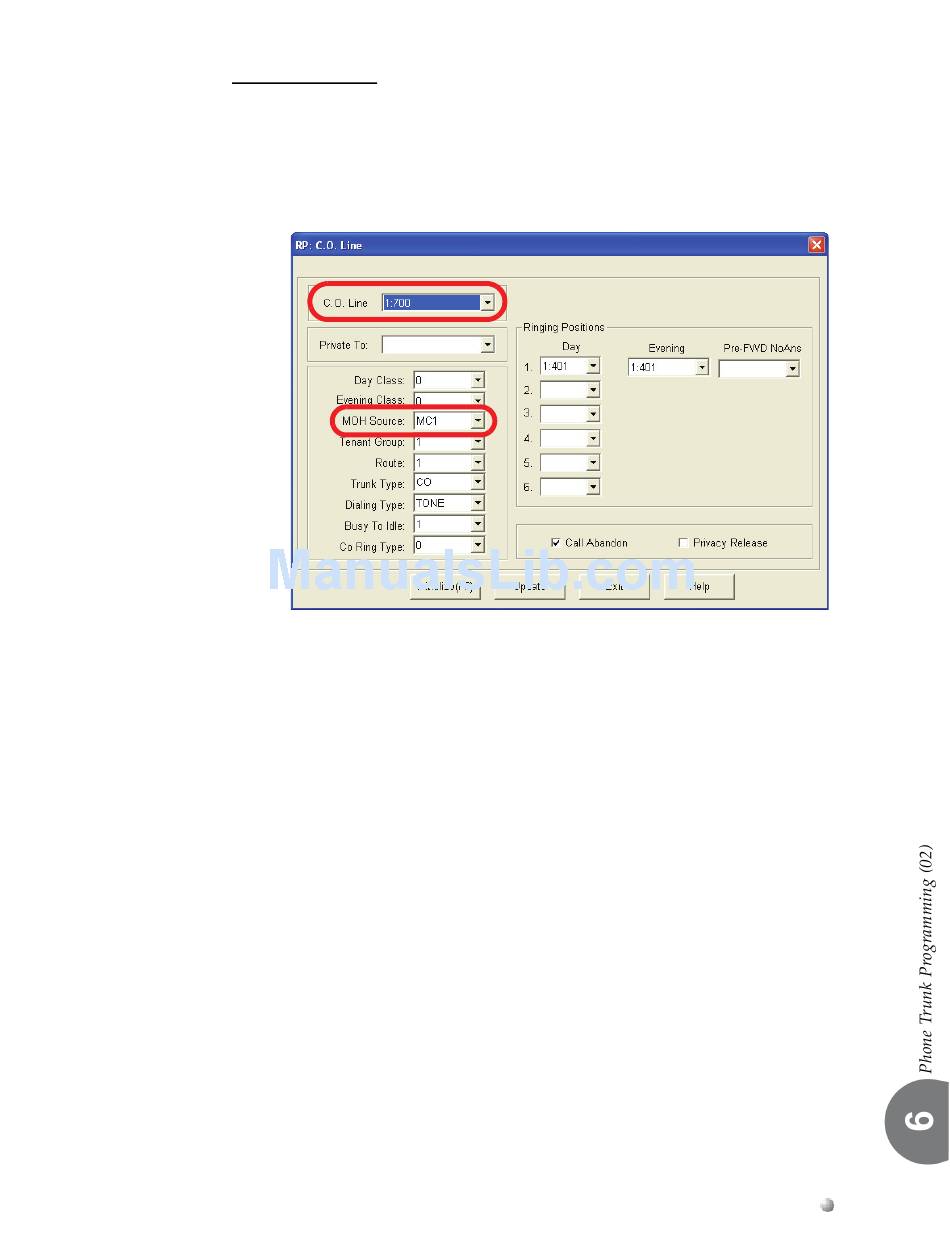

2. Select RP, CO Line from the menu bar to display the following:
3. Using the drop‐down list in the CO Line field, select a CO Line to
program.
4. Select the MOH Source from the drop down list. MOH SOURCE values to
select are MC1 , MC2 , or TONE. MC1 can be either the Internal synthesized
music (Green‐Sleeves) or the External Music Channel source connected to
ʺJB2‐Music1ʺ on the CCB. MC2 is an external music source connected to
ʺJB3‐Music2ʺ on the CCB. TONE is a short tone (beep) generated by the
system and heard by outside callers.
5. Click on the Update button, follow the prompts and repeat steps 3 and 4
for other CO lines, as necessary.
6. Click on the Close button to close the window without making changes or
click on the Update button and follow the prompts to save the database
changes.
Emerald ICE Installation, Programming & Maintenance Manual
6-27
