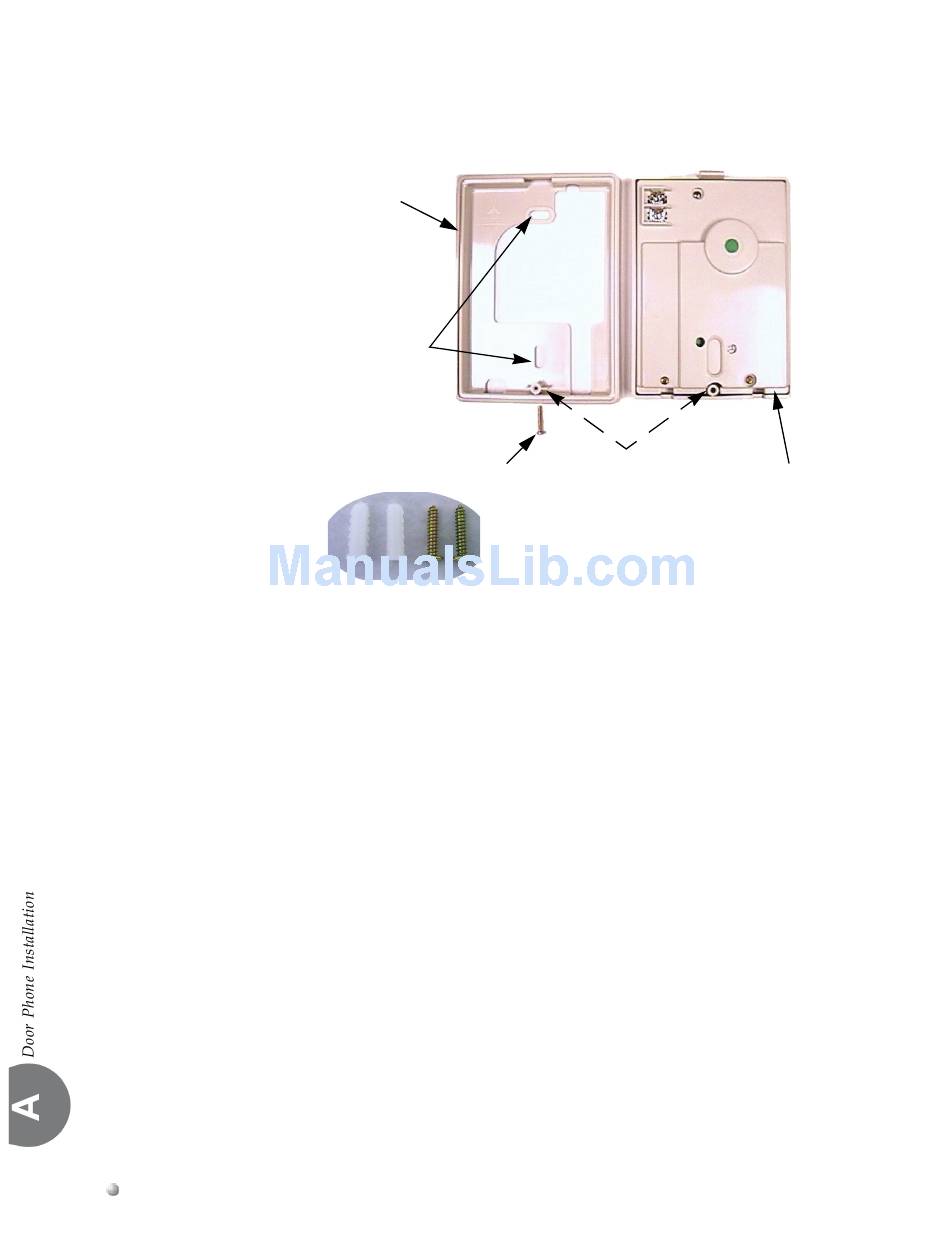

3. Remove the Mounting Bracket from the Door Phone by removing the
Mating Screw.
Mounting Bracket
Mounting Holes
Mating Screw
Mounting Hardware
4. Install the Mounting Bracket on the desired Door Phone location using the
mounting screws and moorings supplied. The Mounting Bracket should be
secured using the mounting holes. The location should be close to a wiring
accsess point and the door being locked or unlocked.
5. The 24th and 25th pairs are used on the connector to the 610+2 card and
connected with the SLT2 and SLT1 connections on the card as follows:
Extension 411 ‐ SLT1 ‐ violet‐brown pair
Extension 412 ‐ SLT2 ‐ violet‐slate pair.
Door Phone
