Tadiran Telecom Emerald ICE Installation & Maintenance Manual page 143

5-54
Emerald ICE Installation, Programming & Maintenance Manual
Program UCD Group Members:

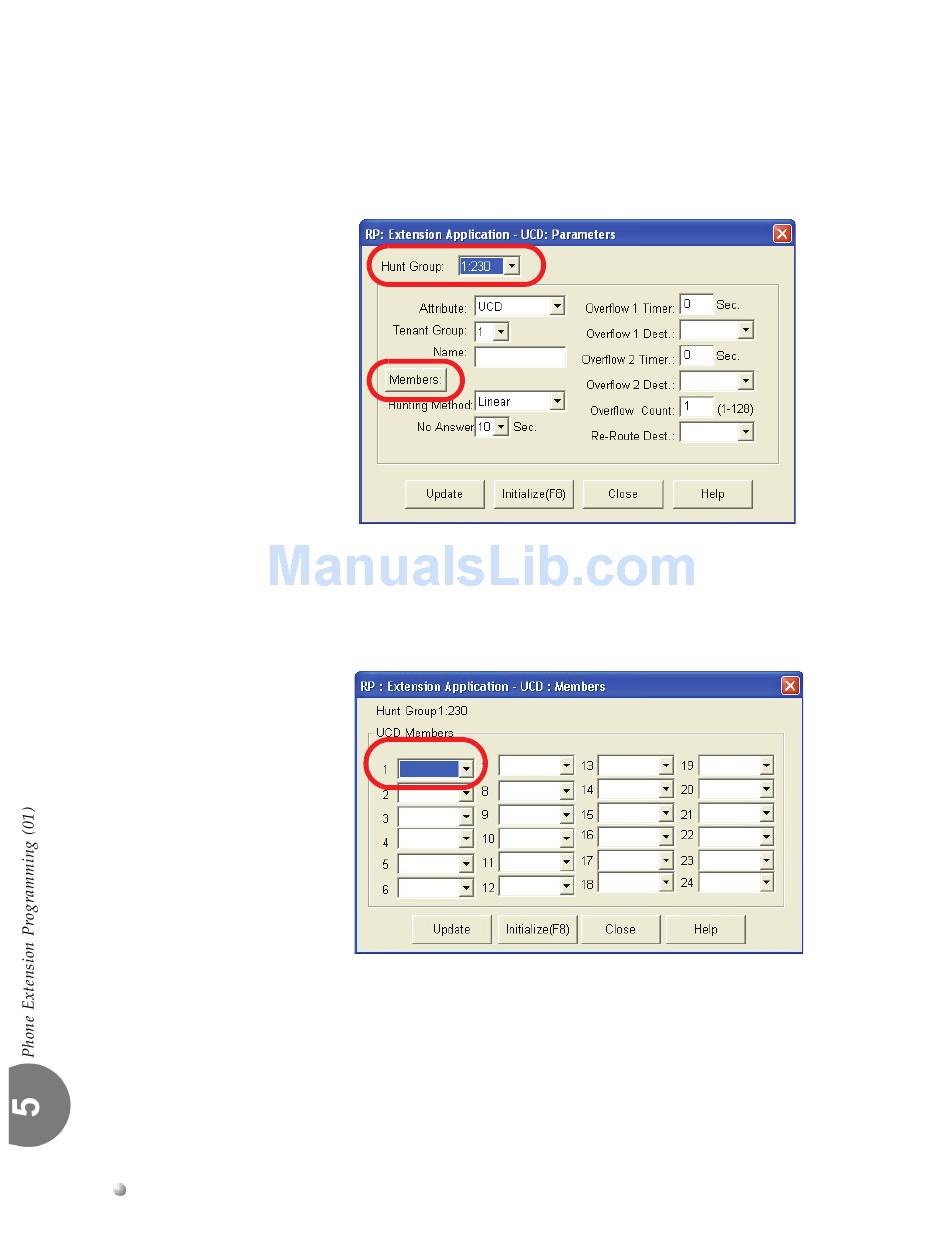

7. Select Extension Application, Uniform Call Distribution, from the toolbar
to display the following window.
8. Using the drop‐down list in the Hunt Group field, select the UCD Group
to program as the Hunt Group (usually 24).
9. Click on the Members button to display the following:
10. Using the drop‐down lists provided, select the extension number of the
analog port to program as this member of the VM UCD Group. Repeat
until all analog extensions connected to VM are programmed.
11. Click on the Update button and follow the prompts to save the database
changes.
