A-8
Emerald ICE Installation, Programming & Maintenance Manual
RMP Programming
1. Access the RMP using the procedures described in Section 3.3.

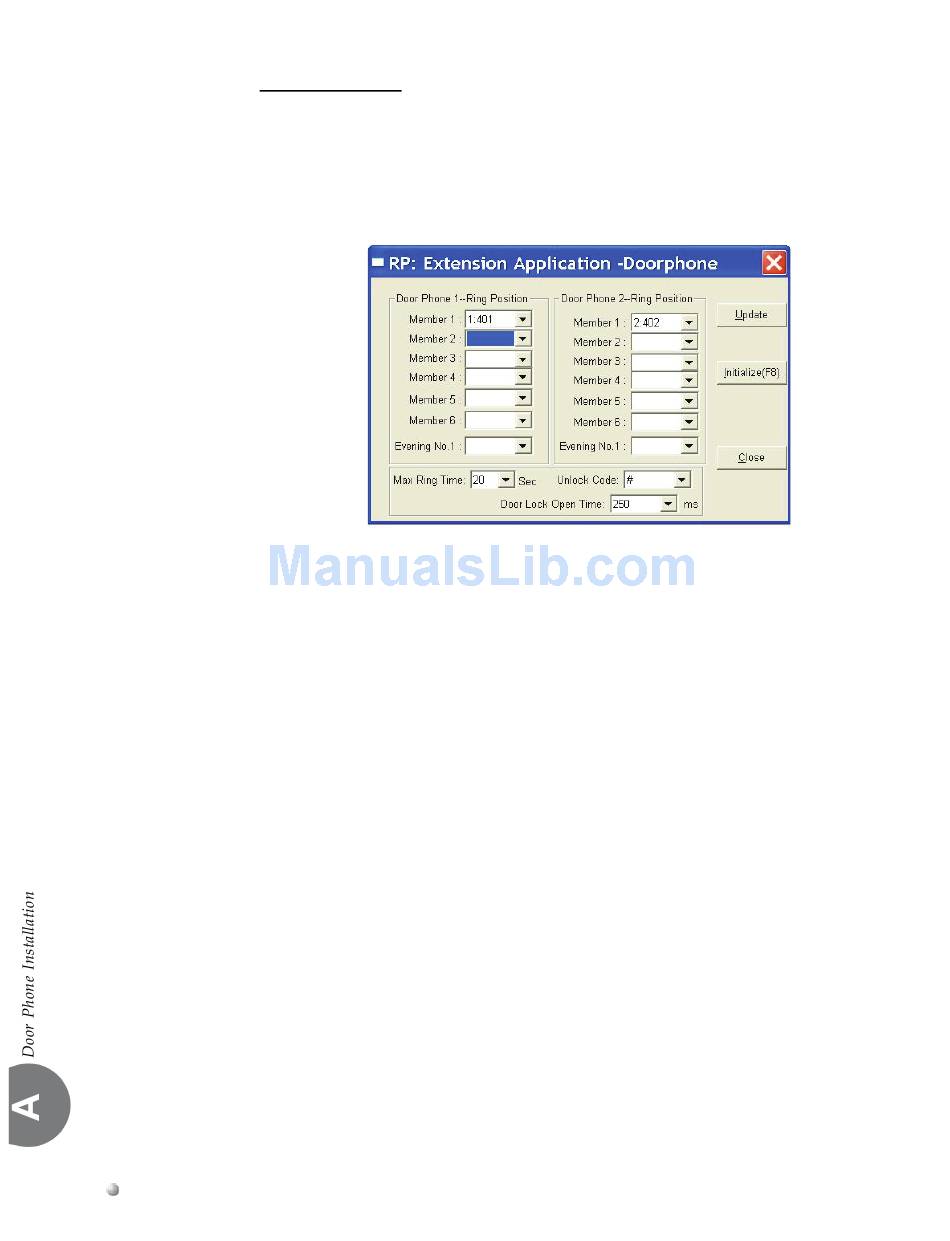

2. Select RP, Extension Application, Door Phone from the toolbar to display
the following window.
Door Phone 1 represents extension 411. Door Phone 2 represents extension
412.
Using the drop down lists, select extensions and and timers as follows:
Member (1‐6) ‐ When the Emerald ICE system is in the Day Service Mode, up
to 6 extensions/Hunt Groups (UCD) may be assigned to ring for the Door
Phone. (Range: 401‐472, 230‐253).
Evening No. ‐ When the Emerald ICE system is in the Night Service Mode, 1
extensions/Hunt Groups (UCD) may be assigned to ring for the Door Phone.
(Range: 401‐472, 230‐253).
Max Ring Time: ‐ Since the Door Phone Call button can be pressed and then
abandoned, a maximum ring time must be set. (Range: 10, 20, ...60; Default:
20).
Unlock Code: ‐ While connected to the Door Phone and dial pad digit can be
pressed to trigger the relay and operate the door opener. This code can be
changed here. (Range: 0‐9, *, #; Default: #)
Door Lock Open Time: ‐ This timer determines how long the relay operates
when the Unlock Code is dialed. (Range: 50~5000 milliseconds; Default: 250
milliseconds).
