Tadiran Telecom Emerald ICE Installation & Maintenance Manual page 107

5-18
Emerald ICE Installation, Programming & Maintenance Manual
RMP Programming
1. Access the RMP using the procedures described in Section 3.3.

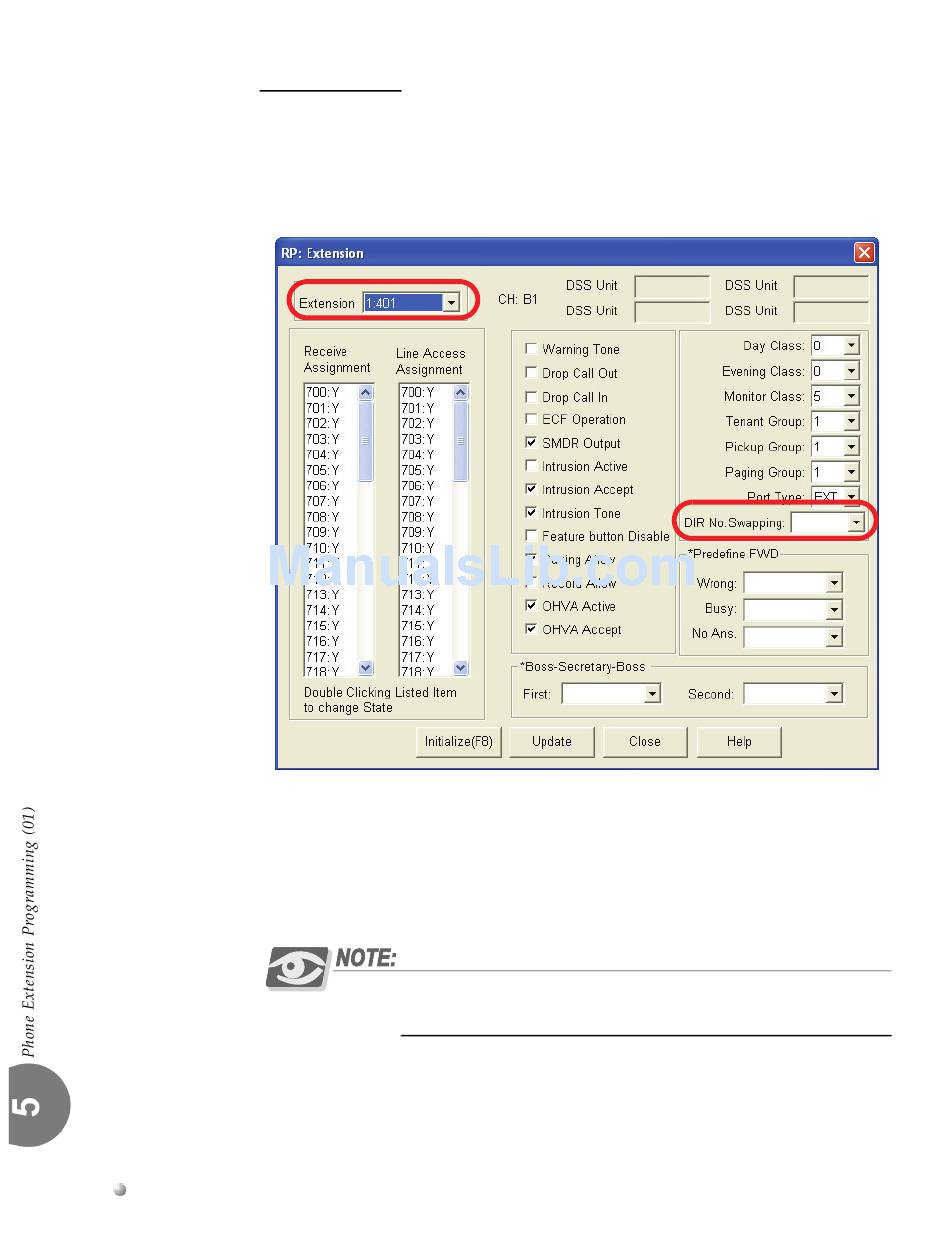

2. Select RP, Extension from the toolbar to display the following window.
3. Using the drop‐down list in the Extension field, select an extension to
program.
4. Using the drop‐down list in the DIR No. Swapping field, select a new
directory number for this extension. If this directory number was in use at
another extension port, that port is immediately reassigned the directory
number previously assigned to the port where the swap was invoked.
The directory number must be a valid Extension Directory Number as
allocated in System Applications – Numbering Plan 2.
5. Click on the Update button, follow the prompts and repeat steps 3 through
5 for other extensions, as necessary.
