Tadiran Telecom Emerald ICE Installation & Maintenance Manual page 213

7-32
Emerald ICE Installation, Programming & Maintenance Manual
Program CO Lines for Call Abandon:
3. Using the drop‐down list in the CO Line: field, select a CO Line to
program.
4. Using the checkbox in the Call Abandon field, click on the checkbox to
program the selected CO Line with Call Abandon.
5. Click on the Update button, follow the prompts and repeat steps 3 and 4
for other CO lines, as necessary. Program Call Abandon Timers as required
to match the CO operation.

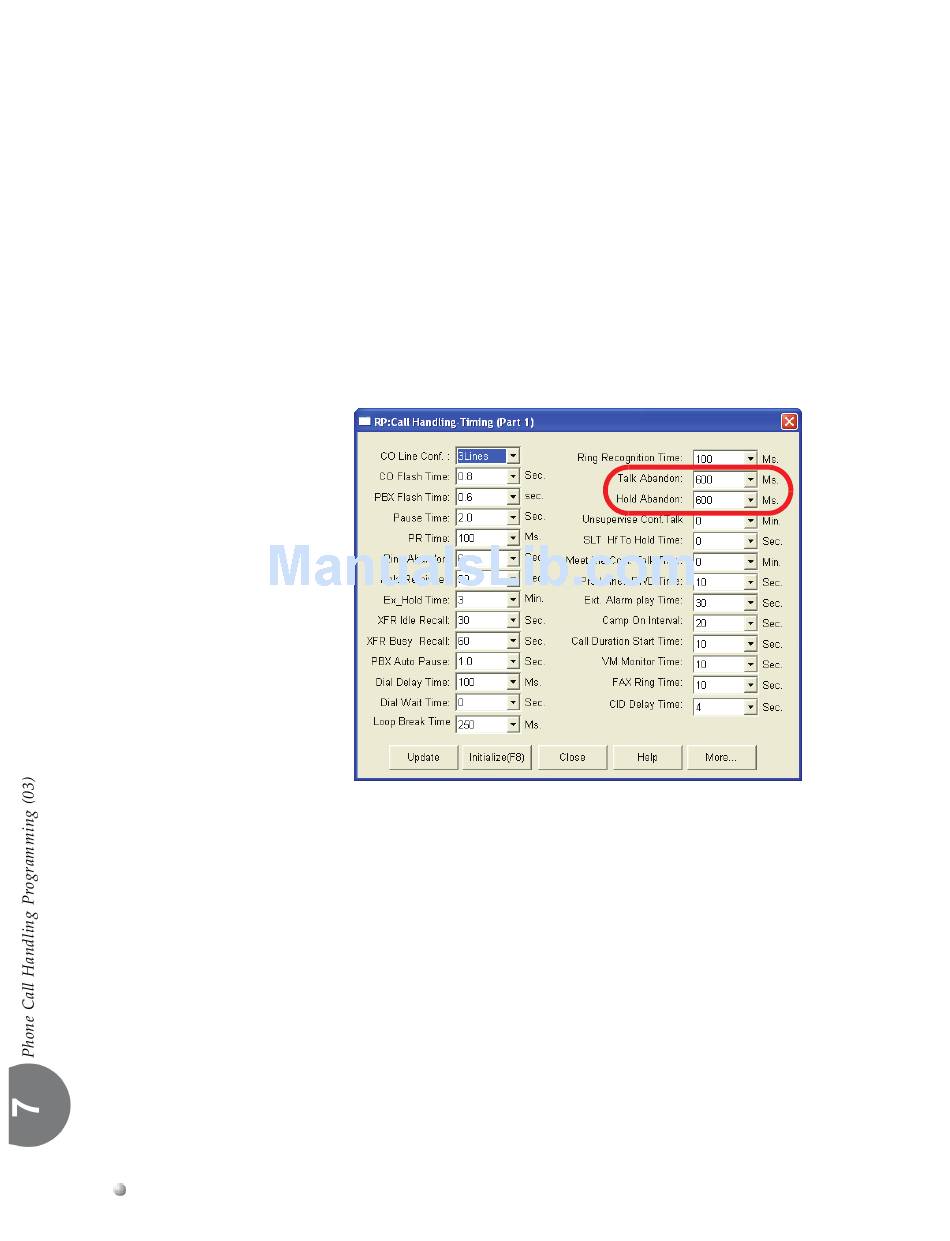

6. Select RP, Call Handling, Timers from the menu bar to display the
following window.
7. Using the drop‐down lists in the Talk Abandon: and Hold Abandon: fields,
select a Talk or Hold Abandon time, in microseconds, of between 50‐1000,
in increments of 50.
8. Continue other programming or click on the Close button to close the
window without making changes or click on the Update button and follow
the prompts to save the database changes.
