Tadiran Telecom Emerald ICE Installation & Maintenance Manual page 156

RMP Programming
1. Access the RMP using the procedures described in Section 3.3.

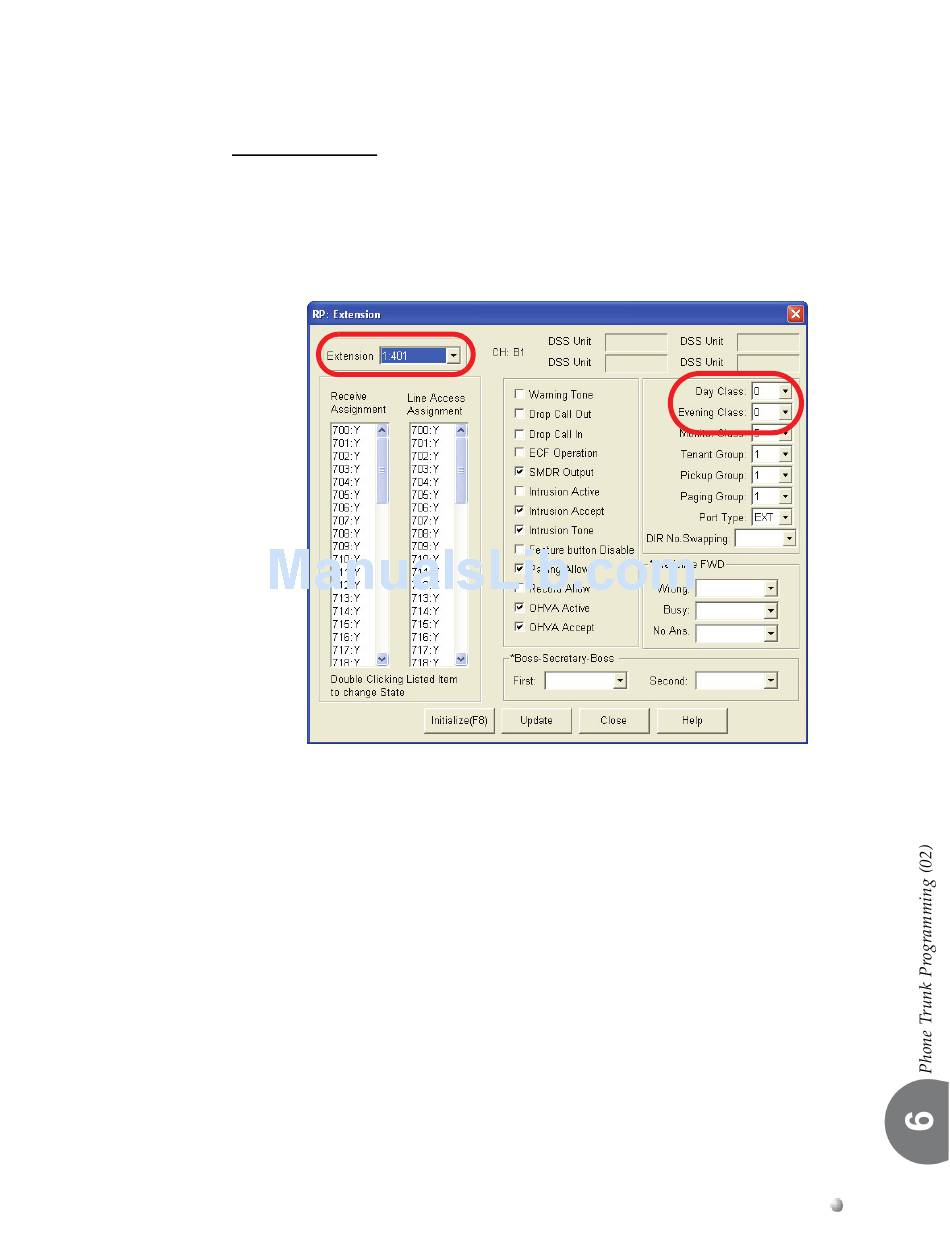

2. Select RP, Extension from the menu bar to display the following window.
Program Extension COS as required:
3. Using the drop‐down list in the Extension: field, select an Extension to
program a COS for.
.
4 Using the drop‐down lists in the Day Class: and Evening Class: fields,
select a COS for Day and Evening for the Extension selected. (Class of
Service – Day ‐Range is 0‐7. Class of Service – Evening ‐Range is 0‐7.)
5. Click on the Update button, follow the prompts and repeat steps 3 and 4
for other extensions.
6. Continue other programming or click on the Close button to close the
window without making changes or click on the Update button and follow
the prompts to save the database changes.
Emerald ICE Installation, Programming & Maintenance Manual
6-7
