GD310-UL series VFD
Flange installation dimension of 460V G-type 1.5–200kW VFDs (unit: mm)
Model
GD310-(1R5G-2R2G)-4-UL 150 115 130 7.5 234 220 190 16.5 174.5 65.5
GD310-(004G-5R5G)-4-UL 170 131 150 9.5 292 276 260 10
GD310-(7R5G-011G)-4-UL 191 151 174 11.5 370 351 324 15 216.2 113
GD310-(015G-018G)-4-UL 250 210 234 12 375 356 334 10
GD310-(022G-030G)-4-UL 275 237 259 11 445 426 404 10
GD310-(037G-055G)-4-UL 270 130 261 65.5 555 540 516 17
GD310-(075G-110G)-4-UL 325 200 317 58.5 680 661 626 23
GD310-(132G-200G)-4-UL 500 180 480 60 870 850 796 37
Flange installation dimension of 460V P-type 5.5–220kW VFDs (unit: mm)
Model
GD310-(5R5P-7R5P)-4-UL 170 131 150 9.5 292 276 260 10
GD310-(011P-015P)-4-UL 191 151 174 11.5 370 351 324 15 216.2 113
GD310-(018P-022P)-4-UL 250 210 234 12 375 356 334 10
GD310-(030P-037P)-4-UL 275 237 259 11 445 426 404 10
GD310-(045P-055P)-4-UL 270 130 261 65.5 555 540 516 17
GD310-(075P-110P)-4-UL 325 200 317 58.5 680 661 626 23
GD310-(132P-220P)-4-UL 500 180 480 60 870 850 796 37

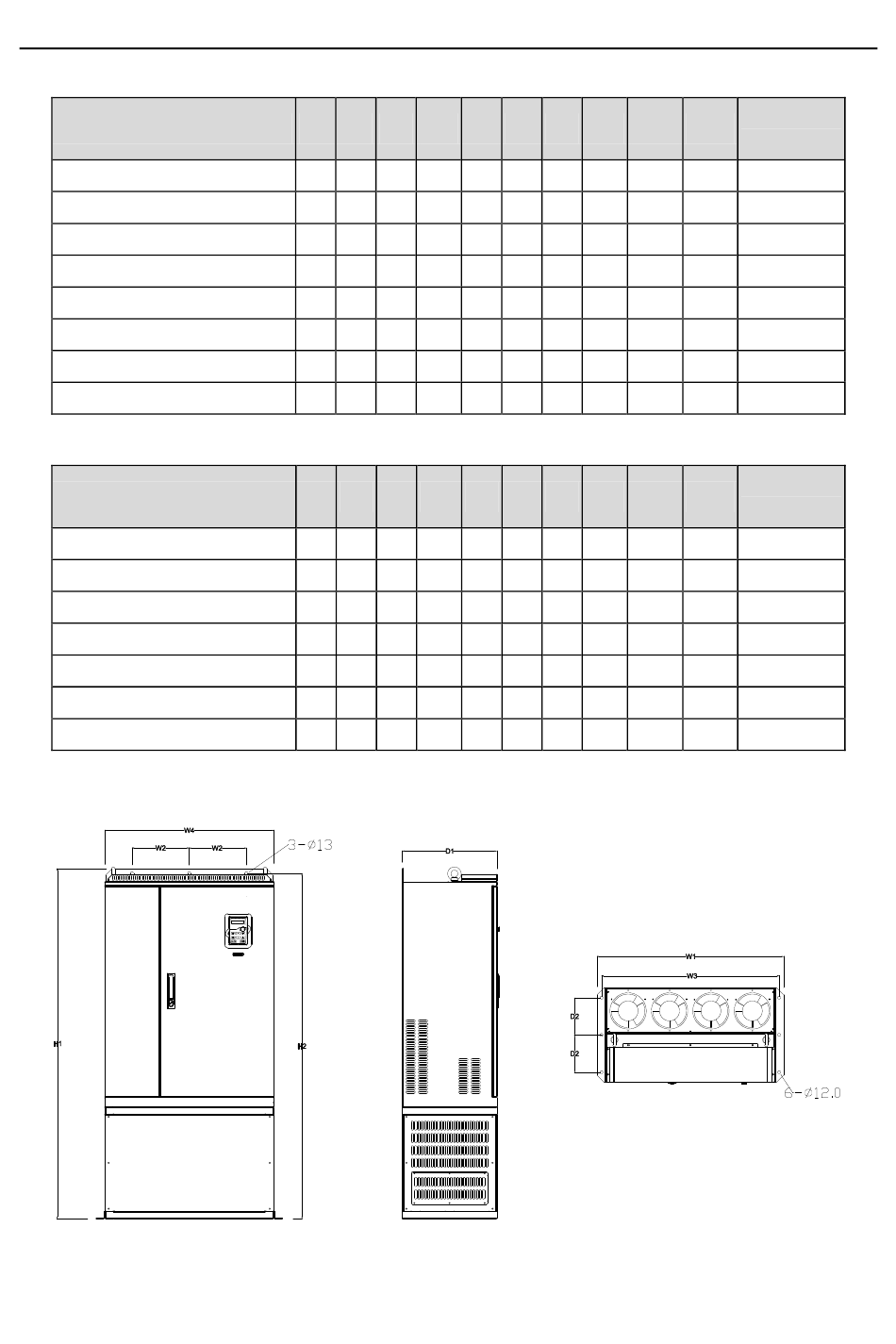

C.4.3 Floor installation
Floor installation of 460V G-type 220–315kW, P-type 250–350kW VFDs
W1 W2 W3 W4 H1 H2 H3 H4
W1 W2 W3 W4 H1 H2 H3 H4
-236-
Dimension drawings
Installation
D1
D2
hole
Ø5
181
79.5
Ø6
Ø6
216
108
Ø6
245
119
Ø7
325
167
Ø7
363
182
Ø9.5
358 178.5
Ø11
Installation
D1
D2
hole
181
79.5
Ø6
Ø6
216
108
Ø6
245
119
Ø7
325
167
Ø7
363
182
Ø9.5
358 178.5
Ø11
