GD310-UL series VFD
Note:
1. The VFDs of 220V (18.5–55kW) and 460V (G-type≥37kW, P-type≥45kW) supports external DC
reactors and external braking units, but it is necessary to remove the copper tag between P1 and (+)
before connecting. DC reactors and external braking units are optional.
2. The VFDs of 220V (≤15kW), 460V (G-type≤30kW, P-type≤37kW) supports external braking
resistors which are optional.
3. The VFDs of 575V supports external DC reactors and external braking units, but it is necessary to
remove the copper tag between P1 and (+) before connecting. DC reactors and external braking units
are optional.

3.3 Product specification

Function
Input voltage (V)
Allowable Voltage
Power
Fluctuation
input
Input current (A)
Input frequency (Hz)
Output voltage (V)
Output current (A)
Power
output
Output power (kW)
Output frequency (Hz) 0–400Hz
Control mode
Technical
Motor type
control
feature
Adjustable-speed ratio
DC reactor
P1
R
S
T
PE

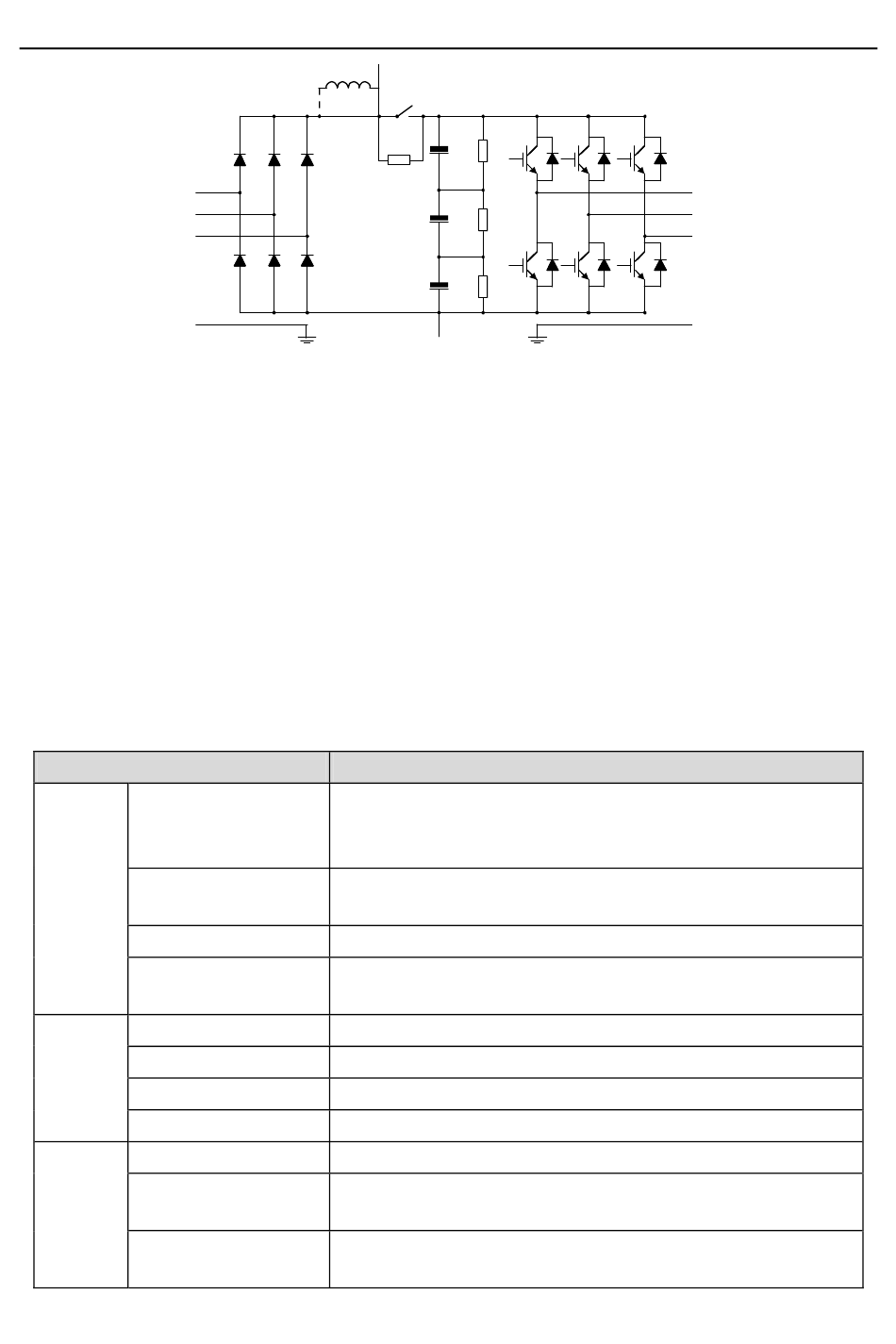

Figure 3-3 Simplified main circuit diagram (VFDs of 575V)
AC 3PH 200V–240V Rated voltage: 220V
AC 3PH 380V–480V Rated voltage: 460V
AC 3PH 520V–600V Rated voltage: 575V
-15%–+10%
Refer to Rated specifications
50Hz or 60Hz
Allowed range: 47–63Hz
0–input voltage
Refer to Rated specifications
Refer to Rated specifications
SVPWM, sensorless vector control (SVC)
Asynchronous motor and permanent magnet synchronous
motor
Asynchronous motor 1:200 (SVC) synchronous motor 1:20
(SVC)
(+)
(-)
Specification
-8-
Product Overview
U
V
W
PE
