GD310-UL series VFD Installation guidelines

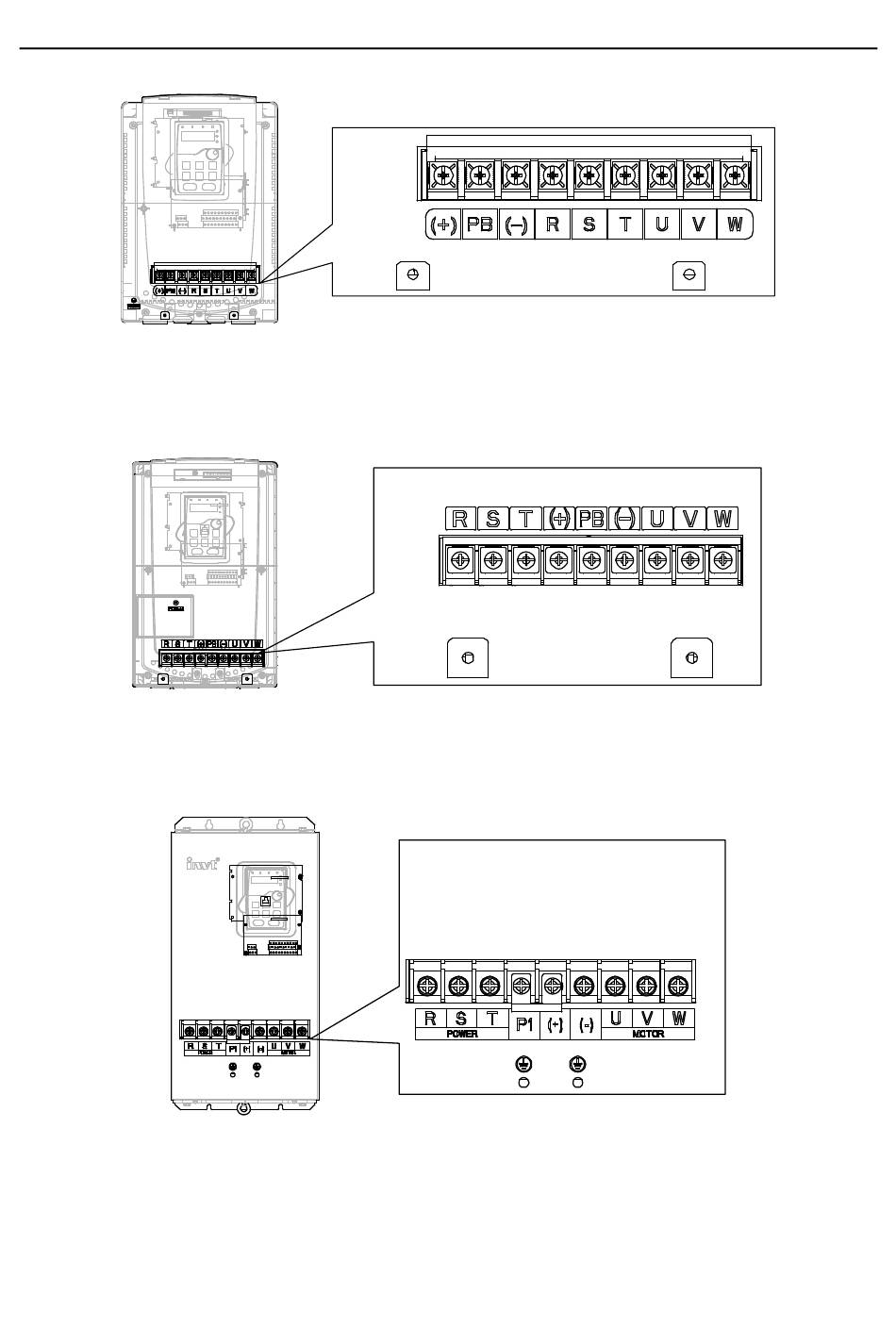

Figure 4-13 Terminals of main circuit for the VFDs of
220V 7.5kW and 460V G-type 15–18.5kW, P-type 18.5–22kW
Figure 4-14 Terminals of main circuit for the VFDs of
220V 11–15kW and 460V G-type 22–30kW, P-type 30–37kW
Figure 4-15 Terminals of main circuit for the VFDs of
220V 18.5–30kW and 460V G-type 37–55kW, P-type 45–55kW and 575V 18.5–37kW
