Appendix D Peripheral options and parts

D.1 What this chapter contains
This chapter describes how to select the options and parts of Goodrive310-UL series.
D.2 Peripheral wiring

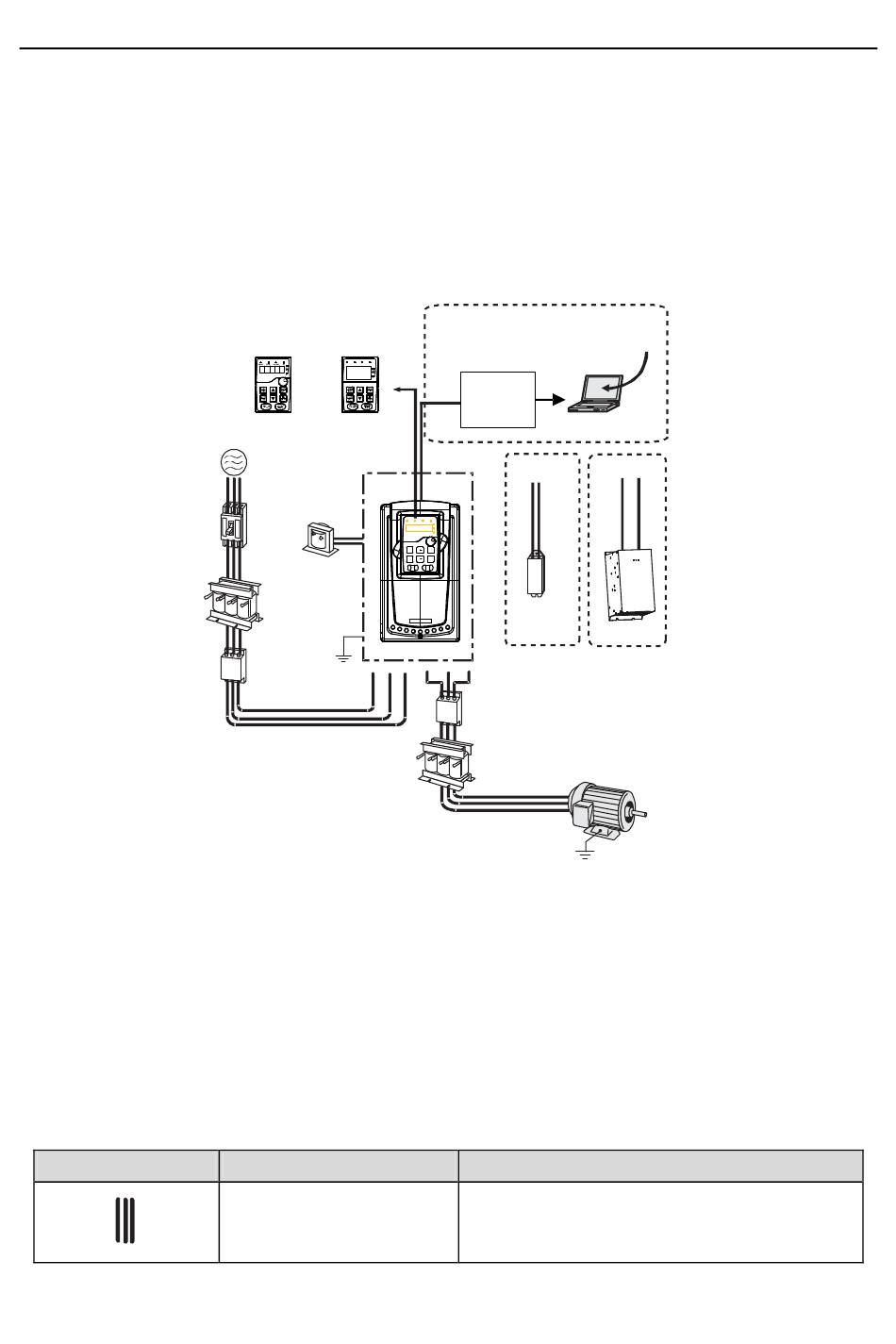

Below is the peripheral wiring of Goodrive310-UL series VFDs.
Note:
1. The VFDs of 220V (≤15kW) and 460V (G-type≤30kW, P-type≤37kW) are embedded with braking
unit.
2. The VFDs of 220V (18.5–55kW) and 460V (G-type≥37kW; P-type≥45kW) have P1 terminals and
are connected with external DC reactors.
3. The braking units apply standard braking units. Refer to the instruction of DBU for detailed
information.
Pictures
LED LCD
Standard Optional
Power supply
MC
P1
+
DC reactor
Input reactor
Earth
Input filter
Name
Cables
Upper PC
software
+
RS485
485
to
RS232
485 -
receiver
+
PB
Braking
resistor
Output filter
Output reactor
Device to transfer the electronic signals
-239-
Peripheral options and parts
-
+
Braking
unit
motor
Earth
Descriptions
