GD310-UL series VFD
Note:
 The fuse, DC reactor, braking unit, braking resistor, input reactor, input filter, output reactor,
output filter are optional parts. Please refer to Peripheral Optional Parts for detailed information.
 P1 and (+) are short circuited in factory, if need to connect with the DC rector, please remove the
jumper between P1 and (+).

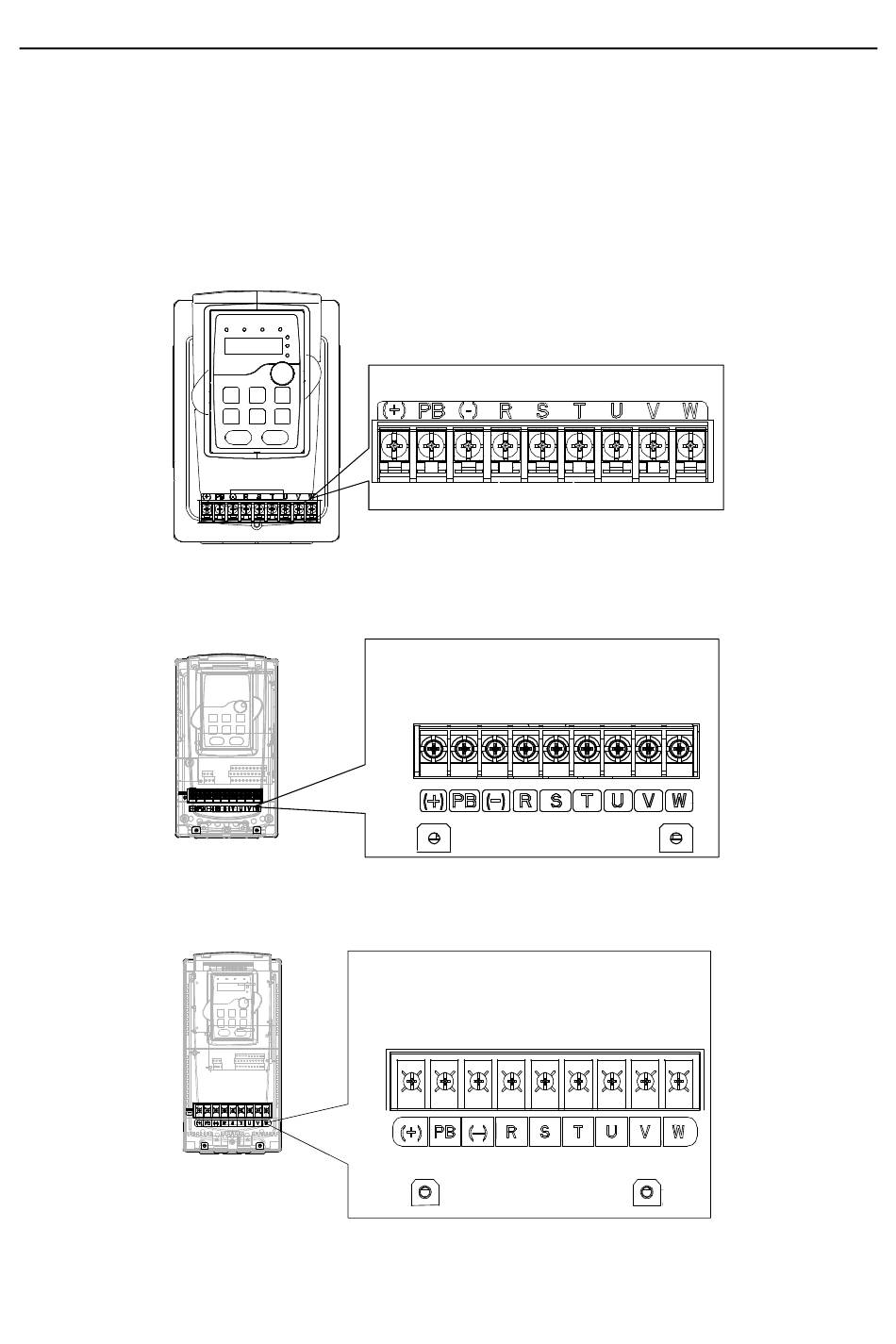

4.3.2 Terminals figure of main circuit

220V 1.5–2.2kW and 460V G-type 4–5.5kW, P-type 5.5–7.5kW
220V 4–5.5kW and 460V G-type 7.5–11kW, P-type 11–15kW
Figure 4-10 Terminals of main circuit for the VFDs of
220V 0.75kW and 460V G-type 1.5–2.2kW
Figure 4-11 Terminals of main circuit for the VFDs of
Figure 4-12 Terminals of main circuit for the VFDs of
-23-
Installation guidelines
