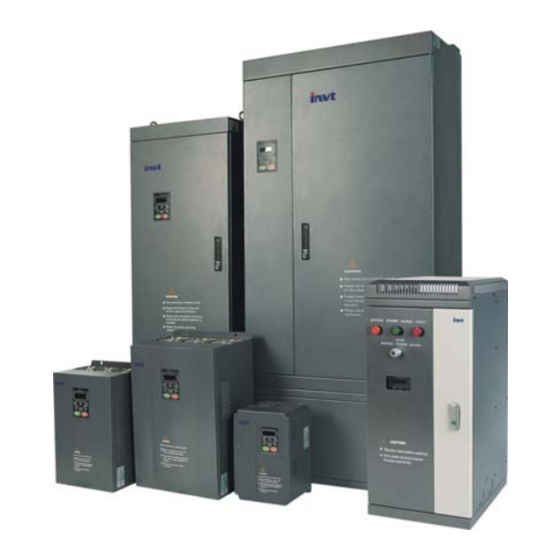

INVT CHE100-0R4G-S2 Operation Manuals

Che series sensorless vector control inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

CHE Series Sensorless Vector
Control Inverter
Operation Manual
Thank you very much for your buying CHE series sensorless vector control
inverter.
Before use, please read this manual thoroughly to ensure proper usage. Keep this
manual at an easily accessible place so that can refer anytime as necessary.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHE100-0R4G-S2 and is the answer not in the manual?

Questions and answers

Related Manuals for INVT CHE100-0R4G-S2

Summary of Contents for INVT CHE100-0R4G-S2

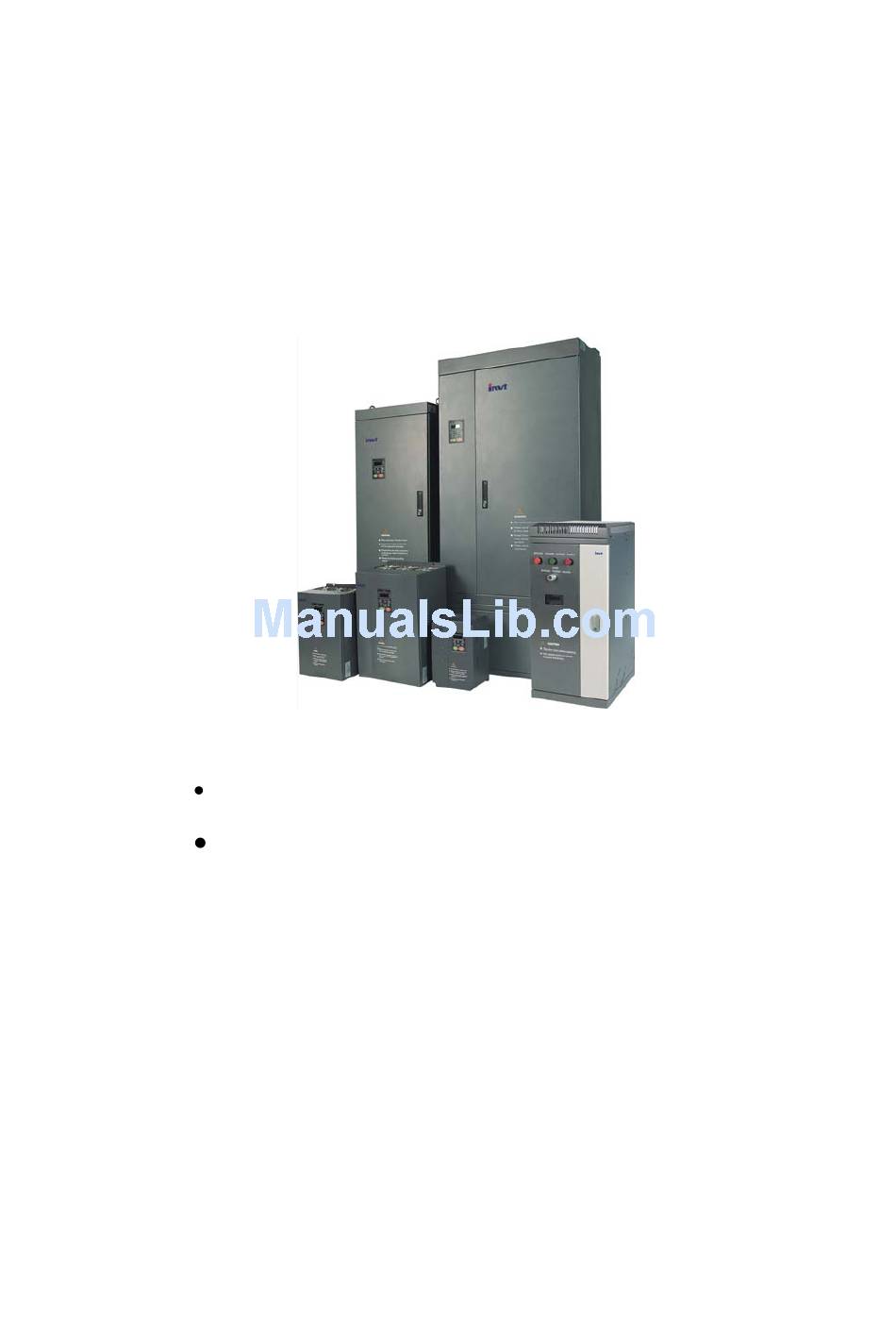

  • Page 1 CHE Series Sensorless Vector Control Inverter Operation Manual Thank you very much for your buying CHE series sensorless vector control inverter. Before use, please read this manual thoroughly to ensure proper usage. Keep this manual at an easily accessible place so that can refer anytime as necessary.
  • Page 2 Safety Precautions Please read this operation manual carefully before installation, operation, maintenance or inspection In this manual, the safety precautions were sorted to “WARNING” or “CAUTION”. Indicates a potentially dangerous situation which, if can not WARNING WARNING avoid will result in death or serious injury. Indicates a potentially dangerous situation which, if can not CAUTION CAUTION...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS .................... II LIST OF FIGURES ....................IV 1. INTRODUCTION....................1 1.1 Technology Features ..................1 1.2 Description of Name Plate ................2 1.3 Selection Guide .................... 2 1.4 Parts Description ..................4 1.5 External Dimension ..................5 2.
  • Page 4 5.2.1 Parameter setting................... 34 5.2.2 Fault reset ....................35 5.2.3 Motor parameter autotuning..............35 5.2.4 Password setting..................36 5.3 Running State .....................36 5.3.1 Power-on initialization ................36 5.3.2 Stand-by ....................36 5.3.3 Motor parameter autotuning..............36 5.3.4 Operation ....................36 5.3.5 Fault .......................

  • Page 5: List Of Figures

    LIST OF FIGURES Figure 1.1 Nameplate of inverter..................2 Figure 1.2 Parts of inverters (15kw and below)..............4 Figure 1.3 Parts of inverters (18.5kw and above)............. 5 Figure 1.4 Dimension (0.4~0.75kW 1AC 220V)..............5 Figure1.5 Dimension (0.75~15kW)................... 6 Figure 1.6 Dimension (18.5~110kW).
  • Page 6 Figure 4.17 Wiring of size A (0.4~0.75kW 1AC)............. 28 Figure 5.1 Keypad schematic diagram................32 Figure 5.2 Flow chart of parameter setting..............35 Figure 5.3 Quick testing diagram..................38 Figure 6.1 Acceleration and deceleration time..............42 Figure 6.2 Effect of carrier frequency................43 Figure 6.3 Starting diagram.....................

  • Page 8: Introduction

    Introduction 1. INTRODUCTION 1.1 Technology Features ● Input & Output ◆Input Voltage Range: 380/220V ±15% ◆Input Frequency Range: 47~63Hz ◆Output Voltage Range: 0~rated input voltage ◆Output Frequency Range: 0~400Hz ● I/O features ◆Programmable Digital Input: Provide 4 terminals which can accept ON-OFF inputs ◆Programmable Analog Input: AI1 can accept input of 0 ~10V;...

  • Page 9: Description Of Name Plate

    1.3 Selection Guide Rated Rated Rated Motor Output Input Output Model No. Size Power Power current current (KW) (kW) 1AC 220V ±15% CHE100-0R4G-S2 CHE100-0R7G-S2 0.75 0.75 CHE100-1R5G-S2 14.2 CHE100-2R2G-S2 23.0 3AC 220V ±15% CHE100-0R7G-2 0.75 0.75 CHE100-1R5G-2 CHE100-2R2G-2 11.0 CHE100-004G-2 17.0 CHE100-5R5G-2 21.0...
  • Page 10 Introduction 3AC 380V ±15% 0.75 0.75 CHE100-0R7G-4 CHE100-1R5G-4 CHE100-2R2G-4 4.0/5.5 10/15 9/13 4.0/5.5 CHE100-004G/5R5P-4 CHE100-5R5G/7R5P-4 5.5/7.5 15/20 13/17 5.5/7.5 CHE100-7R5G/011P-4 7.5/11 20/26 17/25 7.5/11 11/15 26/35 25/32 11/15 CHE100-011G/015P-4 CHE100-015G/018P-4 15/ 18.5 35/38 32/37 15/ 18.5 CHE100-018G/022P-4 18.5/ 22 38/46 37/45 18.5/ 22 22/30...

  • Page 11: Parts Description

    Introduction 1.4 Parts Description Figure 1.2 Parts of inverters (15kw and below).

  • Page 12: External Dimension

    Introduction Figure 1.3 Parts of inverters (18.5kw and above). 1.5 External Dimension Figure 1.4 Dimension (0.4~0.75kW 1AC 220V).

  • Page 13: Figure1.5 Dimension (0.75~15Kw)

    Introduction Figure1.5 Dimension (0.75~15kW). Figure 1.6 Dimension (18.5~110kW). Figure 1.7 Dimension (132~315kW).

  • Page 14: Figure 1.8 Dimension (350~630Kw)

    Introduction Figure 1.8 Dimension (350~630kW). Installation (mm) (mm) (mm) (mm) (mm) Power Size Hole (kW) Installation (mm) External Dimension Dimension 0.4~0.75 76.8 131.6 (1AC 220V) 0.75~2.2 110.4 170.2 4~5.5 147.5 237.5 7.5~15 305.5 18.5~30 454.5 37~55 564.5 75~110 738.5 H(without 1233 1275 13.0...

  • Page 15: Inspection

    Inspection 2. INSPECTION CAUTION ● Don’t install or use any inverter that is damaged or have fault part, otherwise may cause injury. Check the following items when unpacking the inverter, 1. Inspect the entire exterior of the Inverter to ensure there are no scratches or other damage caused by the transportation.

  • Page 16: Installation

    Installation 3. INSTALLATION WARNING WARNING ● The person without passing the training manipulate the device or any rule in the “Warning” being violated, will cause severe injury or property loss. Only the person, who has passed the training on the design, installation, commissioning and operation of the device and gotten the certification, is permitted to operate this equipment.

  • Page 17: Environmental Requirement

    Installation 3.1 Environmental Requirement 3.1.1 Temperature Environment temperature range: -10°C ~ +40°C. Inverter will be derated if ambient temperature exceeds 40°C. 3.1.2 Humidity Less than 95% RH, without dewfall. 3.1.3 Altitude Inverter can output the rated power when installed with altitude of lower than 1000m.

  • Page 18: Installation Space

    Installation 3.2 Installation Space Figure 3.2 Safe space. Figure 3.3 Installation of multiple inverters. Notice: Add the air deflector when apply the up-down installation.

  • Page 19: Dimension Of External Keypad

    Installation 3.3 Dimension of External Keypad Figure 3.4 Dimension of small keypad. Figure 3.5 Dimension of big keypad. 3.4 Disassembly Figure 3.6 Disassembly of plastic cover.

  • Page 20: Figure 3.7 Disassembly Of Metal Plate Cover

    Installation Figure 3.7 Disassembly of metal plate cover. Figure 3.8 Open inverter cabinet.

  • Page 21: Wiring

    Wiring 4. WIRING WARNING ● Wiring must be performed by the person certified in electrical work. ● Forbid testing the insulation of cable that connects the inverter with high-voltage insulation testing devices. ● Cannot install the inverter until discharged completely after the power supply is switched off for 5 minutes.

  • Page 22: Connection Of Peripheral Devices

    Wiring 4.1 Connection of Peripheral Devices Figure 4.1 Connection of peripheral devices.

  • Page 23: Terminal Configuration

    Wiring 4.2 Terminal Configuration 4.2.1 Main Circuit Terminals (380VAC) Figure 4.2 Main circuit terminals (0.4~0.75kW 1AC 220V). POWER MOTOR Figure 4.3 Main circuit terminals (1.5~2.2kW). POWER MOTOR Figure 4.4 Main circuit terminals (4.0~5.5kW) . POWER MOTOR Figure 4.5 Main circuit terminals (7.5~15kW). POWER MOTOR Figure 4.6 Main circuit terminals (18.5~110kW).

  • Page 24: Control Circuit Terminals

    Wiring Main circuit terminal functions are summarized according to the terminal symbols in the following table. Wire the terminal correctly for the desired purposes. Terminal Symbol Function Description R、S、T Terminals of 3 phase AC input (+)、(-) Spare terminals of external braking unit (+)、PB Spare terminals of external braking resistor P1、(+)

  • Page 25: Typical Wiring Diagram

    Wiring 4.3 Typical Wiring Diagram Figure4. 12 Wiring diagram. Notice 1. Inverters between 18.5KW and 90KW have built-in DC reactor which is used to improve power factor. For inverters above 110KW, it is recommended to install DC reactor between P1 and (+). 2.

  • Page 26: Specifications Of Breaker, Cable, Contactor And Reactor

    Wiring .4.4 Specifications of Breaker, Cable, Contactor and Reactor 4.4.1 Specifications of breaker, cable and contactor Circuit Breaker Input/Output AC Contactor Model No. Cable (mm 1AC 220V ±15% CHE100-0R4G-S2 CHE100-0R7G-S2 CHE100-1R5G-S2 CHE100-2R2G-S2 ± ± CHE100-0R4G-2 CHE100-0R7G-2 CHE100-1R5G-2 CHE100-2R2G-2 CHE100-004G-2 CHE100-5R5G-2...
  • Page 27 Wiring 3AC 380V ±15% CHE100-0R7G-4 CHE100-1R5G-4 CHE100-2R2G-4 CHE100-004G/5R5P-4 CHE100-5R5G/7R5P-4 CHE100-7R5G/011P-4 CHE100-011G/015P-4 CHE100-015G/018P-4 CHE100-018G/022P-4 CHE100-022G/030P-4 CHE100-030G/037P-4 CHE100-037G/045P-4 CHE100-045G/055P-4 CHE100-055G/075P-4 CHE100-075G/090P-4 CHE100-090G/110P-4 CHE100-110G/132P-4 CHE100-132G/160P-4 CHE100-160G/185P-4 CHE100-185G/200P-4 CHE100-220G/250P-4 150x2 CHE100-250G/280P-4 150x2 CHE100-280G/315P-4 1000 185x2 CHE100-315G/350P-4 1200 240x2...

  • Page 28: Specifications Of Ac Input Reactor, Ac Output Reactor And Dc Reactor

    Wiring 4.4.2 Specifications of AC input reactor, AC output reactor and DC reactor AC Input reactor AC Output reactor DC reactor Model No. Current Inductance Current Inductance Current Inductance （A） （mH） （A） （mH） （A） （mH） 3AC 380V ±15% CHE100-0R7G-4 － －...

  • Page 29: Specification Of Braking Resistor

    Wiring 4.4.3 Specification of braking unit and braking resistor Braking resistor Braking unit Model No. (100% braking torque) Order No. Quantity Specification Quantity 3AC 220V ±15% 275Ω/75W CHE100-0R4G-2 275Ω/75W CHE100-0R7G-2 138Ω/150W CHE100-1R5G-2 Built-in 91Ω/220W CHE100-2R2G-2 52Ω/400W CHE100-004G-2 37.5Ω/550W CHE100-5R5G-2 27.5Ω/750W CHE100-7R5G-2 19Ω/1100W CHE100-011G-2...

  • Page 30: Wiring Main Circuits

    Wiring 16Ω/4500W CHE100-045G/055P-4 13Ω/5500W CHE100-055G/075P-4 19Ω/3700W CHE100-075G/090P-4 DBU-055-4 16Ω/4500W CHE100-090G/110P-4 13Ω/5500W CHE100-110G/132P-4 CHE100-132G/160P-4 5Ω/15000W DBU-160-4 CHE100-160G/185P-4 3.5Ω/20000W CHE100-185G/200P-4 3.5Ω/20000W DBU-220-4 CHE100-200G/220P-4 3Ω/25000W CHE100-220G/250P-4 3Ω/25000W CHE100-250G/280P-4 2.5Ω/30000W DBU-315-4 CHE100-280G/315P-4 2.5Ω/30000W CHE100-315G/350P-4 2Ω/35000W Notice: 1. Above selection is based on following condition: 700V DC braking voltage threshold, 100% braking torque and 10% usage rate.

  • Page 31: Wiring At Inverter Side Of Main Circuit

    Wiring power supply. 4.5.1.3 AC reactor In order to prevent the rectifier damage resulted from the large current, AC reactor should be installed at the input side. It can also prevent rectifier from sudden variation of power voltage or harmonic generated by phase-control load. 4.5.1.4 Input EMC filter The surrounding device may be disturbed by the cables when the inverter is working.

  • Page 32: Wiring At Motor Side Of Main Circuit

    Wiring Notice: Be sure that the electric polarity of (+) (-) terminals is right; it is not allowed to connect (+) with (-) terminals directly, otherwise damage or fire could occur. 4.5.3 Wiring at motor side of main circuit 4.5.3.1 Output Reactor When the distance between inverter and motor is more than 50m, inverter may be tripped by over-current protection frequently because of the large leakage current resulted from the parasitic capacitance with ground.

  • Page 33: Wiring Of Common Dc Bus

    Wiring 4.5.5 Wiring of Common DC bus Common DC bus method is widely used in the paper industry and chemical fiber industry which need multi-motor to coordinate. In these applications, some motors are in driving status while some others are in regenerative braking (generating electricity) status. The regenerated energy is automatically balanced through the common DC bus, which means it can supply to motors in driving status.

  • Page 34: Control Circuit Terminals

    Wiring The cable connected to the control terminal should leave away from the main circuit and heavy current circuits (including power supply cable, motor cable, relay and contactor connecting cable) at least 20cm and parallel wiring should be avoided. It is suggested to apply perpendicular wiring to prevent inverter malfunction caused by external interference.

  • Page 35: Wiring Description Of Size A (1Ac 0.4~0.75Kw)

    Wiring Switch between (0~10V) voltage input and (0~20mA) current input. V connect to GND means voltage input; I connect to GND means current input. Switch between (0~10V) voltage output and (0~20mA) current output. V connect to OUT means voltage output; I connect to OUT means current output.

  • Page 36: Emc Features Of Inverter

    Wiring categories: conducted interference and radiated interference. Conducted interference is the interference transmitted by conductor. Therefore, any conductors (such as wire, transmission line, inductor, capacitor and so on) are the transmission channels of the interference. Radiated interference is the interference transmitted in electromagnetic wave, and the energy is inverse proportional to the square of distance.
  • Page 37 Wiring based on EMC features of inverter, introduces EMC installation process in several aspects of application (noise control, site wiring, grounding, leakage current and power supply filter). The good effective of EMC will depend on the good effective of all of these five aspects.
  • Page 38 Wiring together, especially when installed the EMC filter. Otherwise the distributed capacitances of its input and output power cable can be coupling each other to make the EMC filter out of function. 4.7.3.3 Ground Inverter must be ground safely when in operation. Grounding enjoys priority in all EMC methods because it does not only ensure the safety of equipment and persons, but also is the simplest, most effective and lowest cost solution for EMC problems.

  • Page 39: Operation

    Wiring power filter. 5. OPERATION 5.1 Keypad Description 5.1.1 Keypad schematic diagram Figure 5.1 Keypad schematic diagram. 5.1.2 Key function description Button Name Function Description Symbol Programming Entry or escape of first-level menu. Enter Key Progressively enter menu and confirm parameters.

  • Page 40: Indicator Light Description

    Operation UP Increment Progressively increase data or function codes. DOWN Progressive decrease data or function codes. Decrement Key Cyclically displays parameters by left shift, In the stop or running status. Note that when operation, Combination ＋ should firstly press and hold the DATA/ENT key and then press the QUICK/JOG key.

  • Page 41: Operation Process

    Operation Light on: reverse operation. Extinguished: keypad control LOCAL/REMOT Flickering: terminal control Light on: communication control Extinguished: normal operation status TRIP Flickering: overload pre-warning status 5.1.3.2 Unit Indicator Light Description Symbol Description Frequency unit Current unit Voltage unit Rotation speed unit Percentage 5.1.3.3 Digital Display...

  • Page 42: Fault Reset

    Operation Figure 5.2 Flow chart of parameter setting. Under the third-class menu, if the parameter has no flickering bit, it means the function code cannot be modified. The possible reasons could be: This function code is not modifiable parameter, such as actual detected parameter, operation records and so on;...

  • Page 43: Password Setting

    Operation P2.05: motor stator resistance; P2.06: motor rotor resistance; P2.07: motor stator and rotor inductance; P2.08: motor stator and rotor mutual inductance; P2.09: motor current without load; then motor autotuning is finished. 5.2.4 Password setting CHE series inverter offers user’s password protection function. When P7.00 is set to be nonzero, it will be the user’s password, and After exiting function code edit mode, it will become effective after 1 minute.

  • Page 44: Fault

    Operation bit option of Function Code P7.06 (converted into binary system). Press the 》/SHIFT to scroll through the parameters in right order . Press DATA/ENT + QUICK/JOG to scroll through the parameters in left order. 5.3.5 Fault CHE series inverter offers a variety of fault information. For details, see inverter faults and their troubleshooting.

  • Page 45: Detailed Function Description

    Operation Figure 5.3 Quick testing.diagram 6. DETAILED FUNCTION DESCRIPTION 6.1 P0 Group--Basic Function Function Setting Factory Name Description Code Range Setting Control 0:Sensorless vector control P0.00 mode 1:V/F control selection 2:Torque control 0: Sensorless vector control: It is widely used for the application which requires high torque at low speed, higher speed accuracy, and quicker dynamic response, such as machine tool, injection molding machine, centrifugal machine and wire-drawing machine, etc.
  • Page 46 Detailed Function Description reset and so on. 0: Keypad (LED extinguished); Both RUN and STOP/RST key are used for running command control. If Multifunction key QUICK/JOG is set as FWD/REV switching function (P7.03 is set to be 1), it will be used to change the rotating orientation.
  • Page 47 Detailed Function Description 0: Keypad 1: AI1 Frequency A 2. AI2 P0.03 command 3: AI1+AI2 source 4. Multi-Step speed 5: PID 6: Communication 0: Keypad: Please refer to description of P3.00 1: AI1 2: AI2 3:AI1+AI2 The reference frequency is set by analog input. CHE series inverter provides 2 analog input terminals.
  • Page 48 Detailed Function Description Actual acceleration time and deceleration time are determined by maximum frequency. Please refer to description of P0.08 and P0.09. Function Factory Name Description Setting Range Code Setting Upper frequency P0.05 P0.06~ P0.04 P0.06~P0.04 50.00Hz limit Notice: Upper frequency limit should not be greater than the maximum frequency (P0.04).

  • Page 49: Figure 6.1 Acceleration And Deceleration Time

    Detailed Function Description Figure 6.1 Acceleration and deceleration time. When the reference frequency is equal to the maximum frequency, the actual acceleration and deceleration time will be equal to the P0.08 and P0.09 respectively. When the reference frequency is less than the maximum frequency, the actual acceleration and deceleration time will be less than the P0.08 and P0.09 respectively.

  • Page 50: Figure 6.2 Effect Of Carrier Frequency

    Detailed Function Description Figure 6.2 Effect of carrier frequency. The following table is the relationship between power rating and carrier frequency. Carrier f Highest Carrier f Lowest Carrier f Factory setting Model ( kHz ) ( kHz ) ( kHz ) G Model: 0.4kW~11kW P Model: 0.75kW~15kW G Model: 15kW~55kW...
  • Page 51 Detailed Function Description Input the nameplate parameters of motor (P2.01~P2.05) correctly before performing autotuning. Otherwise the parameters detected by autotuning will be incorrect; it may influence the performance of inverter. Set the proper acceleration and deceleration time (P0.08 and P0.09) according to the motor inertia before performing autotuning.

  • Page 52: P1 Group--Start And Stop Control

    Detailed Function Description 2: Disabled during deceleration AVR ( Auto Voltage Regulation) function ensure the output voltage of inverter stable no matter how the DC bus voltage changes. During deceleration, if AVR function is disabled, the deceleration time will be short but the current will be big. If AVR function is enabled all the time, the deceleration time will be long but the current will be small.
  • Page 53 Detailed Function Description DC Braking time P1.04 0.0~50.0s 0.0~50.0 0.0s before start When inverter starts, it performs DC braking according to P1.03 firstly, then start to accelerate after P1.04. Notice: DC braking will take effect only when P1.00 is set to be 1. DC braking is invalid when P1.04 is set to be 0.

  • Page 54: P2 Group--Motor Parameters

    Detailed Function Description Figure 6.4 DC braking diagram. Function Factory Name Description Setting Range Code Setting Dead time of P1.10 0.0~3600.0s 0.0~3600.0 0.0s FWD/REV Set the hold time at zero frequency in the transition between forward and reverse running. It is shown as following figure: Figure 6.5 FWD/REV dead time diagram.
  • Page 55 Detailed Function Description 0: G model P2.00 G/P option 1: P model 0: Applicable to constant torque load 1: Applicable to variable torque load (i.e. fans, pumps) CHE series inverters provide the G/P integration function. The adaptive motor power used for constant torque load (G model) should be one grade less than that used for variable torque load (P model).

  • Page 56: P3 Group-Vector Control

    Detailed Function Description Notice: Do not change these parameters, otherwise it may deteriorate the control performance of inverter. 6.4 P3 Group—Vector Control Function Factory Name Description Setting Range Code Setting ASR proportional P3.00 0~100 0~100 gain K ASR integral time P3.01 0.01~10.00s 0.01~10.00...

  • Page 57: P4 Group-- V/F Control

    Detailed Function Description Figure 6.7 PI parameter diagram. The system's dynamic response can be faster if the proportion gain K is increased; However, if K is too large, the system tends to oscillate. The system dynamic response can be faster if the integral time K is decreased;...

  • Page 58: Figure6.8 V/F Curve Diagram

    Detailed Function Description Figure6.8 V/F curve diagram. Function Setting Factory Name Description Code Range Setting 0.0%: (auto) P4.01 Torque boost 0.0~10.0 0.0％ 0.1％~10.0％ Torque boost 0.0%~50.0% (motor P4.02 0.0~50.0 20.0% cut-off rated frequency) Torque boost will take effect when output frequency is less than cut-off frequency of torque boost (P4.02).

  • Page 59: P5 Group--Input Terminals

    Detailed Function Description Code Range Setting Auto energy 0: Disabled P4.04 saving selection 1: Enabled When P4.04 is set to be 1, while there is a light load, it will reduce the inverter output voltage and saves energy. 6.6 P5 Group--Input Terminals Function Setting Factory...
  • Page 60 Detailed Function Description DOWN command Clear UP/DOWN Use this terminal to clear UP/DOWN setting. Please refer to description of P0.02. Multi-step speed 8 steps speed control can be realized by the combination of reference1 these four terminals. For details, please refer to: Multi-step Multi-step speed reference terminal status and according step value speed reference...
  • Page 61 Detailed Function Description Disable torque Torque control is disabled. Inverter will work in speed control control mode. UP/DOWN UP/DOWN setting is invalid and will not be cleared. When invalid this terminal is disabled, UP/DOWN setting before will be temporarily valid again. 22~25 Reserved Reserved...

  • Page 62: Figure 6.10 2-Wire Control Mode1

    Detailed Function Description Stop Stop Figure 6.10 2-wire control mode1. 1: 2-wire control mode 2: START/STOP command is determined by FWD terminal. Run direction is determined by REV terminal. Run command Stop Stop Figure 6.11 2-wire control mode 2. 2: 3-wire control mode 1: SB1: Start button SB2: Stop button (NC) K: Run direction button...

  • Page 63: Figure 6.13 3-Wire Control Mode2

    Detailed Function Description Figure 6.13 3-wire control mode2. Notice: When 2-wire control mode is active, the inverter will not run in following situation even if FWD/REV terminal is enabled: Coast to stop (press RUN and STOP/RST at the same time). Stop command from serial communication.

  • Page 64: P6 Group--Output Terminals

    Detailed Function Description Figure 6.14 Relationship between AI and corresponding setting. AI1 filter time constant is effective when there are sudden changes or noise in the analog input signal. Responsiveness decreases as the setting increases. Function Factory Name Description Setting Range Code Setting P5.12...
  • Page 65 Detailed Function Description Fault output ON: Inverter is in fault status. FDT reached Please refer to description of P8.13 and P8.14. Frequency Please refer to description of P8.15. reached Zero speed ON: The running frequency of inverter is zero. running Upper frequency ON: Running frequency reaches the value of P0.05.

  • Page 66: P7 Group--Display Interface

    Detailed Function Description P6.05 AO upper limit 0.0%~100.0% 0.0~100.0 100.0% AO upper limit P6.06 0.00V ~10.00V 0.00~10.00 10.00V corresponding output These parameters determine the relationship between analog output voltage/current and the corresponding output value. When the analog output value exceeds the range between lower limit and upper limit, it will output the upper limit or lower limit.
  • Page 67 Detailed Function Description P7.02 will take effect when LCD keypad is used. 1: All value of parameters will be uploaded from inverter to LCD. 2: All value of parameters will be downloaded from LCD to inverter. Notice: When upload or download operation completes, P7.02 will be set to 0 automatically.
  • Page 68 Detailed Function Description 1: Local and external keypad display simultaneously, only the key of external keypad is valid. 2: Local and external keypad display simultaneously, only the key of local keypad is valid. 3: Local and external keypad display simultaneously, both keys of local and external keypad are valid.
  • Page 69 Detailed Function Description The value of P7.06 is 100Fh. Notice: I/O terminal status is displayed in decimal. For details, please refer to description of P7.18 and P7.19. Function Setting Factory Name Description Code Range Setting Stop status display 0~0x1FF 0~0x1FF 0xFF P7.07 selection...
  • Page 70 Detailed Function Description Accumulated running time: Displays accumulated running time of inverter. Notice: Above parameters are read only. Function Setting Name Description Factory Setting Code Range P7.12 Third latest fault type 0~24 P7.13 Second latest fault type 0~24 P7.14 Latest fault type 0~24 These parameters record three recent fault types.

  • Page 71: P8 Group--Enhanced Function

    Detailed Function Description This value records output terminal status at current fault. The meaning of each bit is as below: Output BIT3 BIT2 BIT1 BIT0 P7.19 terminal status at current fault 1 indicates corresponding output terminal is ON, while 0 indicates OFF.

  • Page 72: Figure 6.16 Skip Frequency Diagram

    Detailed Function Description during acceleration and deceleration are smooth without skip. The relation between output frequency and reference frequency is shown in following figure. Figure 6.16 Skip frequency diagram. Function Setting Factory Name Description Code Range Setting Traverse P8.07 0.0~100.0% 0.0~100.0 0.0% amplitude...
  • Page 73 Detailed Function Description highest traverse frequency. Fall time of traverse: Indicates the time falling from the highest traverse frequency to the lowest traverse frequency. Notice: P8.07 determines the output frequency range which is as below: (1-P8.07%) * reference frequency ≤ output frequency ≤ (1+P8.07%) * reference frequency The output frequency of traverse is limited by upper frequency limit (P0.05) and lower frequency limit (P0.06).

  • Page 74: Figure 6.18 Fdt Level And Lag Diagram

    Detailed Function Description Figure 6.18 FDT level and lag diagram. Function Setting Factory Name Description Code Range Setting 0.0~100.0% Frequency arrive P8.15 （maximum 0.0~100.0 0.0% detecting range frequency） When output frequency is within the detecting range of reference frequency, an ON-OFF signal will be output.

  • Page 75: P9 Group--Pid Control

    Detailed Function Description This parameter is used to calibrate the bias between actual mechanical speed and rotation speed. The formula is as below: Actual mechanical speed = 120 * output frequency *P8.17 / Number of poles of motor 6.10 P9 Group--PID Control PID control is a common used method in process control, such as flow, pressure and temperature control.

  • Page 76: Figure 6.21 Reducing Overshooting Diagram

    Detailed Function Description Function Setting Factory Name Description Code Range Setting PID output 0: Positive P9.03 characteristics 1: Negative 0：Positive. When the feedback value is greater than the preset value, output frequency will be decreased, such as tension control in winding application. 1: Negative.

  • Page 77: Figure 6.22 Rapidly Stabilizing Diagram

    Detailed Function Description Figure 6.22 Rapidly stabilizing diagram. Reducing long-cycle oscillation If oscillation occurs with a longer cycle than the integral time setting, it means that integral operation is strong. The oscillation will be reduced as the integral time is lengthened. Figure 6.23 Reducing long-cycle oscillation diagram.

  • Page 78: Pa Group-- Multi-Step Speed Control

    Detailed Function Description P9.08 Bias limit 0.0~100.0% 0.0~100.0 0.0% Sampling cycle T refers to the sampling cycle of feedback value. The PI regulator calculates once in each sampling cycle. The bigger the sampling cycle, the slower the response is. Bias limit defines the maximum bias between the feedback and the preset. PID stops operation when the bias is within this range.

  • Page 79: Figure 6.26 Multi-Steps Speed Operating Diagram

    Detailed Function Description PA.02 Multi-step speed 2 -100.0~100.0% -100.0~100.0 0.0% PA.03 Multi-step speed 3 -100.0~100.0% -100.0~100.0 0.0% PA.04 Multi-step speed 4 -100.0~100.0% -100.0~100.0 0.0% PA.05 Multi-step speed 5 -100.0~100.0% -100.0~100.0 0.0% PA.06 Multi-step speed 6 -100.0~100.0% -100.0~100.0 0.0% PA.07 Multi-step speed 7 -100.0~100.0% -100.0~100.0 0.0%...

  • Page 80: Pb Group-- Protection Function

    Detailed Function Description Terminal Multi-step speed Multi-step speed Multi-step speed Step reference1 reference2 reference3 6.12 PB Group-- Protection Function Function Setting Factory Name Description Code Range Setting Motor 0: Disabled PB.00 overload 1: Normal motor protection 2: Variable frequency motor 1: For normal motor, the lower the speed, the poorer the cooling effect.
  • Page 81 Detailed Function Description This parameter is normally used when rated power of inverter is greater than rated power of motor. Motor overload protection time: 60s with 200% of rated current. For details, please refer to above figure. Function Factory Name Description Setting Range Code...

  • Page 82: Figure 6.28 Over-Voltage Stall Function

    Detailed Function Description Figure 6.28 Over-voltage stall function. Function Name Description Setting Range Factory Setting Code Auto current G Model: 160% PB.06 50~200% 50~200 limiting threshold P Model: 120% Frequency decrease rate PB.07 0.00~100.00Hz/s 0.00~100.00 10.00Hz/s when current limiting Auto current limiting is used to limit the current of inverter smaller than the value determined by PB.06 in real time.

  • Page 83: Pc Group--Serial Communication

    Detailed Function Description Figure 6.29 Current limiting protection function. 6.13 PC Group--Serial Communication Function Setting Factory Name Description Code Range Setting PC.00 Local address 1~247 0~247 This parameter determines the slave address used for communication with master. The value “0” is the broadcast address. Function Setting Factory...
  • Page 84 Detailed Function Description 10: ASCII, 1 start bit, 7 data bits, even parity check, 2 stop bits. 11: ASCII, 1 start bit, 7 data bits, odd parity check, 2 stop bits. 12: ASCII, 1 start bit, 8 data bits, no parity check, 1 stop bit. 13: ASCII, 1 start bit, 8 data bits, even parity check, 1 stop bit.

  • Page 85: Pd Group-Supplementary Function

    Detailed Function Description mode determined by P1.05. Function Setting Factory Name Description Code Range Setting Unit’s place of LED 0: Response to writing 1: No response to writing Response PC.06 Ten’s place of LED action 0: Reference not saved when power 1: Reference saved when power off Figure 6.30 Meaning of PC.06.
  • Page 86 Detailed Function Description is too big, it may cause inverter over current. It should be set a little bit smaller for large power motor, vice versa. Function Factory Name Description Setting Range Code Setting Boundary of PD.03 restraining 0.0~P0.04 0.0HZ~P0.04 12.5HZ oscillation If output frequency is greater than PD.03, PD.00 takes effect, otherwise PD.01 takes...
  • Page 87 Detailed Function Description frequency limit. If T set < T load, output frequency will decrease continuously until it reaches lower frequency limit. Inverter can run at any frequency between upper and lower frequency limit only when T set = T load. Torque control can be switched to speed control, vice versa.

  • Page 88: Pe Group-Factory Setting

    Detailed Function Description load. This function is always enabled during acceleration or deceleration period. Notice: During auto current limiting process, the inverter’s output frequency may change; therefore, it is recommended not to enable the function when output frequency need to be stable. 6.15 PE Group—Factory Setting This group is the factory-set parameter group.
  • Page 89 Trouble Shooting Over-voltage when acceleration 1. Increase Dec time or 1. Dec time is too short and connect braking resistor Over-voltage when regenerative energy from the 2. Decrease input deceleration motor is too large. voltage within Over-voltage 2. Input voltage is too high. specification.

  • Page 90: Common Faults And Solutions

    Trouble Shooting 1.Ambient temperature is too 1. Install cooling unit. high. Rectify overheat 2. Near heat source. 2. Remove heat source. 3. Replace cooling fan 3. Cooling fans of inverter stop or damaged. 4. Clear the ventilation channel. 4. Obstruction of ventilation channel 5.

  • Page 91: Maintenance

    Trouble Shooting the buffer resistor. If the light is on, the fault may be lies in the switching power supply. Please ask for support. 7.2.2 Power supply air switch trips off when power on: Inspect whether the input power supply is grounded or short circuit. Please solve the problem.

  • Page 92: Daily Maintenance

    Maintenance 8.1 Daily Maintenance In order to prevent the fault of inverter to make it operate smoothly in high-performance for a long time, user must inspect the inverter periodically (within half year). The following table indicates the inspection content. Main inspections Criteria Items to be Inspection...

  • Page 93: Replacement Of Wearing Parts

    Maintenance environment 8.2.1 Check whether the screws of control terminals are loose. If so, tighten them with a screwdriver; 8.2.2 Check whether the main circuit terminals are properly connected; whether the mains cables are over heated; 8.2.3 Check whether the power cables and control cables are damaged, check especially for any wear on the cable tube;...

  • Page 94: List Of Function Parameters

    Maintenance 9. LIST OF FUNCTION PARAMETERS Notice: PE group is factory reserved, users are forbidden to access these parameters. The column “Modify” determines the parameter can be modified or not. ○ “ ” indicates that this parameter can be modified all the time. “◎”indicates that this parameter cannot be modified during the inverter is running.
  • Page 95 List of Function Parameters Serial Function Factory Name Description Modify Code Setting P0 Group: Basic Function 0:Sensorless vector control Control mode P0.00 1:V/F control selection 2:Torque control 0: Keypad (LED extinguishes) Run command P0.01 1: Terminal (LED flickers) source 2: Communication (LED lights up) 0: Valid, save UP/DOWN value when power 1: Valid, do not save UP/DOWN value when P0.02...
  • Page 96 List of Function Parameters Serial Function Factory Name Description Modify Code Setting 0: No action P0.13 Restore parameters 1: Restore factory setting 2: Clear fault records 0: Disabled P0.14 AVR function 1: Enabled all the time 2: Disabled during deceleration P1 Group: Start and Stop Control 0: Start directly P1.00...
  • Page 97 List of Function Parameters Serial Function Factory Name Description Modify Code Setting Motor rated P2.02 50.00Hz 0.01Hz~P0.04 frequency Depend P2.03 Motor rated speed 0~36000rpm on model Depend P2.04 Motor rated voltage 0~2000V on model Depend P2.05 Motor rated current 0.8~2000.0A on model Depend Motor stator...
  • Page 98 List of Function Parameters Serial Function Factory Name Description Modify Code Setting P4 Group: V/F Control 0:Linear curve P4.00 V/F curve selection 1: Torque_stepdown curve (2.0 order) 0.0%: (auto) P4.01 0.0% Torque boost 0.1％~10.0％ P4.02 20.0% Torque boost cut-off 0.0%~50.0% (motor rated frequency) V/F Slip P4.03 0.0%...
  • Page 99 List of Function Parameters Serial Function Factory Name Description Modify Code Setting 0: 2-wire control mode 1 FWD/REV control 1: 2-wire control mode 2 P5.05 mode 2: 3-wire control mode 1 3: 3-wire control mode 2 0.50 UP/DOWN setting P5.06 0.01~50.00Hz/s Hz/s change rate...
  • Page 100 List of Function Parameters Serial Function Factory Name Description Modify Code Setting 0: Running frequency 1: Reference frequency 2: Motor speed 3: Output current 4: Output voltage P6.02 AO selection 5: Output power 6: Output torque 7: AI1 voltage 8: AI2 voltage/current 9~10: reserved P6.03 0.0%...
  • Page 101 List of Function Parameters Serial Function Factory Name Description Modify Code Setting 0~0X7FFF BIT0: Output frequency BIT1: Reference frequency BIT2: DC bus voltage BIT3: Output voltage BIT4: Output current BIT5: Rotation speed BIT6: Output power Running status P7.06 BIT7: Output torque 0XFF display selection BIT8: PID preset...
  • Page 102 List of Function Parameters Serial Function Factory Name Description Modify Code Setting 0: Not fault 1: IGBT Ph-U fault(OUT1) 2: IGBT Ph-V fault(OUT2) 3: IGBT Ph-W fault(OUT3) P7.12 Third latest fault type ● 4: Over-current when acceleration(OC1) 5: Over-current when deceleration(OC2) 6: Over-current when constant speed running (OC3)
  • Page 103 List of Function Parameters Serial Function Factory Name Description Modify Code Setting Output terminal BIT3 BIT2 BIT1 BIT0 P7.19 ● status at current fault P8 Group: Enhanced Function Depend P8.00 Acceleration time 1 0.1~3600.0s on model Depend P8.01 Deceleration time 1 0.1~3600.0s on model P8.02...
  • Page 104 List of Function Parameters Serial Function Factory Name Description Modify Code Setting 0: Keypad 1: AI1 PID preset source P9.00 2: AI2 selection 3: Communication 4: Multi-step P9.01 0.0% Keypad PID preset 0.0%~100.0% 0: AI1 PID feedback source 1: AI2 P9.02 selection 2: AI1+AI2...
  • Page 105 List of Function Parameters Serial Function Factory Name Description Modify Code Setting 0: Disabled Motor overload PB.00 1: Normal motor protection 2: Variable frequency motor Motor overload PB.01 100.0% 20.0%~120.0% protection current PB.02 80.0% Threshold of trip-free 70.0~110.0% Decrease rate of PB.03 0.00Hz 0.00Hz~P0.04...
  • Page 106 List of Function Parameters Serial Function Factory Name Description Modify Code Setting 8: ASCII, 1 start bit, 7 data bits, odd parity check, 1 stop bit. 9: ASCII, 1 start bit, 7 data bits, no parity check, 2 stop bits. 10: ASCII, 1 start bit, 7 data bits, even parity check, 2 stop bits.

  • Page 107: Special Parameter For Che150 Series High Speed Inverter

    List of Function Parameters Serial Function Factory Name Description Modify Code Setting Amplitude of PD.02 5000 0~10000 restraining oscillation Boundary of PD.03 12.5Hz 0.0~P0.04 restraining oscillation 0: Enabled PD.04 Restrain oscillation 1: Disabled 0: PWM mode 1 PD.05 PWM mode 1: PWM mode 2 2: PWM mode 3 0: Keypad...

  • Page 108: Parameters Display On Lcd Keypad

    List of Function Parameters Function Factory Name Description Modify Code Setting 0:Linear curve 1: User-defined curve P4.00 V/F curve selection 2: Torque_stepdown curve (1.3 order) 3: Torque_stepdown curve (1.7 order) 4: Torque_stepdown curve (2.0 order) P4.03 V/F frequency 1 0.0Hz ~ P4.05 100.0Hz P4.04 V/F voltage 1...
  • Page 109 List of Function Parameters Function Code Name LCD Display P0.12 Motor parameters autotuning AUTOTUNING P0.13 Restore parameters RESTORE PARA P0.14 AVR function P1.00 Start Mode START MODE P1.01 Starting frequency START FREQ P1.02 Hold time of starting frequency HOLD TIME P1.03 DC Braking current before start START BRAK CURR...
  • Page 110 List of Function Parameters Function Code Name LCD Display P3.02 ASR switching point 1 ASR SWITCHPOINT1 P3.03 ASR proportional gain Kp2 ASR Kp2 P3.04 ASR integral time Ki2 ASR Ki2 P3.05 ASR switching point 2 ASR SWITCHPOINT2 P3.06 Slip compensation rate of VC VC SLIP COMP P3.07 Torque limit...
  • Page 111 List of Function Parameters Function Code Name LCD Display P6.00 Y output selection Y SELECTION P6.01 Relay output selection RO SELECTION P6.02 AO selection AO SELECTION P6.03 AO lower limit AO LOW LIMIT P6.04 AO lower limit corresponding output AO LOW OUTPUT P6.05 AO upper limit AO UP LIMIT...
  • Page 112 List of Function Parameters Function Code Name LCD Display P8.02 Jog reference JOG REF P8.03 Jog acceleration time JOG ACC TIME P8.04 Jog deceleration time JOG DEC TIME P8.05 Skip frequency SKIP FREQ P8.06 Skip frequency bandwidth SKIP FREQ RANGE P8.07 Traverse amplitude TRAV AMPLITUDE...
  • Page 113 List of Function Parameters Function Code Name LCD Display PA.01 Multi-step speed 1 MULTI-SPEED 1 PA.02 Multi-step speed 2 MULTI-SPEED 2 PA.03 Multi-step speed 3 MULTI-SPEED 3 PA.04 Multi-step speed 4 MULTI-SPEED 4 PA.05 Multi-step speed 5 MULTI-SPEED 5 PA.06 Multi-step speed 6 MULTI-SPEED 6 PA.07...
  • Page 114 List of Function Parameters Function Code Name LCD Display PD.04 Restrain oscillation RES OSC ENABLE PD.05 PWM mode PWM MODE PD.06 Torque setting source TORQ SOURCE PD.07 Keypad torque setting KEYPAD TORQ SET PD.08 Upper frequency limit selection UP FREQ SOURCE PD.09 Auto current limiting selection CURR LIMIT SEL...

  • Page 115: Communication Protocol

    Communication Protocol 10. COMMUNICATION PROTOCOL 10.1 Interfaces RS485: asynchronous, half-duplex. Default: 8-E-1, 19200bps. See Group PC parameter settings. 10.2 Communication Modes 10.2.1 The protocol is Modbus protocol. Besides the common register Read/Write operation, it is supplemented with commands of parameters management. 10.2.2 The drive is a slave in the network.
  • Page 116 Communication Protocol Node addr. Command Data addr. Read No. 0x01 0x03 0x00 0x02 0x00 0x01 0x25 0xCA The table below shows the reply frame from slave node address 1 Node addr. Command Bytes No. Data 0x01 0x03 0x02 0x00 0x00 0xB8 0x44 ASCII mode...
  • Page 117 Communication Protocol The data address of control and status parameters please refer to the following table. Parameter Address Meaning of value Description Feature 0001H: Forward 0002H: Reverse 0003H: JOG forward Control 0004H: JOG reverse 1000H command 0005H: Stop 0006H: Coast to stop 0007H: Reset fault 0008H: JOG stop 0001H: Forward running...
  • Page 118 Communication Protocol 3013H Length value 3014H External counter input 3015H Reserved 3016H Device code This address stores the fault type of Fault info 5000H inverter. The meaning of each value address is same as P7.15. 0000H: No fault 0001H: Wrong password 0002H: Command code error ModBus 0003H: CRC error...
  • Page 119 Communication Protocol For details, please refer to the following table: High byte Meaning Low byte Meaning Universal type For water supply Middle frequency 1500HZ Middle frequency 3000HZ Universal type Middle frequency 1500HZ Universal type If the operation fails, the inverter will reply a message formed by failure command and error code.
  • Page 120 Communication Protocol Request format: Protocol data unit Data length(bytes) Range Command 0x06 Data Address 0~0xFFFF Write Content 0~0xFFFF Reply format (success): Protocol data unit Data length(bytes) Range Command 0x06 Data Address 0~0xFFFF Write Content 0~0xFFFF If the operation fails, the inverter will reply a message formed by failure command and error code.
  • Page 121 Communication Protocol 10.7 Example 10.7.1 RTU mode, read 2 data from 0004H The request command is: START T1-T2-T3-T4 (transmission time of 3.5 bytes) Node address Command High byte of start address Low byte of start address High byte of data number Low byte of data number Low byte of CRC High byte of CRC...
  • Page 122 Communication Protocol 10.7.2 ASCII mode, read 2 data from 0004H: The request command is: START ‘:’ ‘0’ Node address ‘1’ ‘0’ Command ‘3’ ‘0’ High byte of start address ‘0’ ‘0’ Low byte of start address ‘4’ ‘0’ High byte of data number ‘0’...
  • Page 123 Communication Protocol 10.7.3 RTU mode, write 5000(1388H) into address 0008H, slave node address 02. The request command is: START T1-T2-T3-T4 (transmission time of 3.5 bytes) Node address Command High byte of data address Low byte of data address High byte of write content Low byte of write content Low byte of CRC High byte of CRC...
  • Page 124 Communication Protocol 10.7.4 ASCII mode, write 5000(1388H) into address 0008H, slave node address 02. The request command is: START ‘:’ ‘0’ Node address ‘2’ ‘0’ Command ‘6’ ‘0’ High byte of data address ‘0’ ‘0’ Low byte of data address ‘8’...

This manual is also suitable for:

Che100-1r5g-s2Che100-0r7g-s2Che100-2r2g-s2Che100-0r7g-2Che100-2r2g-2Che100-004g-2 ... Show all

Table of Contents

Save PDF
