GD310-UL series VFD
Model
GD310-350P-4-UL
GD310-400P-4-UL
GD310-500P-4-UL
GD310-018G-6-UL
GD310-022G-6-UL
GD310-030G-6-UL
GD310-037G-6-UL
GD310-045G-6-UL
GD310-055G-6-UL
GD310-075G-6-UL
GD310-090G-6-UL
GD310-110G-6-UL
Note:
1. The rated derate voltage of the input reactor is 2%± 15%.
2. The power factor of the input side is above 90% after installing DC reactor.
3. The rated derate voltage of the output reactor is 1%±15%.
4. Above options are external, the customer should noted when purchasing.
D.7 Filter

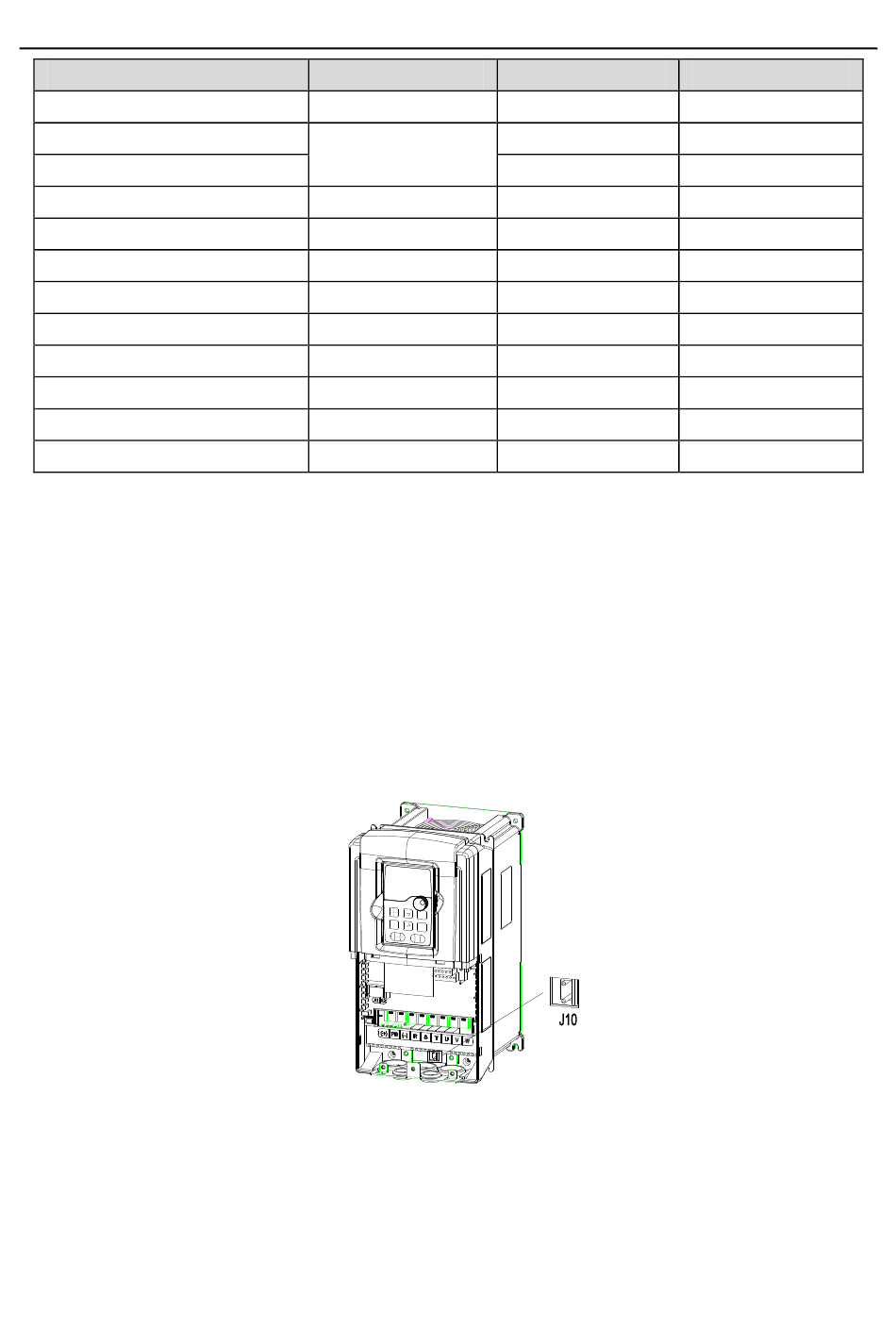

Goodrive310-UL series VFDs have embedded C3 filters which can be connected by J10.
Note: Do not connect C3 filters in IT power system.
The input interference filter can decrease the interference of the VFD to the surrounding equipment.
Output interference filter can decrease the radio noise cause by the cables between the VFD and the
motor and the leakage current of the conducting wires.
Input reactor
Standard
configuration
ACL2-030-6-UL
ACL2-030-6-UL
ACL2-055-6-UL
ACL2-055-6-UL
ACL2-055-6-UL
ACL2-011-6-UL
ACL2-110-6-UL
ACL2-110-6-UL
ACL2-185-6-UL
-251-
Peripheral options and parts
DC reactor
DCL2-315-4-UL
DCL2-400-4-UL
DCL2-400-4-UL
DCL2-030-6-UL
DCL2-030-6-UL
DCL2-055-6-UL
DCL2-055-6-UL
DCL2-055-6-UL
DCL2-011-6-UL
DCL2-110-6-UL
DCL2-110-6-UL
DCL2-185-6-UL
Output reactor
OCL2-315-4-UL
OCL2-350-4-UL
OCL2-400-4-UL
OCL2-030-6-UL
OCL 2-030-6-UL
OCL 2-055-6-UL
OCL2-055-6-UL
OCL2-055-6-UL
OCL2-011-6-UL
OCL2-110-6-UL
OCL2-110-6-UL
OCL2-185-6-UL
