GD310-UL series VFD

5.1 What this chapter contains

This chapter contains following operation:
Buttons, indicators and the screen as well as the methods to inspect, modify and set function codes
by keypad

5.2 Keypad

The keypad is used to control Goodrive310-UL series VFDs, read the state data and adjust
parameters.
Note:
1. The LED keypad is standard but the LCD keypad which can support various languages,
parameters copy and 10-line displaying is optional.
2. It is necessary to use M3 screw or installation bracket to fix the external keypad. The installation
bracket for VFDs of 220V 0.75–15kW and 460V G-type 1.5–30kW, P-type 5.5–37kW is optional but it
is standard for the VFDs of 460V G-type 37–500kW, P-type 45–500kW and 575V.
No. Name
1 State LED

5 Keypad operation procedure

RUN/TUNE FWD/REV
PRG
ESC
QUICK
JOG
RUN

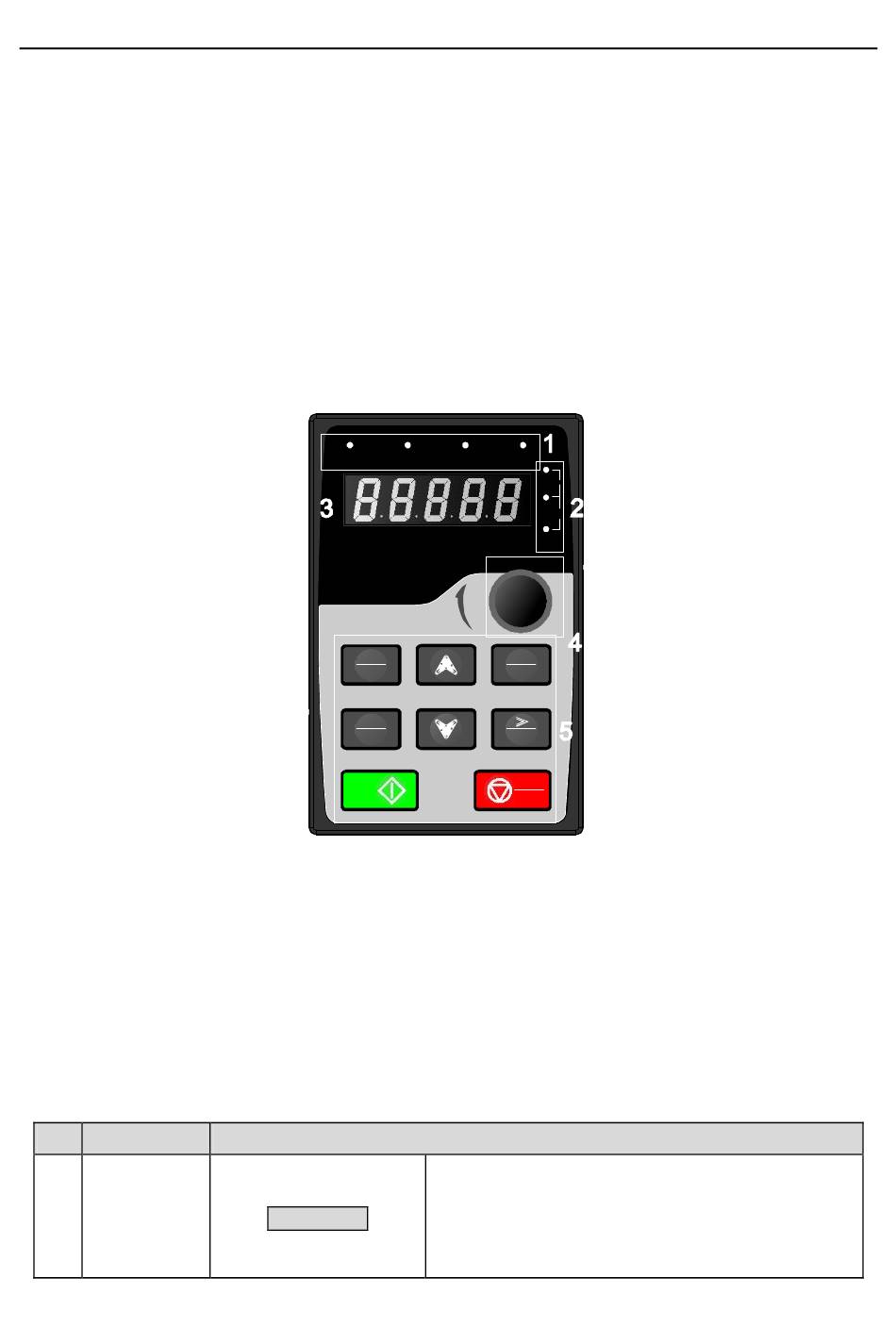

Figure 5-1 Keypad
RUN/TUNE
LOCAL/REMOT TRIP
Hz RPM
A
%
V
DATA
ENT
SHIFT
STOP
RST
Description
LED off means that the VFD is in the stopping
state; LED blinking means the VFD is in the
parameter autotune state; LED on means the VFD
is in the running state.
-32-
Keypad operation procedure
