GD310-UL series VFD Dimension drawings

Appendix C Dimension drawings

C.1 What this chapter contains
Dimension drawings of the Goodrive310-UL are shown below. The dimensions are given in
millimeters and inches.
C.2 Keypad structure

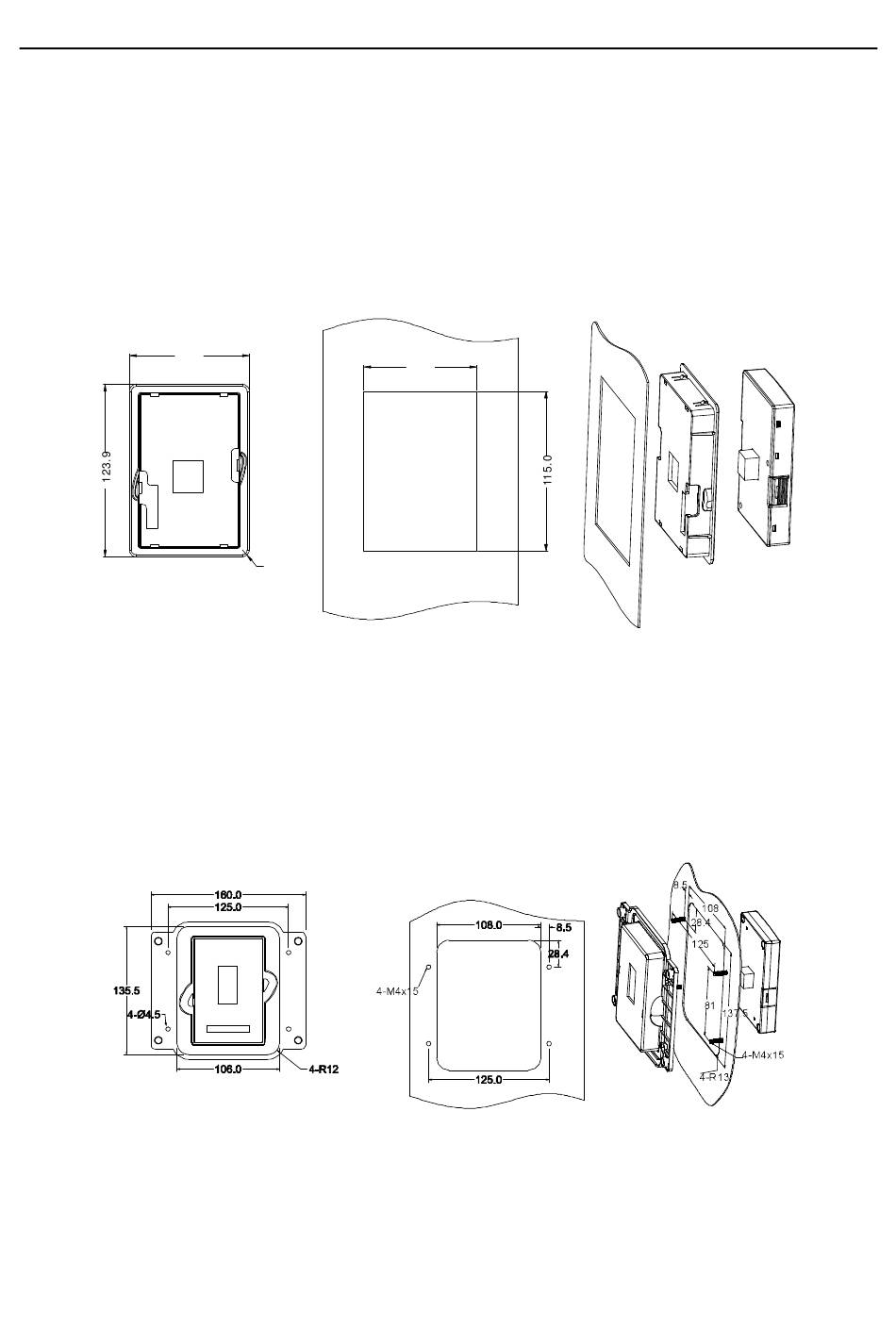

C.2.1 Structure chart
870 .
82.0
4-R5
C.2.2 Installation bracket (optional)
Note: It is necessary to use M3 screw or installation bracket to fix the external keypad. The
installation bracket for VFDs of 220V 0.75–15kW and 460V G-type 1.5–30kW, P-type 5.5–37kW is
optional but it is standard for the VFDs of 220V 18.5–55kW and 460V G-type 37–500kW, P-type
45–500kW and 575V.
Installation bracket
Installation dimension
