INVT Goodrive 310-UL Series Operation Manual page 156

GD310-UL series VFD
Set
Function
value
4 Forward jogging
5 Reverse jogging
6 Coast to stop
7 Fault reset
8 Operation pause
External fault input
9
10 Frequency setting up (UP) This parameter is used to modify the increasing and
Frequency setting down
12
(DOWN)
Frequency
12 increasing/decreasing
setting clear
Switch between A setting
13
and B setting
Switch between A setting
14
and combination setting
Switch between B setting
15
and combination setting
See P08.06, P08.07 and P08.08 for jogging frequency,
jogging ACC/DEC time.
The VFD closes off the output. The motor is not controlled by
the VFD during the stopping. This method is usually to be
used when the load inertia is big and it has no requirement to
the stopping time.
It has the same meaning with the "coast to stop" in P01.08
and usually used in remote control.
External fault reset. It has the same function with the reset
function of STOP/RST on the keypad. This function can
realize remote fault reset.
The VFD decelerates to stop. But all running parameters are
in the memory state. For example, PLC parameters, traverse
parameters and PID parameters. After the signal disappears,
the VFD will come back to the state before stopping.
When the external fault signal is sent to the VFD, the VFD will
report the fault and stop.
decreasing command during the external terminal given
frequency.

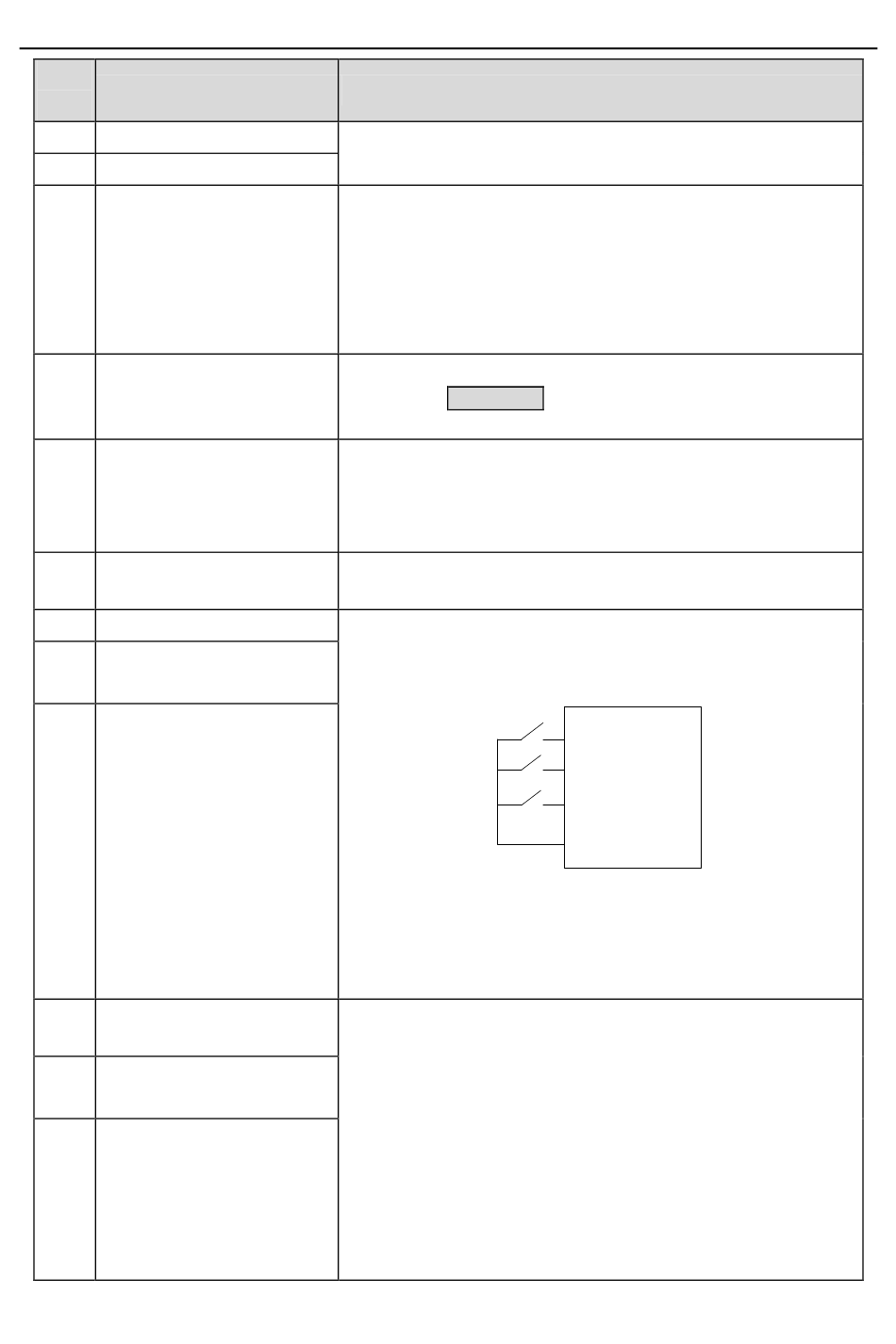

K1
K2
K3
Frequency increasing/decreasing setting clear terminal can
cancel the assistant channel frequency set by the internal
UP/DOWN of the VFD to make the given frequency restore to
the frequency given by the main given frequency channel.
This function can realize the shifting between the frequency
setting channels.
th
The 13 function can realize the shifting between A frequency
given channel and B frequency given channel.
th
The 14 function can realize the shifting between A frequency
given channel and the combination setting channel set by
P00.09
th
The 15 function can realize the shifting between B frequency
given channel and the combination setting channel set by
P00.09
-148-
Basic operation instruction
Instructions
UP terminal
DOWN terminal
UP/DOWN
clearing terminals
COM
