Goodrive350 series high-performance multifunction VFD
are needed in your purchase order.
Table D–10 Reactor model selection for AC 3PH 520V(-15%)–690V(+10%)
VFD model Input reactor model
350 kW ACL2-350G-6 (Standard)
400 kW ACL2-400G-6 (Standard)
500 kW ACL2-560G-6 (Standard)
630 kW ACL2-630G-6 (Standard)
Note:

The rated input voltage drop of input reactors is 2%.

The current adjustment coefficient on the input side of the VFD is higher than 90% after a DC
reactor is configured.

The rated output voltage drop of output reactors is 1%.

DC reactors are externally connected. You need to specify whether external or built-in reactors
are needed in your purchase order.
D.7 Filters

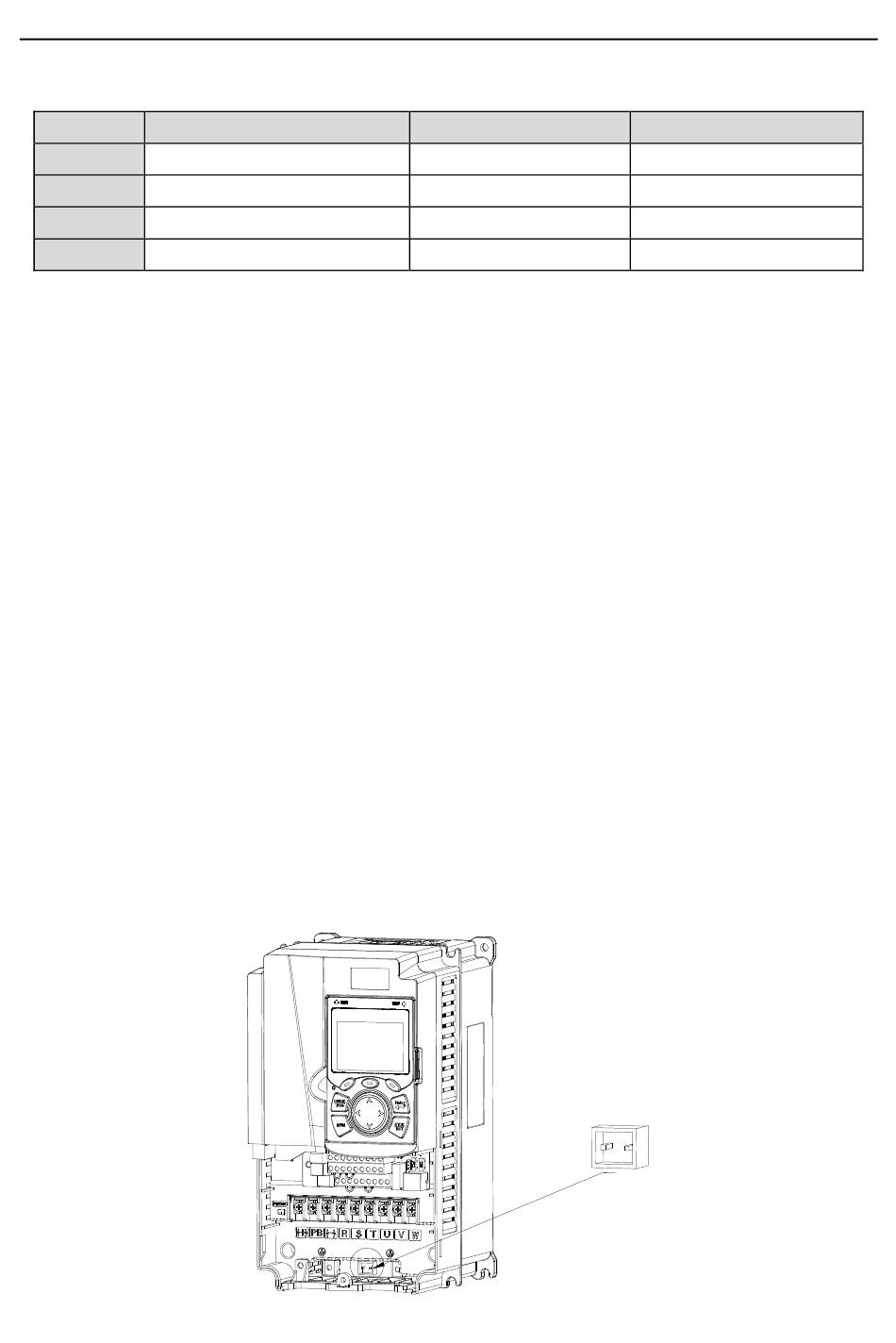

J10 is not connected in factory for the 380V 110kW and lower VFD models. Connect the J10
packaged with the manual if IEC/EN 61800-3 C3 requirements need to be met.
J10 is connected in factory for the 380V 132kW and higher VFD models, all of which meet IEC/EN
61800-3 C3 requirements.
Note:
Disconnect J10 in the following situations:

The EMC filter is applicable to the neutral-grounded grid system. If it is used for the IT grid
system (that is, non-neutral grounded grid system), disconnect J10.

If leakage protection occurs during configuration of a residual-current circuit breaker, disconnect
J10.
DC reactor model
DCL2-350G-6 (Optional) OCL2-350G-6 (Standard)
DCL2-400G-6 (Optional) OCL2-400G-6 (Standard)
DCL2-560G-6 (Optional) OCL2-560G-6 (Standard)
DCL2-630G-6 (Optional) OCL2-630G-6 (Standard)
-407-
Optional peripheral accessories
Output reactor model
J10
