GD200A series VFD
3. The rated derate voltage of the output reactor is 1%± 15%.
4. The preceding optional parts are externally connected. If the 220G/250P–315G/355P models use
the optional bases, two reactors can be configured for each VFD.
C.7 Filters

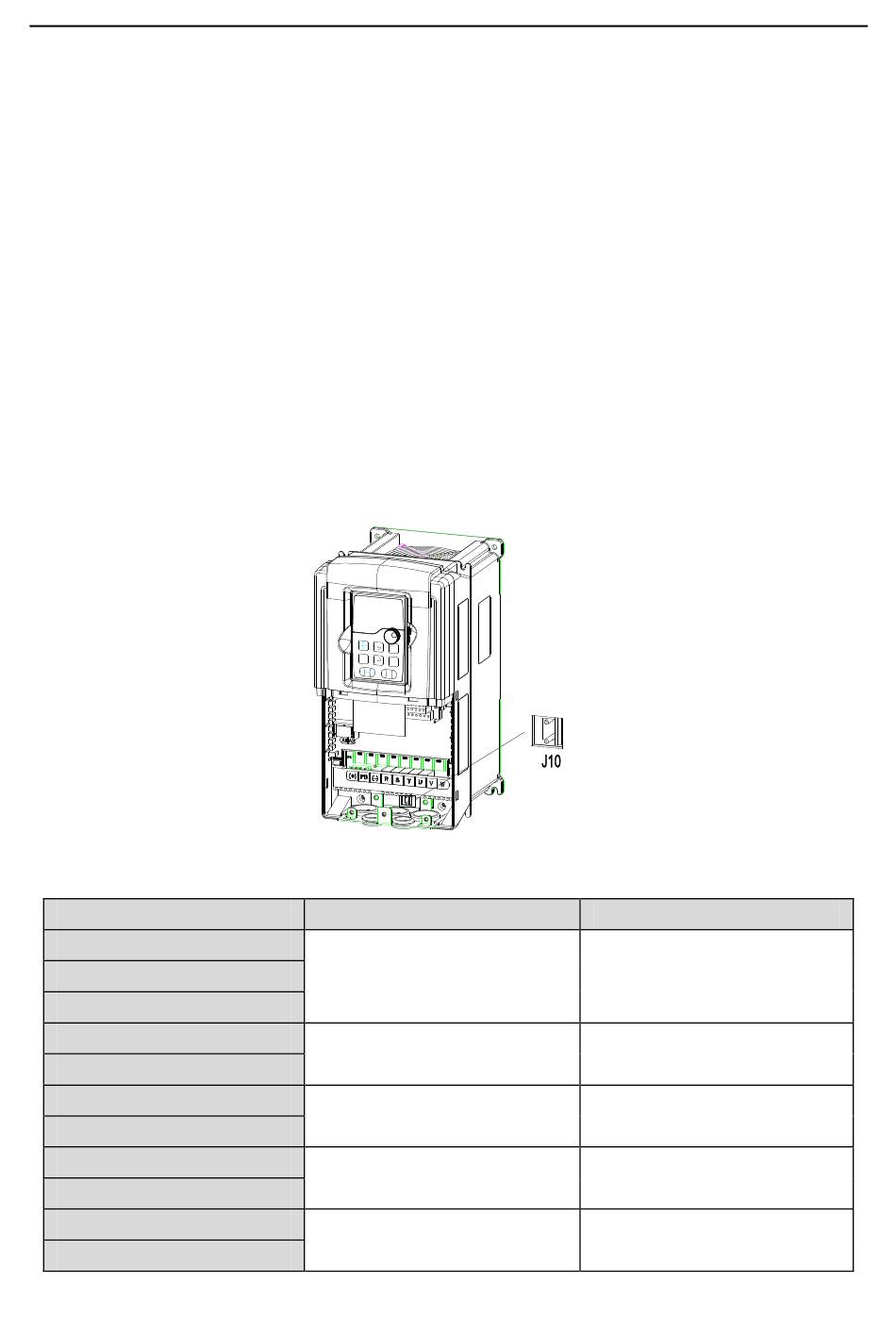

J10 is not connected by default for the110G/132P and lower models. If it is needed to fulfill the
requirements of C3 class, users can connect jumper J10 which is put in the same bag with the
operation manual.
The 132G/160P and higher models can satisfy C3 requirements and J10 is connected by default.
Note: Disconnect J10 when either of below situations occurs:
1. EMC filter is suitable for the neutral-grounding grid system. If it is used in IT grid system (neutral
point is not grounded), disconnect J10;
2. During configuring residual current circuit-breaker, if tripping occurred during startup, disconnect
J10.
Filters for Goodrive200A series VFDs
VFD model
GD200A-0R7G-4
GD200A-1R5G-4
GD200A-2R2G-4
GD200A-004G/5R5P-4
GD200A-5R5G/7R5P-4
GD200A-7R5G/011P-4
GD200A-011G/015P-4
GD200A-015G/018P-4
GD200A-018G/022P-4
GD200A-022G/030P-4
GD200A-030G/037P-4
Input filter
FLT-P04006L-B
FLT-P04016L-B
FLT-P04032L-B
FLT-P04045L-B
FLT-P04065L-B
-168-
Peripheral options and parts
Output filter
FLT-L04006L-B
FLT-L04016L-B
FLT-L04032L-B
FLT-L04045L-B
FLT-L04065L-B
