4.2.3 Installation mode

There are three kinds of installation modes based on different VFD dimensions.
1. Wall-mounting: applicable to 380V 315kW and lower, and 660V 355kW and lower
2. Flange-mounting: applicable to 380V 200kW and lower, and 660V 220kW and lower
3. Floor-mounting: applicable to 380V 220–3000kW, and 660V 250–3000kW
(1) Mark the position of the Mounting hole. See appendix for the position of Mounting hole.
(2) Mount the screws or bolts onto the designated position.
(3) Put the VFD on the wall.
(4) Tighten the fixing screws on the wall.
Note:

In flange-mounting mode, the flange-mounting plate is a must for the 380V 1.5–110kW VFD
models, while the 380V 132–200kW and 660V 22–220kW models need no flange-mounting
plate.

The optional installation base is available for the 380V 220–315kW and 660V 250–355kW VFD
models. The base can hold an input AC (or DC) reactor or an output AC reactor.

4.2.4 Single-product installation

A
B
A
Wall-mounting

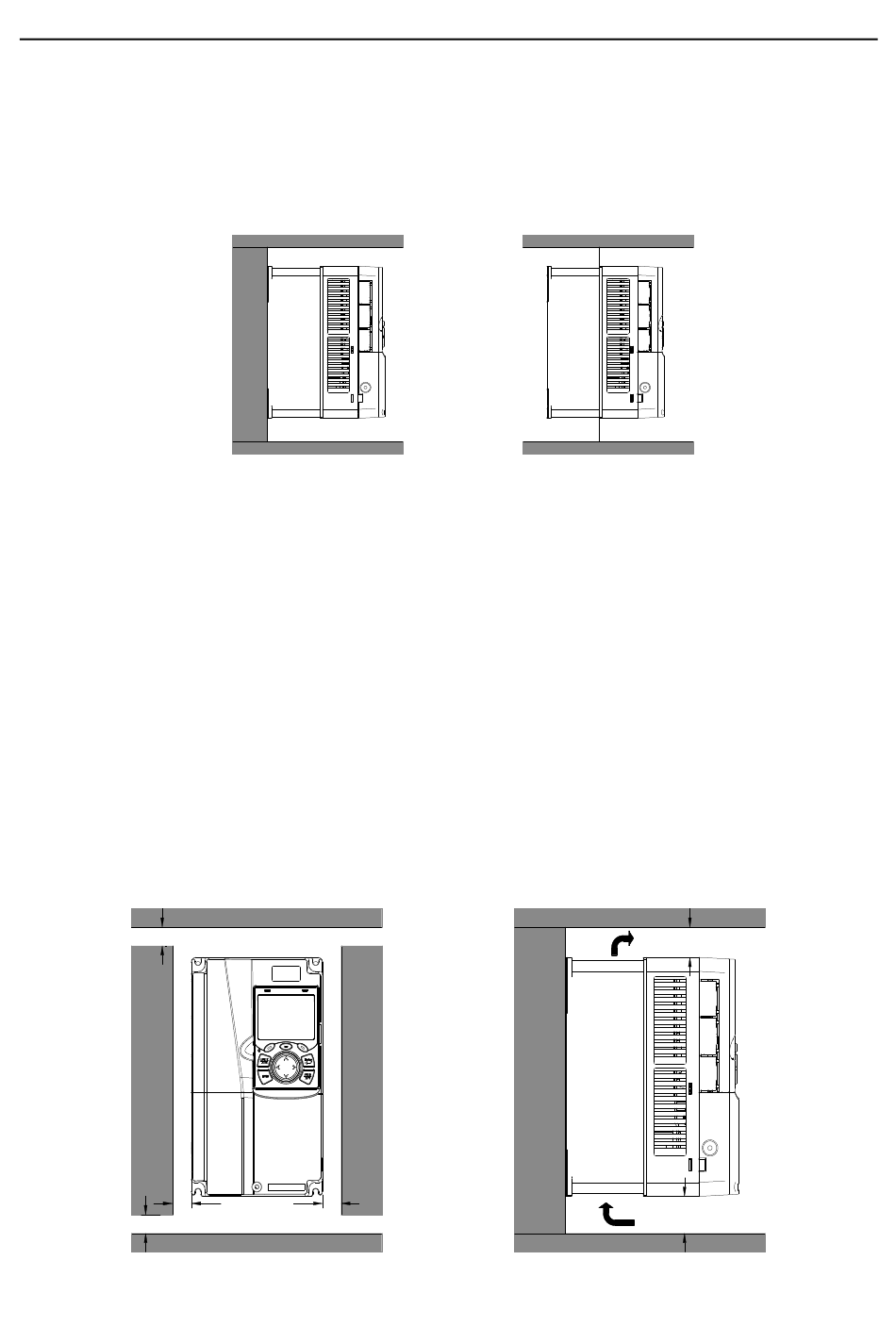

Figure 4-2 Installation mode
B
Figure 4-3 Single-product installation
Flange-mounting
-19-
Installation guidelines
C
Hot air
Cold air
C
