INVT Goodrive350 Series Operation Manual page 49

Goodrive350 series high-performance multifunction VFD
16:02:35 Fwd Local Ready
Set Freq
50.00
P17.00 Hz
DC bus voltage
540.0
P17.11 V
HDIB/A/S4/3/2/1
000000
P17.12
Parameter About
The keypad menu setup is shown as follows.
Level 1
Parameter groups
GD350 16:02:35
Parameter groups
User defined parameters
State monitoring
Motor parameter autotune
Copy parameter/Restore default
System settings
Menu Back
16:02:35
Parameter groups
User defined parameters
State monitoring
Motor parameter autotune
Copy parameter/Restore default
System settings
Back
16:02:35
Parameter groups
User defined parameters
State monitoring
Motor parameter autotune
Copy parameter/Restore default
System settings
Back
16:02:35
Parameter groups
User defined parameters
State monitoring
Motor parameter autotune
Copy parameter/Restore default
System settings
Back
16:02:35
Parameter groups
User defined parameters
State monitoring
Motor parameter autotune
Copy parameter/Restore default
System settings
Back
16:02:35
Parameter groups
User defined parameters
State monitoring
Motor parameter autotune
Copy parameter/Restore default
System settings
Back

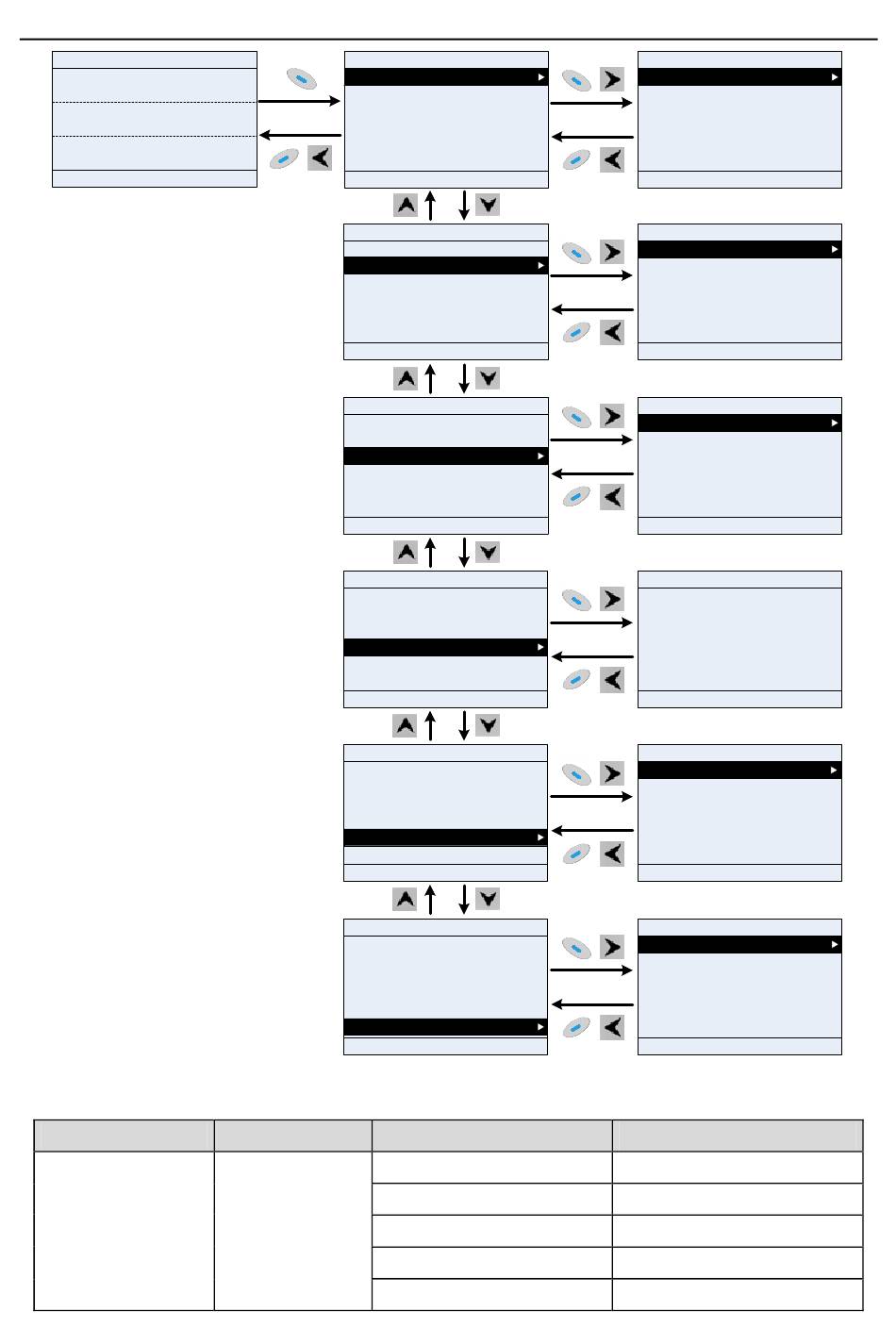

Figure 5-9 Enter/exit menu diagram 2
Level 2
P00: Basic Function
P01: Start/stop control
Basic
P03: Motor1 Vector Ctrol
parameters
P04: V/F Control
P07: HMI
Fwd Local Ready GD350
Home Sele
Fwd Local Ready GD350
Home Sele
Fwd
Local Ready GD350
Home Sele
Fwd Local Ready GD350
Home Sele
Fwd Local Ready GD350
Home Sele
Fwd Local Ready
GD350
Home Sele
Level 3
-40-
Basic operation guidelines
16:02:35 Fwd Local Ready
Basic parameters
Motor and encoder parameters
Factory parameters
Terminal function parameters
Optional card parameters
Factory customized parameters
Back Edit
16:02:35 Fwd Local Ready
P00.00: Speed Ctrl Run Cmd
P00.01: Run Cmd Channel
P00.02: Comm Cmd Channel
P00.03: Max Output Freq
P00.04: RunFreq Up Limit
P00.05: RunFreq Low Limit
Back Edit
16:02:35
Fwd Local Ready
State monitoring parameters
Fault types
Fault recording parameters
Clear fault records
Modified parameters
Customize Home parameters
Back Home
Fwd
16:02:35 Local Ready
Ensure motor nameplate parameters are set
correctly.
Back Home
Fwd
16:02:35 Local Ready
MemArea
1: BACKUP01
MemArea
2: BACKUP02
MemArea
3: BACKUP03
Restore default (excl motor para)
Restore default (test mode)
Restore default (incl motor para)
Back Edit
16:02:35 Fwd
Local Ready
Language
Time/date
Backlight brightness
Backlight time
Enable power-on setup wizard
Power-on setup wizard
Back Home
Level 4
P00.xx
P01.xx
P03.xx
P04.xx
P07.xx
GD350
Sele
GD350
Sele
GD350
Sele
GD350
OK
GD350
Sele
GD350
Sele
