5.4.3 Adding parameters to the parameter list displayed in stopped/running state

You can choose Menu > State monitoring, choose a submenu, and enter a specific function group
and then a specific function code to add the parameter to the list of parameters displayed in stopped
state or parameters displayed in running state.
16:02:35
Fwd Local Ready
P17.01：OutpFreq
P17.00：Set Freq
P17.11：DC Bus Volt
P17.03：Outp Volt
P17.04：Outp Cur
P17.05：Motor Speed
Back Add
16:02:35
Fwd Local Ready
P17.01：OutpFreq
P17.00：Set Freq
P17.11：DC Bus Volt
P17.03：Outp Volt
P17.04：Outp Cur
P17.05：Motor Speed
Back Add
Aftering selecting a specific function code, press
and press key,
included in the list of parameters displayed in stopped state or list of parameters displayed in running
state, the parameter added will be at the end of the list; if the parameter is already in the list of
parameters displayed in stopped state or list of parameters displayed in running state, the addition
operation will be invalid. If
"Addition" interface, it will return to monitoring parameter list menu.
Part of the monitoring parameters in P07 HMI group can be added to the "parameter displayed in stop
state" list or "parameter displayed in running state" list; all the parameters in P17, P18 and P19 group
can be added to the "parameter displayed in stop state" list or "parameter displayed in running state"
list.
Up to 16 monitoring parameters can be added to the list of parameters displayed in stopped state;
and up to 32 monitoring parameters can be added to the list of parameters displayed in running state.

5.4.4 Adding parameters to the user defined parameter list

You can choose Menu > Parameter groups, choose a submenu, and enter a specific function group
and then a specific function code to add the parameter to the user defined parameter list.
16:02:35
GD350
Stopped-state parameters
Running-state parameters
OK Back
16:02:35
GD350
Stopped-state parameters
Running-state parameters
OK Back

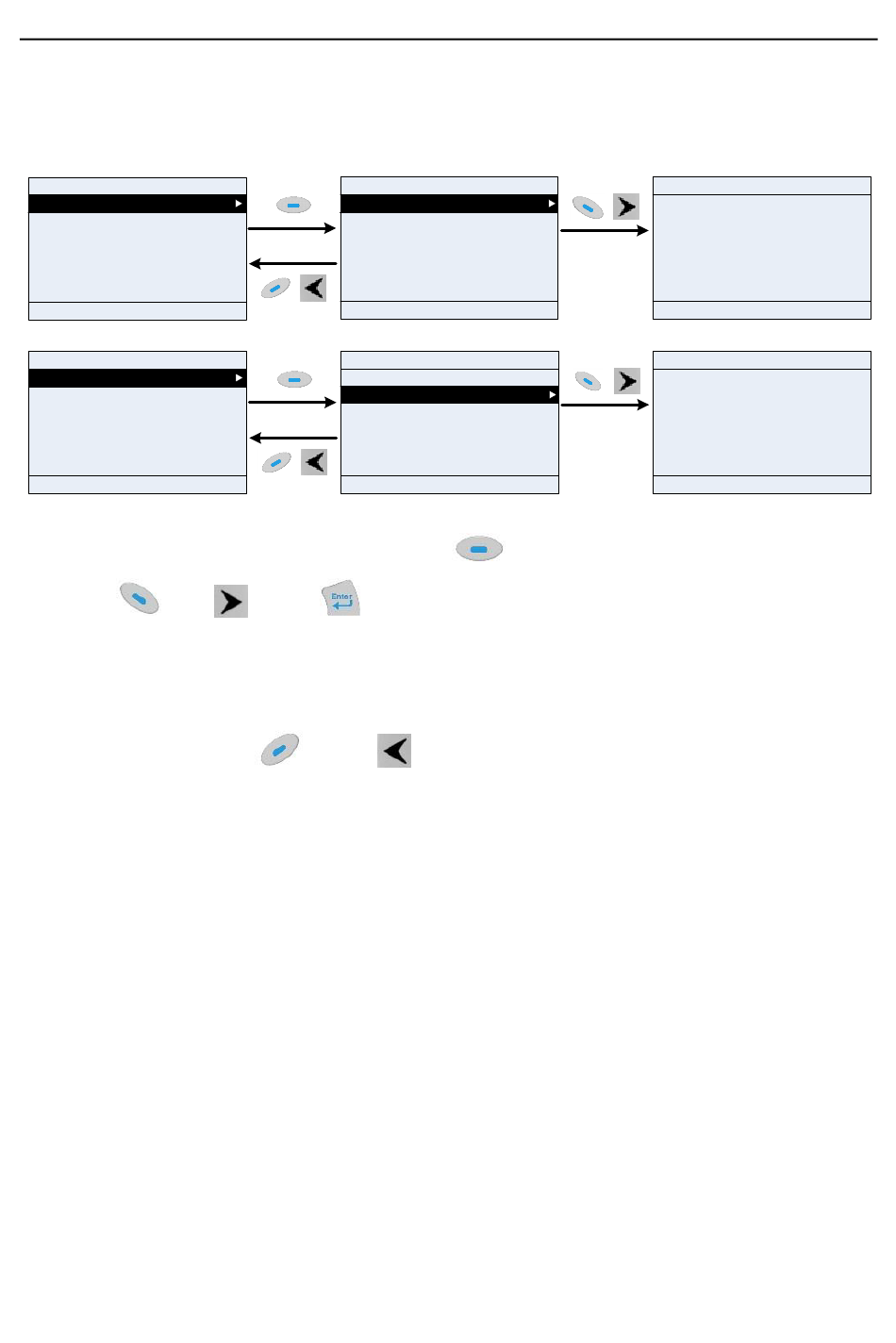

Figure 5-13 Adding parameter diagram 1
key or
key or
Fwd
Local Ready GD350
Home Sele
Fwd
Local Ready GD350
Home Sele
key to enter parameter addition interface,
key to confirm the addition operation. If this parameter is not
key is pressed without selecting addition operation in
-45-
Basic operation guidelines
16:02:35 Fwd
Local Ready
Sure to add to Stopped-state
parameters?
Back Home
16:02:35 Fwd
Local Ready
Sure to add to Running-state
parameters?
Back Home
GD350
OK
GD350
OK
