Goodrive350 series high-performance multifunction VFD
Note: The min. dimension of B and C is 100mm.
4.2.5 Multiple-product installation
A
B
A
Note:
When you install VFDs in different sizes, align the top of each VFD before installation for the
convenience of future maintenance.
For clearances B, D and C, each must be at least 100mm.
D
B

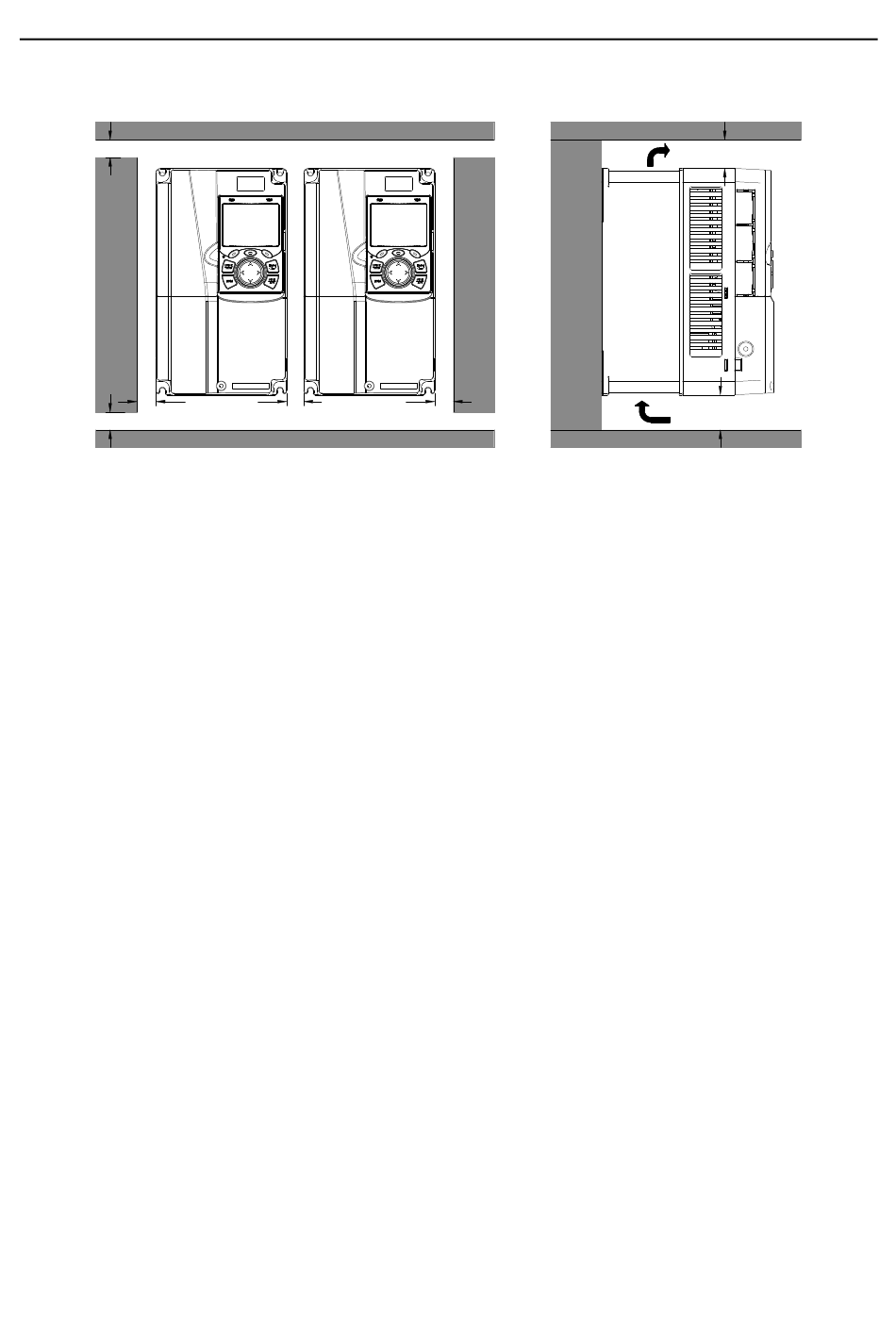

Figure 4-4 Parallel installation
-20-
Installation guidelines
Hot air
C
Cold air
C
